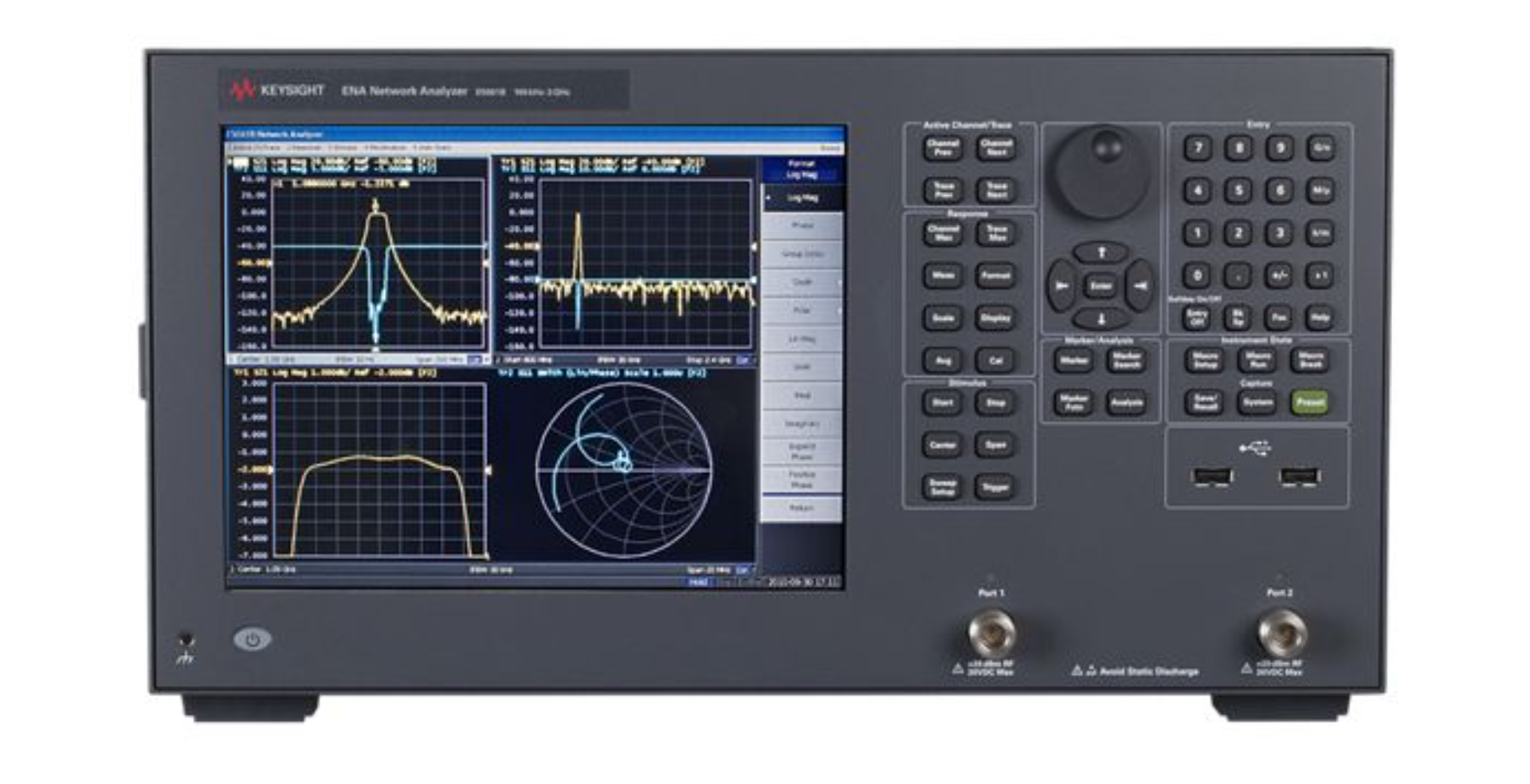

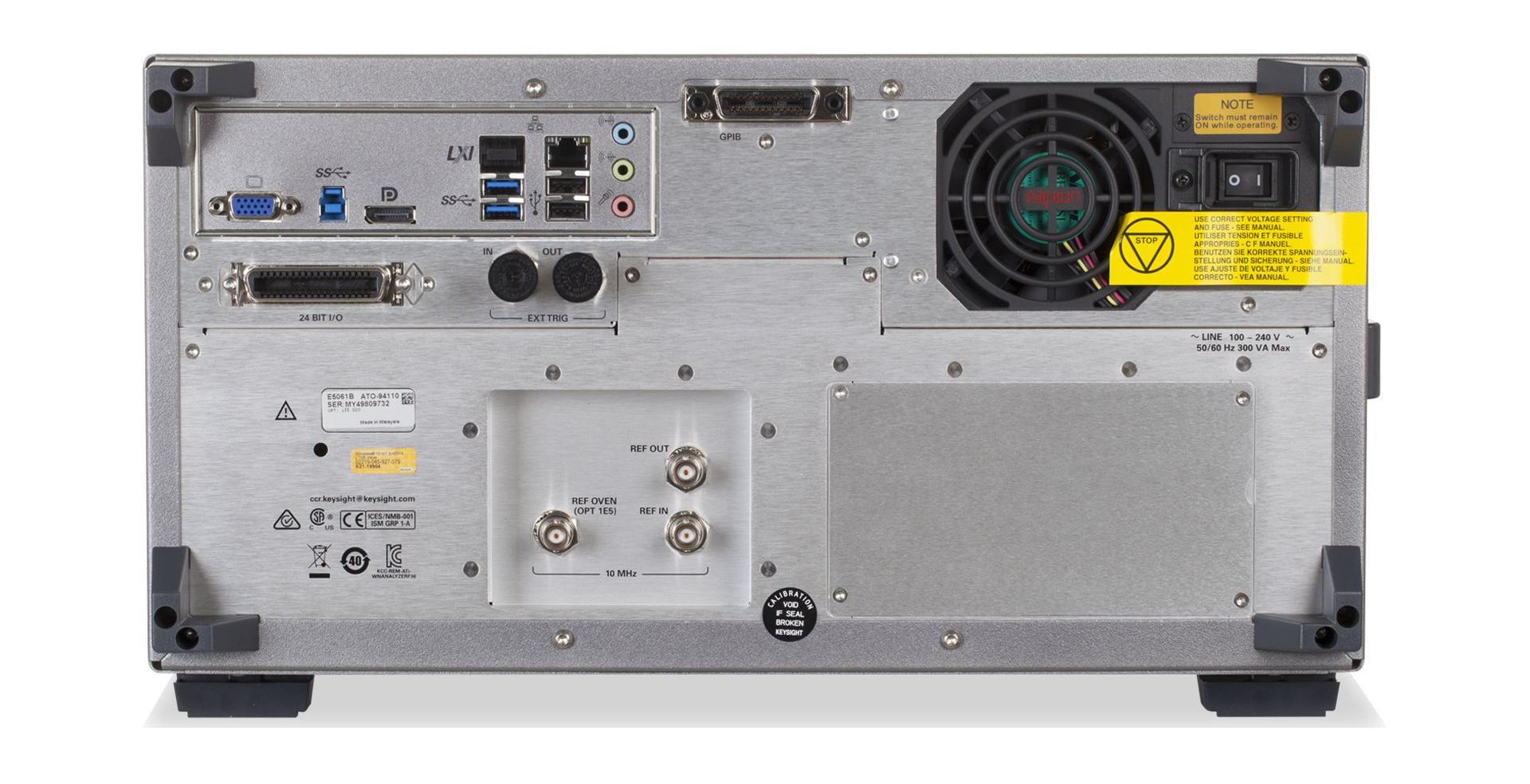

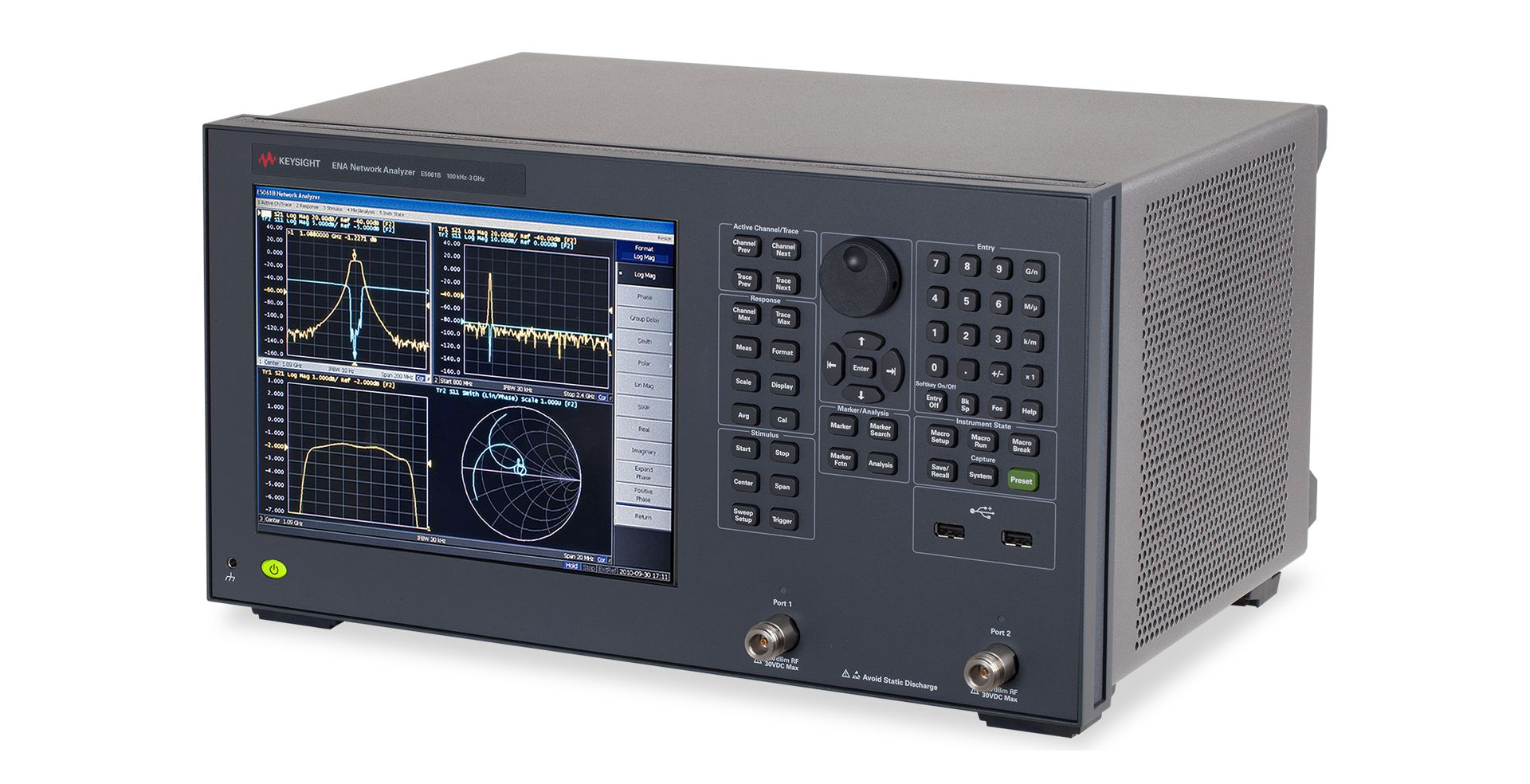

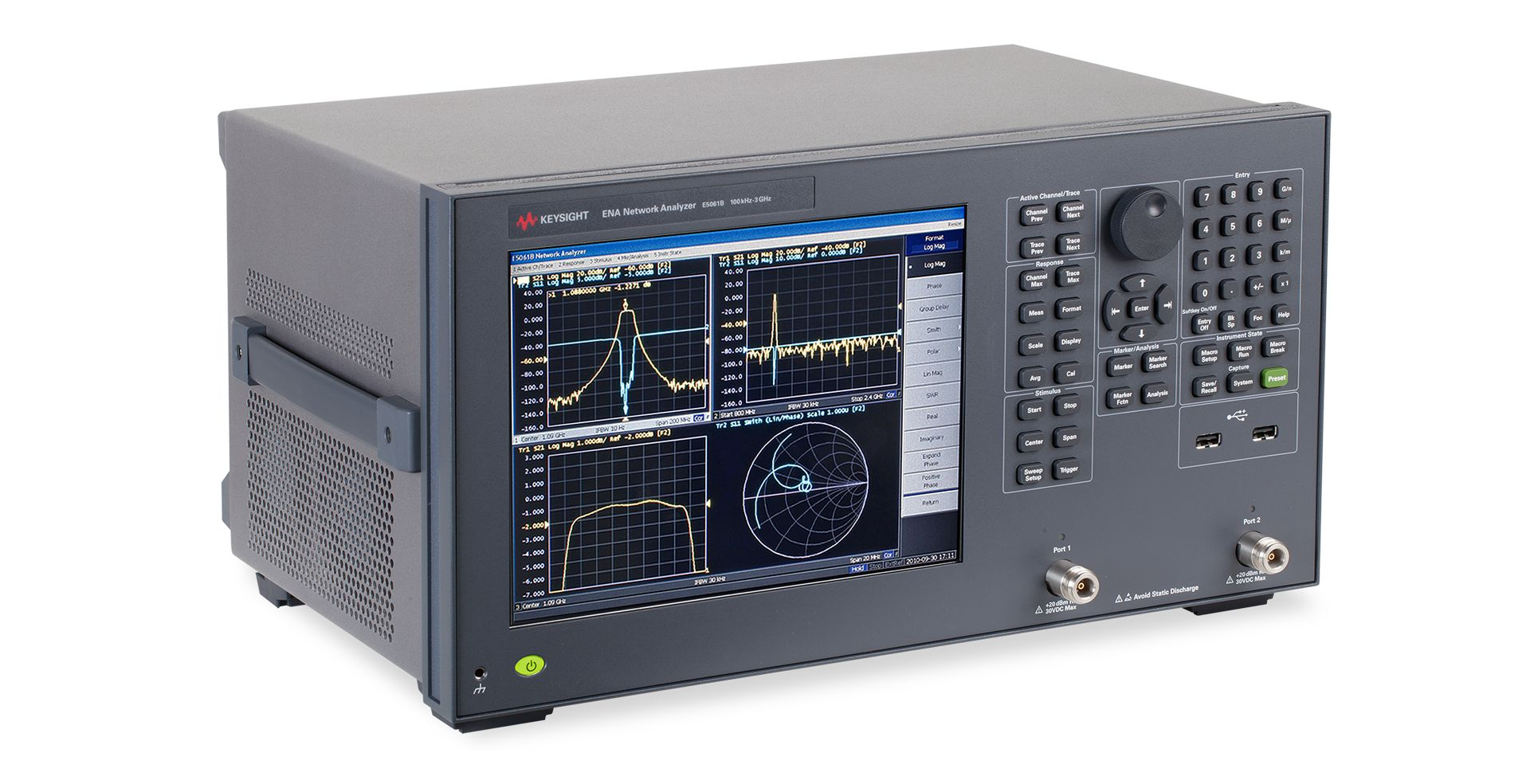

E5061B ENA Vector Network Analyzer
TF:
001728-HW-keysight-028
Overview
Solid performance in an enhanced platform
| Applications: | S-Parameters Distance-To-Fault Return Loss Insertion Loss/Gain LF Circuits (5 Hz) |
| Components: |
Amplifiers Resonators DC-DC Converters/PDNs Antenna/Coil/RFIDs Filters LCR Components |
| Dynamic Range: | 120 dB |
| Instrument Type: | Benchtop |
| Maximum Number of Sources: | 1 |
| Number of Built-In Ports: | 2 |
| Output Power: | 10 dBm |
| Type: | Benchtop |
| VNA Type: | Benchtop |
| Best Speed at 201 Point, 1 Sweep: | 9 ms |
| Configurable Test Ports: | 0 |
| Form Factor: | Benchtop |
| Maximum frequency: | 3 GHz |
| Maximum Output Power: | 10 dBm |
| Number of Internal Sources: | 1 |
| Trace Noise: | 0.005 dB rms |
| VNA Series: | ENA |
The Keysight E5061B addresses a broad range of measurement needs of electronic components and circuits from low to high frequencies. The E5061B is the ideal solution for applications in industries such as wireless communications, aerospace and defense, computer, medical, automotive, CATV, plus many more.
