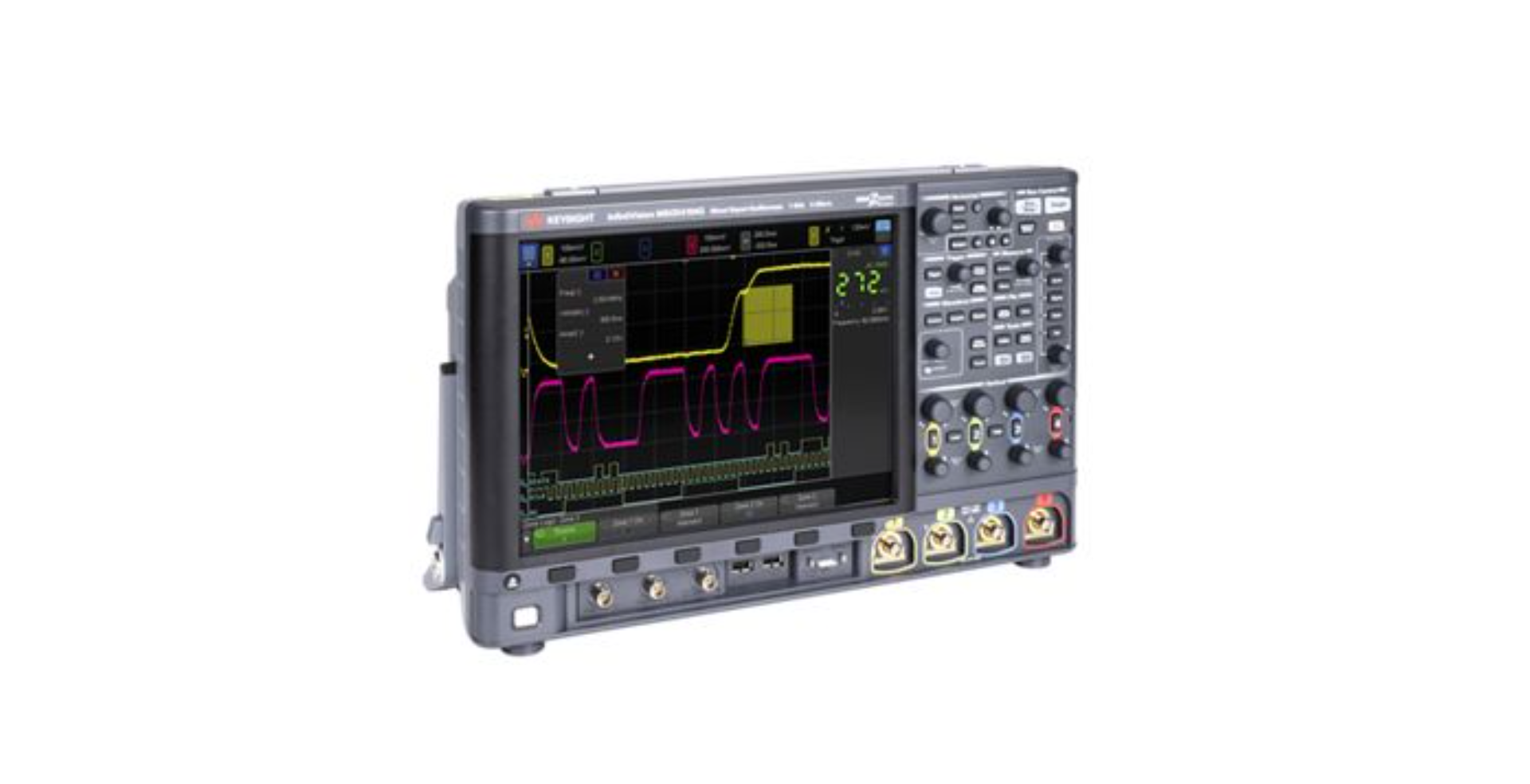

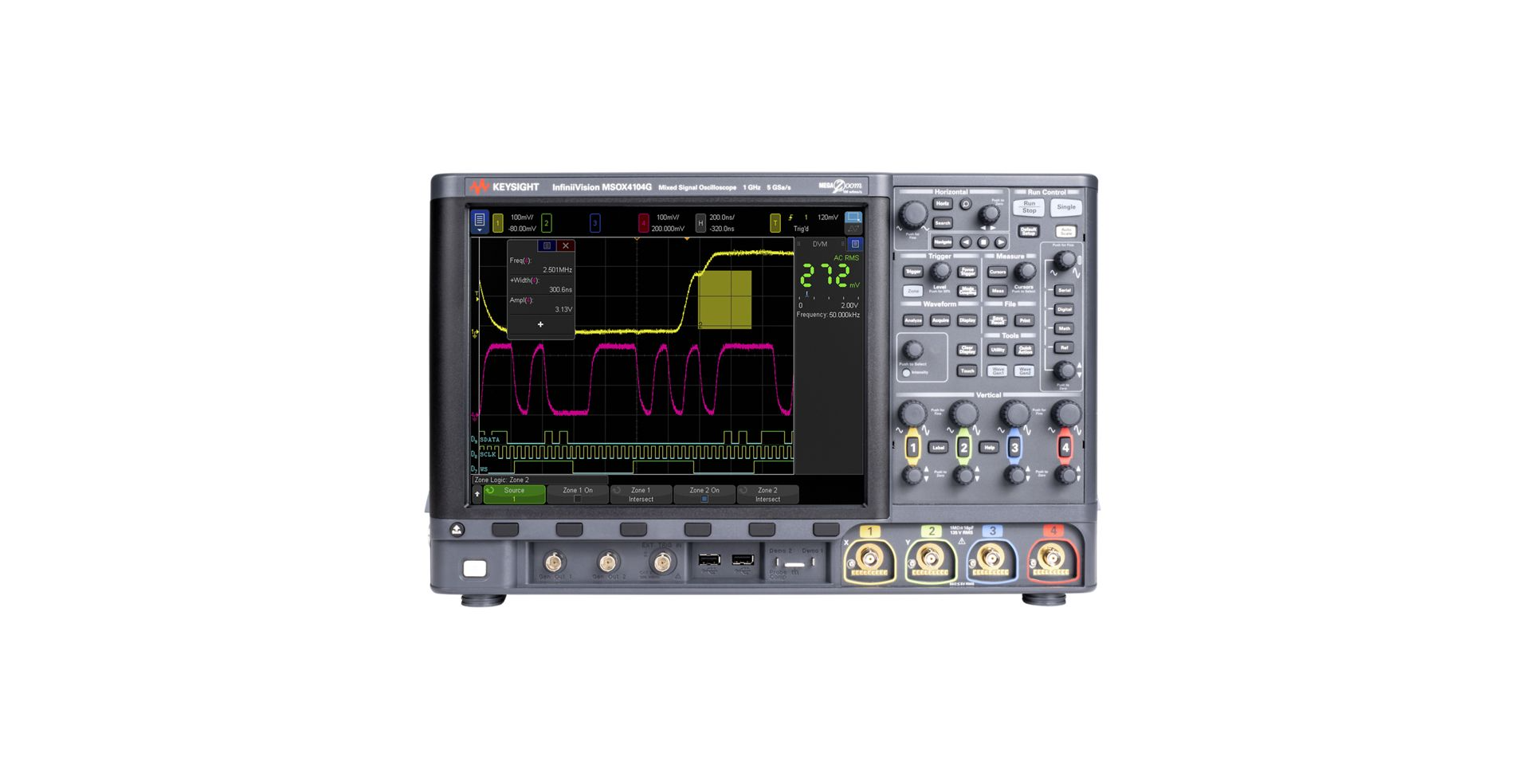

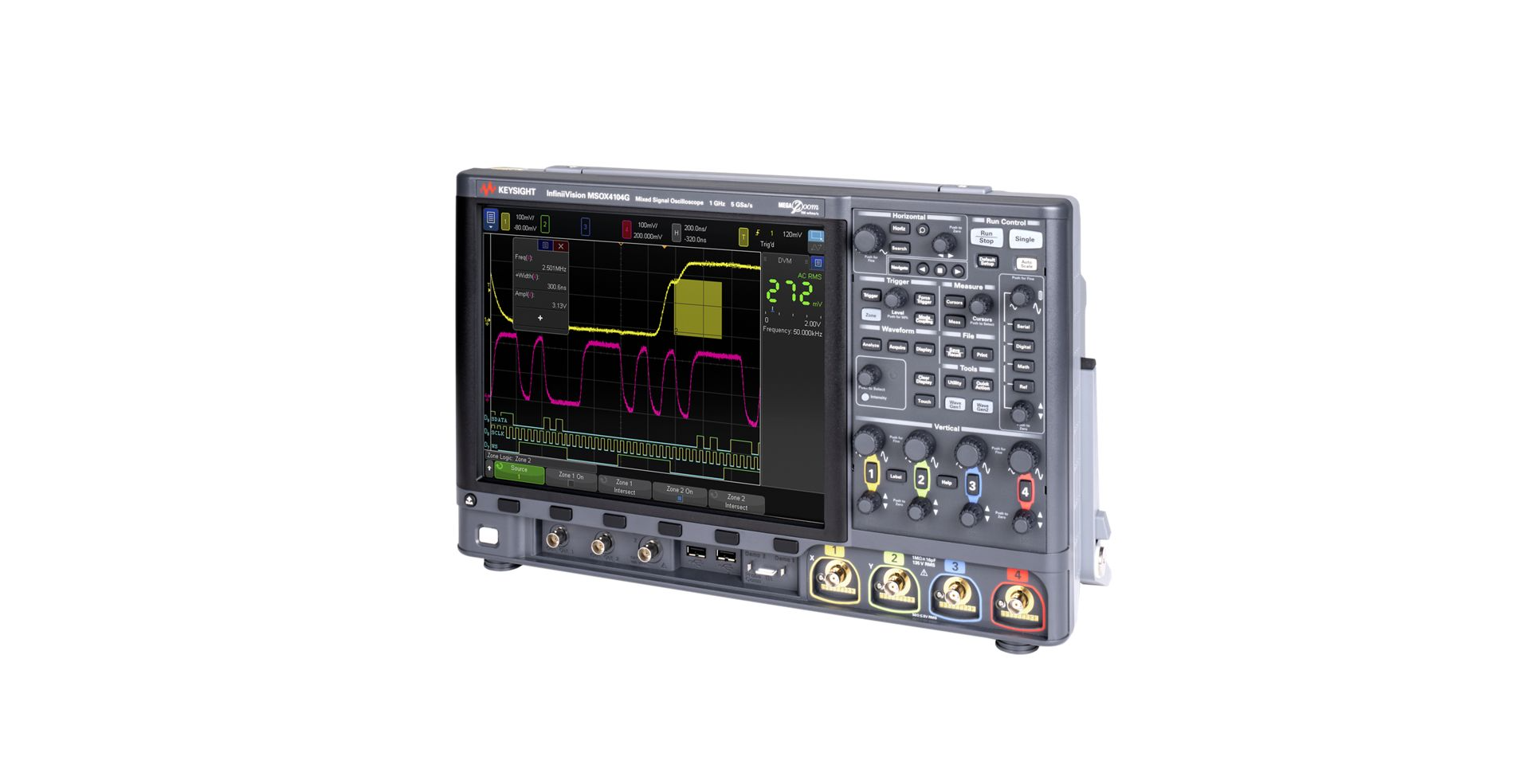

DSOX4154G Oscilloscope: 1.5 GHz, 4 Analog Channels
-
NG # 001710-HW-keysight-010
Manufactured by:
This
seller generally responds in under 48 hours
12.1-inch display, capacitive touch screen technology, InfiniiScan Zone touch triggering, 1-million-waveforms/sec update rate, MegaZoom IV smart memory technology, and standard segmented memory
Specification
- 1.5 GHz
- 4 analog channels
- Easily view signals on the large 12.1-inch capacitive touch screen
- Isolate signals in seconds with exclusive Zone touch triggering
- Capture more data with 4 Mpts memory and standard segmented memory
- See more signal detail with 1,000,000 wfms/s update rate
- Expand your measurement capabilities with full upgradability: add digital channels, dual-channel 20 MHz arbitrary waveform generator, 3-digit DVM, serial trigger and analysis, and mask testing at any time
- Embedded Software Package (D4000GENB)
- Waveform and measurement histograms
- Dual arbitrary waveform generators
- Frequency response analysis
- KeysightCare technical support
- 3-year warranty (90 days for unserialized accessories such as passive probes)
- Certificate of Calibration, 2-year calibration interval
- One N2894A 700 MHz passive probe (10:1 attenuation) per channel
- Localized interface, front panel overlay and built-in help system in English, Chinese (simplified and traditional), French, German, Italian, Japanese, Korean, Portuguese, Russian, and Spanish
- Localized power cord
- Front panel cover
- Documentation CD containing localized user’s guide, service guide, and programmer’s manual
Description
The 4000 X-Series boasts 12.1-inch display, capacitive touch screen technology, InfiniiScan Zone touch triggering, 1-million-waveforms/sec update rate, MegaZoom IV smart memory technology and standard segmented memory.
