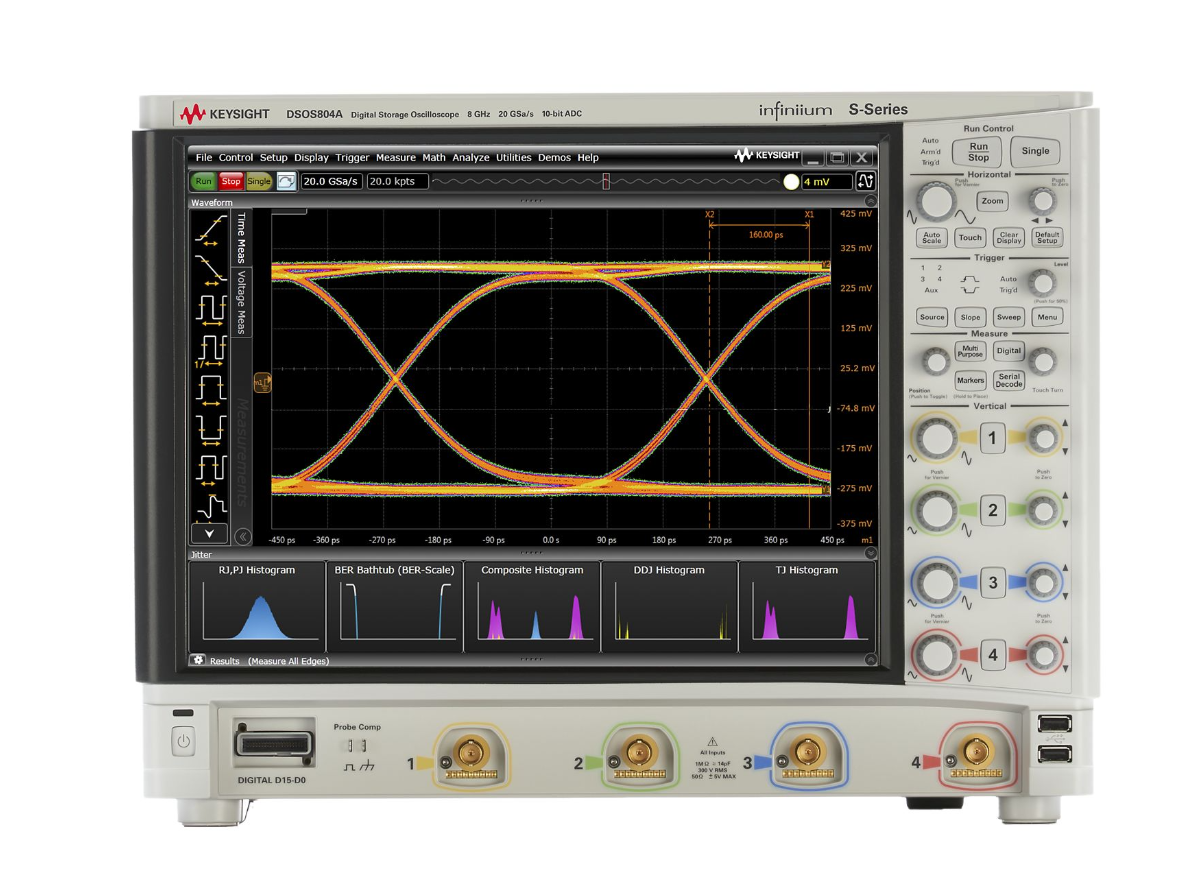

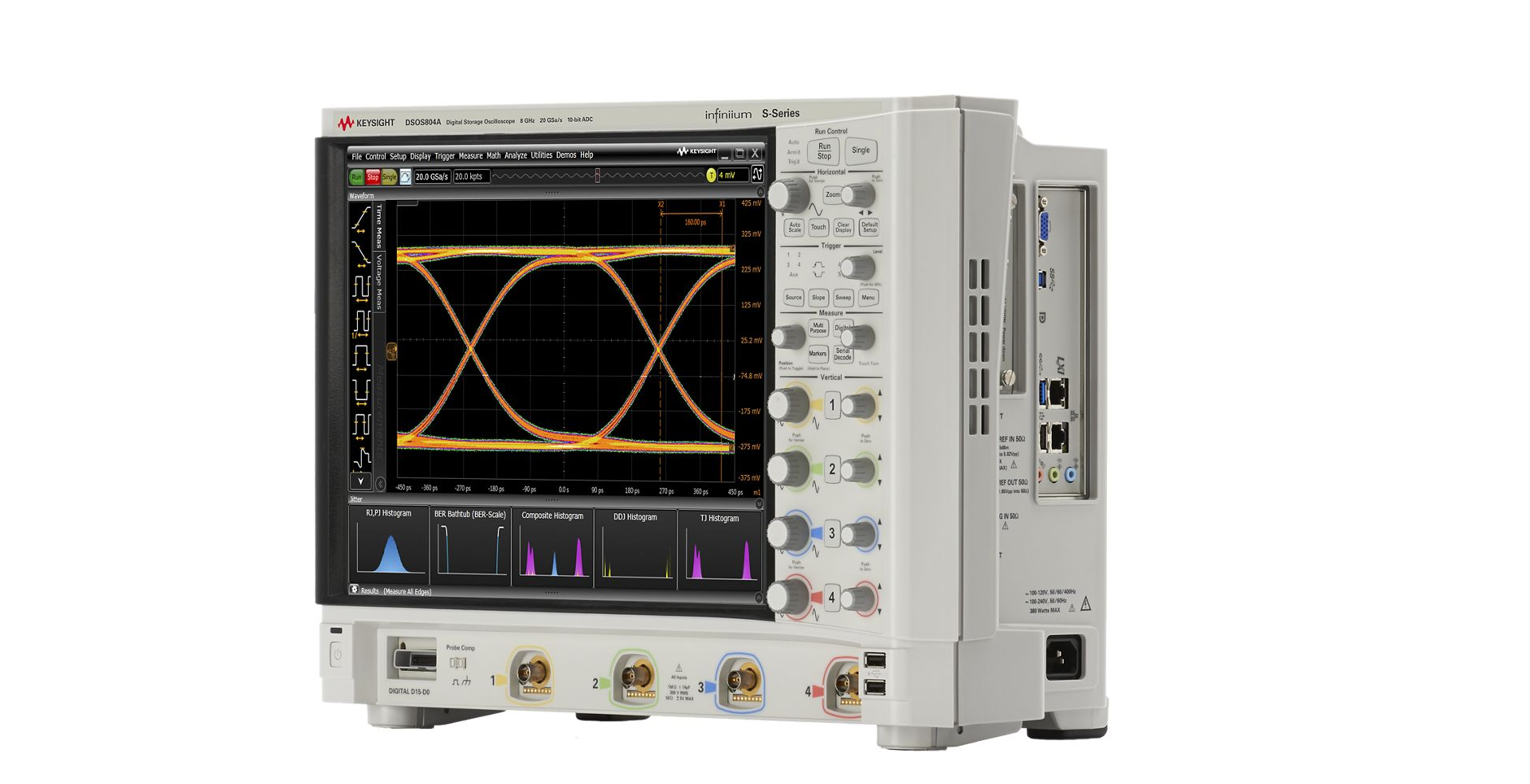

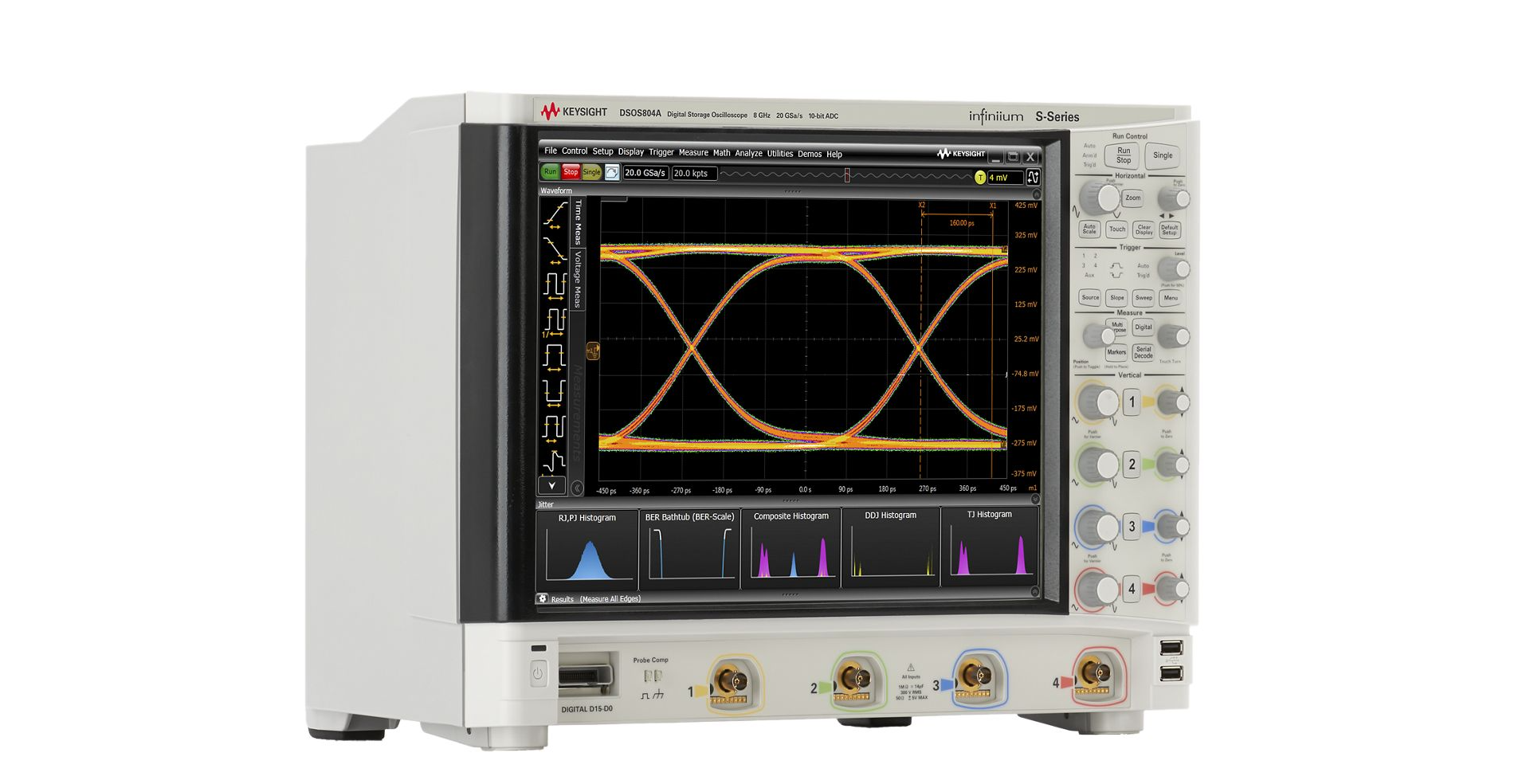

The DSOS804A S-Series oscilloscopes have 8 GHz of bandwidth, a 15” XGA capacitive touch screen, and a 10-bit analog-to-digital converter

Specification

8 GHz bandwidth
4 analog channels
Achieve up to 16 bits of vertical resolution with our advanced system architecture
Capture a longer signal trace with 20 GSa/s maximum sample rate and 100 Mpts/channel of standard memory
Get superior signal integrity with an average system effective number of bits (ENOB) of 8.1 bits at full bandwidth
Gain increased usability with the multi-touch supported 15-inch capacitive touch screen and solid state drive for fast boot and reliability
Improve your testing with a wide range of protocol, compliance, and analysis software
Four N2873A 500-MHz passive probes
Probe accessory pouch
Keysight I/O libraries suite
Localized power cord, front panel cover
8 GHz BNC calibration cable
Keyboard and mouse
User guide and programmer’s guide ship on oscilloscope drive
Service guide available on Keysight.com

Description

The DSOS804A S-Series oscilloscopes have 8.0 GHz of bandwidth, a 15” XGA capacitive touch screen, and a 10-bit analog-to-digital converter.
