Johnson Controls Differential Pressure Transmitter
TF:
005058-HW-JOHNSON-058
- Integral pressure transmitter with dead ended input ports eliminates an inline filter and maintenance; prevents sensor contamination
- 0 to 1.5 in. Water Column (WC) Input Pressure Range satisfies requirements for virtually all terminal box applications
- .5 to 4.5 in. Water Column (WC) Input Pressure Range provides compatibility with wide range of Heating, Ventilation, Air Conditioning (HVAC) controllers
- No warmup period allows for immediate commissioning after power-up
- Capacitive sensor technology for long-term stability and accuracy
- 4 VDC output span replaces DPT-200-2 when used as recommended

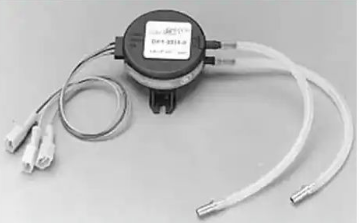

The DPT-2015 Differential Pressure Transmitter senses differential pressure in pressure independent Variable Air Volume (VAV) applications. It sends an analog signal that is proportional to velocity pressure to a VAV controller. The DPT-2015 is available mounted to an M9104 or M9106 Electric Non-spring Return Actuator or to the Johnson Controls VAV controller for reliable damper positioning in closed-loop applications.
