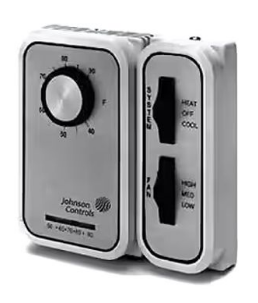

Fan Coil Thermostat T-46 Series
TF:
005076-HW-JOHNSON-076
Overview
The T46 Series Thermostat is used to control line voltage, fan coil, and heating zone valves on heating, cooling, and combination heating and cooling systems.
- Knob or concealed setpoint adjustment
- Low and high temperature dial stops that are concealed and adjustable throughout setpoint range
- Can be set for a locked dial
- Narrow differential without the need for anticipator
- Standard internal dual Celsius and Fahrenheit scales
- Switch mechanism and wiring connections go into the switch box to isolate electrical circuits from the sensing element
- Mounts on a standard double outlet box
- Separable mounting plate allows easy mounting and wiring without removing thermostat cover
- Locking cover reduces unauthorized tampering
- High-impact plastic enclosure
- Smooth action multi-position slide switches for dependable service
Models are available with single-pole, single-throw (SPST) or single-pole, double-throw (SPDT) contact action for standard duty (nominal 1/4 hp, 6 A non-inductive) applications. Thermostats are available with or without fan speed control or built-in thermometers. Various system switch combinations are available, including fan speed selection.
