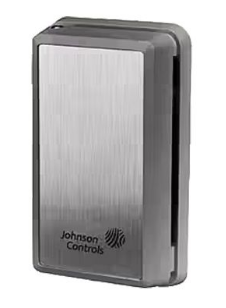

Energy Manager Heating Cooling Low Volume Output Thermostat T-4600 Series
-
NG # 005075-HW-JOHNSON-075
Manufactured by:
This
seller generally responds in under 48 hours
Specification
- Available in these models - Dual Direct, Dual Reverse and Direct and Reverse
- Mounts vertically
- Available in Fahrenheit or Celsius models
- Two outputs
- Adjustable sensitivities
- Adjustable set points
- Sensitivity Adjustable from 1 to 3 psig/°F (12 to 38 kPa/°C)
- Factory set at approximately 2.5 psig/°F (32 kPa/°C)
- Flow Capacity 45 SCIM (12 mL/s) with .007 in. Restrictor 25 SCIM (7 mL/s) with .005 in. Restrictor
- Air Consumption 50 SCIM (14 mL/s) or 90 SCIM (24 mL/s) depending on Restrictor
- Supply Pressure 13 to 25 psig (91 to 175 kPa)
- Nominal 20 psig (140 kPa)
- Dial Range 55 to 85°F or 12 to 28°C
- Air Connections Two Restricted Supply/Output for Heating and Cooling
Description
The T-4600 Thermostat is a low volume output, energy managing, heating-cooling thermostat. The independent setpoints can result in a deadband to encourage energy conservation by eliminating heating and cooling overlap.
