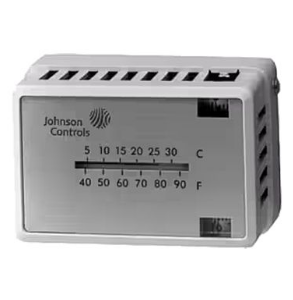

Dual Temperature Thermostat T-4506 Series
-
NG # 005073-HW-JOHNSON-073
Manufactured by:
This
seller generally responds in under 48 hours
Specification
- Available in Direct Acting (DIR) and Reverse Acting (REV) models
- Includes Fahrenheit dial
- Direct acting available in vertical or horizontal model
- Reverse acting available in horizontal model
Available with optional manual indexing switch that permits you to restore the day temperature of the individual thermostat without affecting the other system thermostats - Indexing switch can be unlatched manually or will automatically reset with the day cycle
- Sensitivity Adjustable from .75 to 4.0 psig/°F (9 to 50 kPa/°C)
- Factory set at approximately 2.5 psig/°F (32 kPa/°C)
- Flow Capacity 400 SCIM (107 mL/s)
- Air Consumption 20 SCIM (5 mL/s)
- Supply Pressure 13 to 25 psig (91 to 175 kPa) Nominal Day 15 psig (105 kPa) Nominal Night 20 psig (140 kPa)
- Dial Range 55 to 85°F (Two Dials)
- Air Connections Two (Supply and Output)
- Special Feature Optional Manual Indexing Switch
Description
The T-4506 Thermostat is a high volume output, dual temperature, dual dial thermostat. The T-4506 provides individual day and night, or two set point temperature control.
