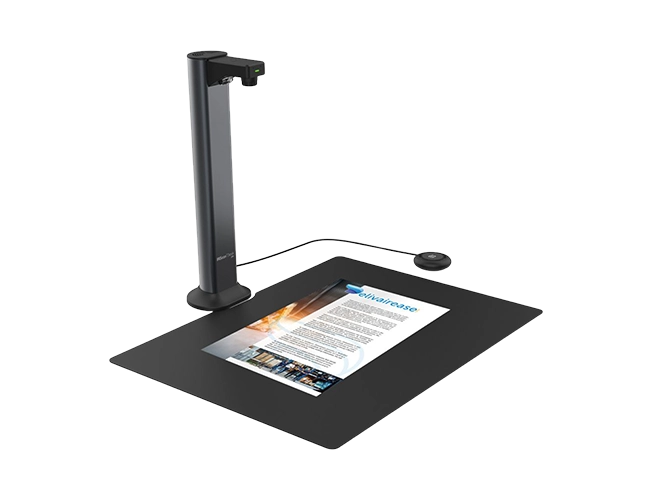

IRIScan Desk 7 Pro
-
NG # 004206-HW-IRIS-006
Manufactured by:
This
seller generally responds in under 48 hours
The brand new IRIScan Desk 7 Pro: captures documents and books with high clarity, thanks to its super-high resolution and high frame rate. Its flexible short-arm design allows easy scanning from any angle. With full lighting coverage and Curved Flattening technologies, it ensures perfectly lit, distortion-free images.
Specification
Quick reference guide
| Product name | IRIScan Desk 7 Pro |
|---|---|
| SKU | 464415 |
| EAN code | 5420079901339 |
| UPC-A code | 765010783557 |
Box Information
| Box Size (H x L x D): | 340 x 441x 396 mm / 13.39 x 17.36 x 15.59 inches |
|---|---|
| Box Weight: | 1.86 kg / 4.10 lbs |
| IRIScan Desk 7 (Business & Pro) size (H x L x D): | 118 x 98 x 370 mm / 15.75 x 7.09 x 7.09 inches |
| IRIScan Desk 7 weight: | 0.66kg / 1.46 lbs |
| Box content | IRIScan Desk 7 USB cable USB C to A Adapter Scan pad Getting started guide External USB capture hand button External USB capture foot pedal A/C power adapter |
Scanner specifications
| Mode Scan | Color, Color (Enhanced), Grayscale, B/W (Document) |
|---|---|
| Image Sensor | CMOS 18MP 5696 x 4272 pixels (24MP) for Desk 7 Business CMOS 4912 x 3680 pixels (18MP) for Desk 7 Pro |
| Resolution Interpolated (SW) | 10680 x 8010 (85MP) - 600dpi |
| Resolution Optical (HW) | 5696 x 4272 pixels (24MP) for Desk 7 Business 4912 x 3680 pixels (18MP) for Desk 7 Pro |
| Color Depth Input/Output | 24-bit |
| Scanning Width | 44 cm /17.3 inch (at output 5696 x 4272) for Desk 7 Business 44 cm /17.3 inch (at output 4912 x 3680) for Desk 7 Pro |
| Digital Zoom | Software Zoom up to x300 |
| Pictures & Scan Per Second | 1sec |
| Arm Structure | Fixable short arm |
| Lighting | White LED Lamp (Max. 400 Lux) |
| Connections & Connectors | USB Type-C |
| Video Compression | MJPG, YUY2 |
| Focus | Fix Focus |
| OCR Languages Supported | 138 powered by IRIS technology |
| User Interface Languages | Arabic, Chinese, English, Dutch, German, French, Italian, Polish, Spanish, Portuguese, Korean, Hebrew, Russian, Nepali, Danish, Czech, Romanian |
| Document Scanning Format | JPG, PDF, PDF searchable, PDF-A, Office |
| Exporting Video Format | AVI, MPEG, FLV, WMV |
| Book Export Format | E-book: EPUB & MPG3 |
| Scanning Size | ≤A3: 420 × 297 mm / 16.5 × 11.7 inches |
| Scan To Cloud | FTP Server, Dropbox, OneDrive, eMail |
| Distance Learning Support Software | ZOOM, Google Meet, Microsoft Teams |
| Interface | USB Type-C |
| Powered By | USB 2.0 Type-C x 1 (For PC Connection) USB 2.0 Type-A x 1 (For USB Extension) DC-IN x 1 |
| Power Consumption (Scanning) | 10W |
| Power Consumption (Ready) | 4W |
| Power Consumption (Power Down) | 0W |
| Companion Software | IRIScan Desk – lifetime |
| Twain Compatible | Twain 64bit |
| Temperature Operating | 5°~40°C |
| Temperature Storage | -5°~60°C |
| Humidity Operating | <85RH% |
| Humidity Storage | <85RH% |
Minimum requirements
| Software suite for Windows® | Windows® operating system: Windows® 10 or Windows® 11 CPU: Intel or AMD Processor Graphics card: Intel® Standard Graphics or higher Graphics cards with 2 GB VRAM RAM: 8 GB or more Hard disk: 2 GB |
|---|---|
| Software suite for Mac OS® | macOS® operating system: macOS® 13, 14, 15 (with M1 chip) CPU: Apple ARM Graphics card: Intel® Standard Graphics or higher Graphics cards with 2 GB VRAM RAM: 8 GB or more Hard disk: 2 GB |
Description
Anti-Reflective Light Source By minimizing direct reflections from glossy paper, the implementation of asymmetric lighting creates a more comfortable scanning experience for users in low-light environments
