LT-4100L Satellite Communications System For Land
TF:
006871-HW-IRIDIUM-071
Overview
The SATCOM Solution For Fixed Installations
| Iridium Embedded Technology | Iridium Certus 9770 Module |
| Control Unit, Weight | 0.67 kg (1.48 lbs) |
| Control Unit, Dimensions | 224.0mm x 120.0mm x 70.0mm |
| Control Unit, Temperature, Operational | -15°C to +55°C (+5°F to +131°F) |
| Control Unit, IP Rating (Dust & Water) | IP32 |
| Control Unit, Input Power | 12-24 VDC (2.0-1.0 A) |
| Antenna Unit, Weight | 1.39 kg (3.05 lbs) |
| Antenna Unit, Dimensions | 182mm x Ø162mm |
| Antenna Unit, Temperature, Operational | -40°C to +55°C (-40°F to +131°F) |
| Antenna Unit, IP Rating (Dust & Water) | IP67 |

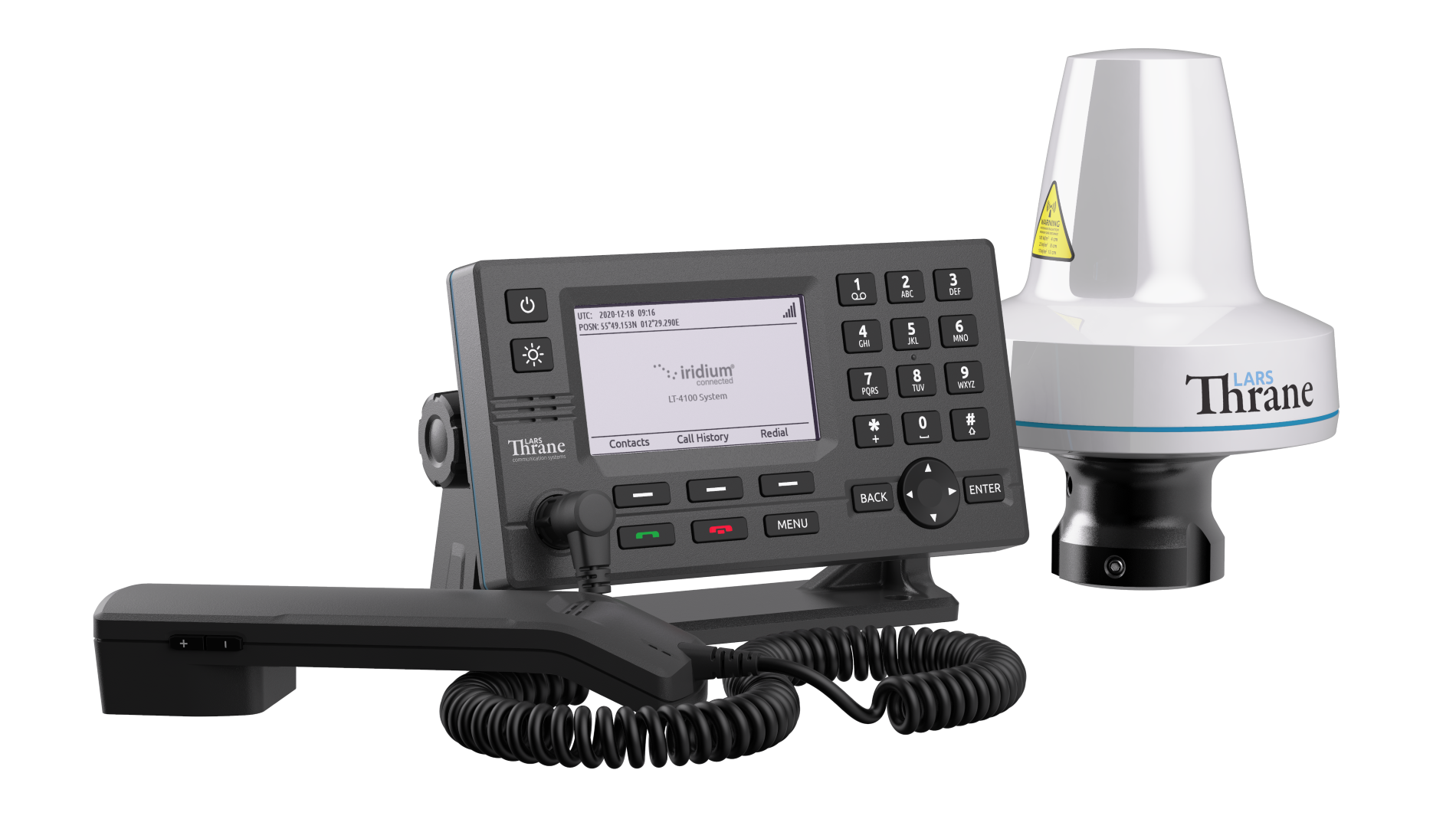

The LT-4100L Satellite Communications System is a LandMobile satellite communication product from Lars Thrane A/S—designed for fixed installation only. The system has voice and data capabilities with truly global coverage over the Iridium® Network. The LT- 4100L system consists of a control unit, antenna unit, handset, and cradle—and offers two high quality voice channels and IP-data 22 kbps (up) / 88 kbps (down), making it the perfect SATCOM communication product for any fixed installation.
