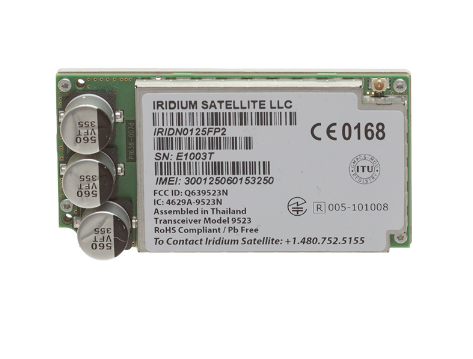

Iridium Core 9523
TF:
006878-HW-IRIDIUM-078
Overview
The Iridium Core 9523 easily integrates into connectivity solutions to drive global communications in ways never thought possible.
| Dimensions (L x W x H) | 70.44mm x 36.04mm x 14.6mm |
| Weight | 32 g |
| Operating Temperature Range | -30 to +70 ℃ |
| Operating Humidity Range | ≤75 % RH |
| Storage Temperature Range | -40 to +85 ℃ |
| Storage Humidity Range | ≤93 % RH |
| Vibration Standard | EN60068-2-14:2009, IEC60068-2-64:2008, EN60068-2-27:2009, SAE J1455, and MILSTD 810 |
| Duplexing Method | TDD (Time Domain Duplex) |
| I / O Impedence | 50 Ohm |
| Multiplexing Method | TDMA/FDMA |
| Input Voltage Range | +3.2 to +6 V |
| Calling Current Average | 110 average mA |
| Calling Current Peak | 300 peak A |
| Nominal Voltage | 27 V |
| Absolute Maximal Voltage | +35 V |
| Minimal Voltage During Call Transmit Burst | 10.5 V |
| Typical Power on Call | 2.3 average W |
| Maximal Power on Call | 3.1 average W |
| Telephony | Yes |
| Location Based Services | Yes |
Powerful New Possibilities. Small but powerful, the Iridium Core 9523 modules supports all Iridium narrowband voice and data services to enable endless global connectivity possibilities.
