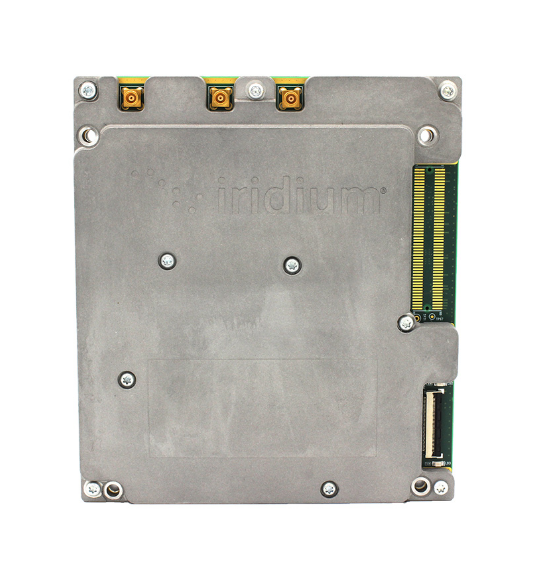

Iridium Certus 9810
-
NG # 006877-HW-IRIDIUM-077
Manufactured by:
Uniquely designed to support fast, reliable L-Band services and backed by unmatched network quality, the Iridium Certus 9810 module allows you to deliver cost-effective satellite voice and data solutions through smaller, lighter, and faster customer terminals.
Specification
Dimensions (L x W x H) 150.6mm x 133.6mm x 18.2mm Weight 500 g Operating Temperature Range -40 to +75 ℃ Operating Humidity Range ≤93 % RH Storage Temperature Range -40 to +85 ℃ Durability Standard Shock (Withstand): 3 half sine pulse shocks in each axis with a peak amplitude of 10 g and pulse duration of 11 ms Antenna Design High-Gain Multi-Element and Low-Gain Omni-Directional Antennas Frequency Range 1616 to 1626 MHz Input Voltage Range 12 VDC +/- 10% Transmit Up to 352 Kbps Receive Up to 704 Kbps
Description
Optimized for the fastest L-Band speeds available, the Iridium Certus 9810 delivers a variety of specialty broadband service classes. Integrated with Broadband Application Electronics (BAE), antenna (BAA), and appropriate amplifiers, the Iridium Certus 9810 provides multiple data speed rates, three simultaneous high-quality voice calls, and much more.
