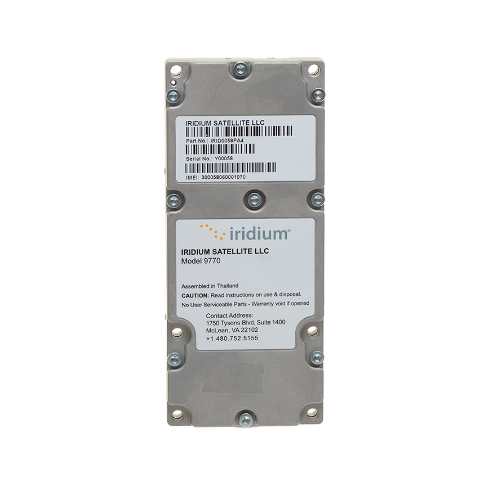

Iridium Certusâ„¢ 9770
TF:
006876-HW-IRIDIUM-076
Overview
Like all Iridium modules, the Iridium Certus 9770 provides low-latency and weather resilient connectivity using Iridium’s unique, truly global, Low-Earth Orbit satellite constellation architecture of 66 cross-linked satellites.
| Dimensions (L x W x H) | 140mm x 60mm x 16mm |
| Weight | 185 g |
| Operating Temperature Range | -40 to +70 ℃ |
| Vibration Standard | SAE J1455 |
| Antenna Design | External Passive Omni-directional Antenna |
| Frequency Range | 1616 to 1626.5 MHz |
| Input Voltage Range | 12 VDC +/- 2.5 V |
| Telephony | Yes |
| Transmit | Up to 22 Kbps |
| Receive | Up to 88 Kbps |
Small and highly mobile, the Iridium Certus 9770 transfers IP data more than 35 times faster than its predecessors and can simultaneously support two high-quality voice lines. Our first midband module, Iridium Certus 9770 expands the reach of satellite services to new markets, ranging from unmanned and autonomous drones to new personal communicators, and remotely deployed IoT devices, all connected through Iridium’s global L-band network.
