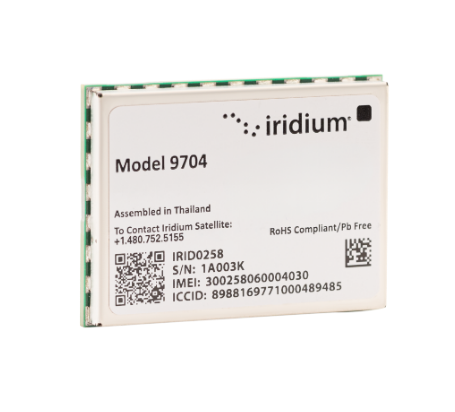

Iridium Certus 9704 Module
-
NG # 006874-HW-IRIDIUM-074
Manufactured by:
Iridium Certus 9704 harnesses the power of truly global satellite coverage in a sleek form factor without cables or added parts—just a single component soldered directly onto the Printed Circuit Board (PCB). A durable surface mount coupled with minimal profile height allows developers to build compact, rugged, and versatile devices.
Specification
Command Interface JSON-Based Serial Protocol for REST (JSPR) Interfaces Serial data; SPI; GPIOs; GNSS pass-through; antenna (RF pin); digital interface Dimensions 31.5 mm x 42.0 mm x 3.8 mm (L x W x H) Weight 12g Operating Temperature Range -40°C to +85°C Max Message Size 100 KB—including images & soundbites
Description
Built into an ultra-slim module, Iridium Certus™ 9704 integrates with products of any scale to deliver cloud-ready data over Iridium’s truly global satellite network. Iridium Certus 9704 exclusively supports IMT, a cloud-native, server-device messaging format that optimizes Iridium network capabilities to match increasing demand in industrial IoT.
