Flat Panel Display
-
NG # 006101-HW-IKEY-001
Manufactured by:
This
seller generally responds in under 48 hours
Flat Panel Display
Specification
| Category | Specification |
|---|---|
| Model | IK-KV-11.6W (SKU: IK-KV-11.6W-USBC) |
| Display Type | Rugged LCD Flat Panel Touch Display |
| Display Size | 11.6″ (wide) |
| Resolution | 1920 (RGB) × 1080 (Full HD) |
| Touch Technology | Two-Point Capacitive Touch Screen |
| Video Input | HDMI or USB-C |

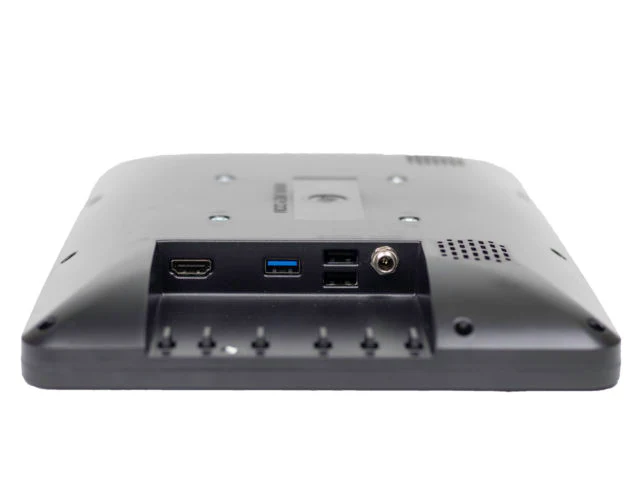

| USB Ports | 3 × USB Type-A (downstream)1 × USB 3.0 Type-A (upstream) |
| Speakers | Integrated |
| Power Supply | 12 VDC |
| Color | Black |
| Mounting Pattern | VESA 75 mm × 75 mm (6-32 threaded inserts) |
| Dimensions (L × W × D) | 11.71″ × 8.21″ × 1.36″ (297.1 mm × 208.5 mm × 34.5 mm) |
| Weight | 3.0 lbs (1.36 kg) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature | −20 °C to 60 °C (−4 °F to 140 °F) |
| Shock Resistance | Withstands 6 thermal cycles (−20 °C to +60 °C, 5 min change interval) |
| Humidity | 100% Humidity Resistant (non-condensing) |
| Brightness / Visibility | High-Bright, Daylight Readable |
| Special Features | Night Mode (quick brightness adjustment for day/night use) |
| Compatibility | Supports Samsung DeX and compatible tablets via USB-C |
| Material / Finish | Rugged black enclosure |
| Warranty | 1 Year |
| Compliance / Standards | VESA Mounting, CE/FCC (typical for iKey displays) |
Description
The IK-KV-11.6W is engineered for demanding applications where durability and visibility are critical. Its high-bright Full HD panel provides clear visibility in daylight, while its rugged housing and thermal shock resistance ensure reliability in extreme conditions.

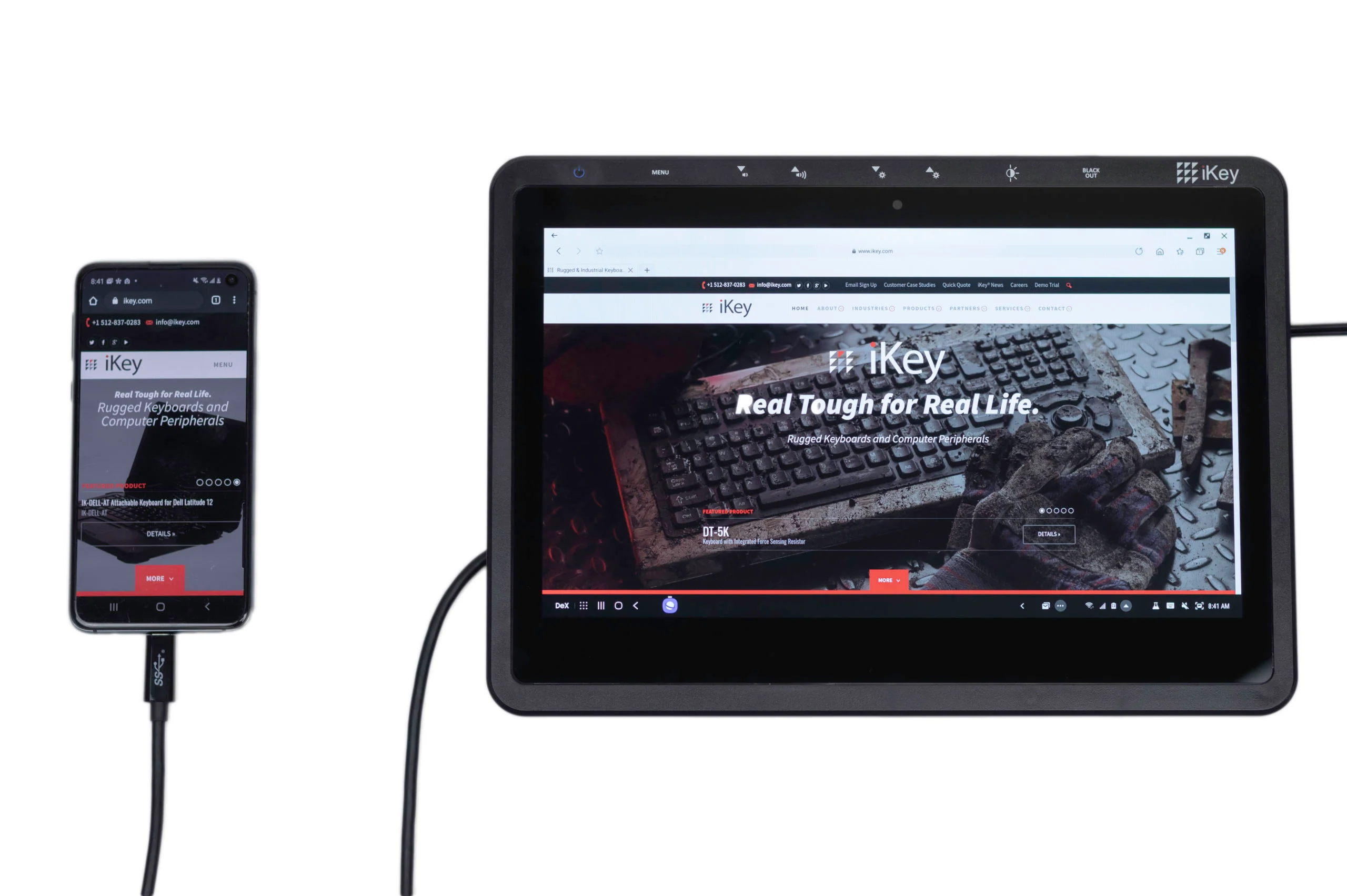

The unit supports Samsung DeX and compatible tablets, allowing mobile devices to connect directly and operate as a desktop workstation.
Fully mountable using a VESA 75 × 75 pattern, the display integrates seamlessly into vehicles, kiosks, or industrial control stations.
