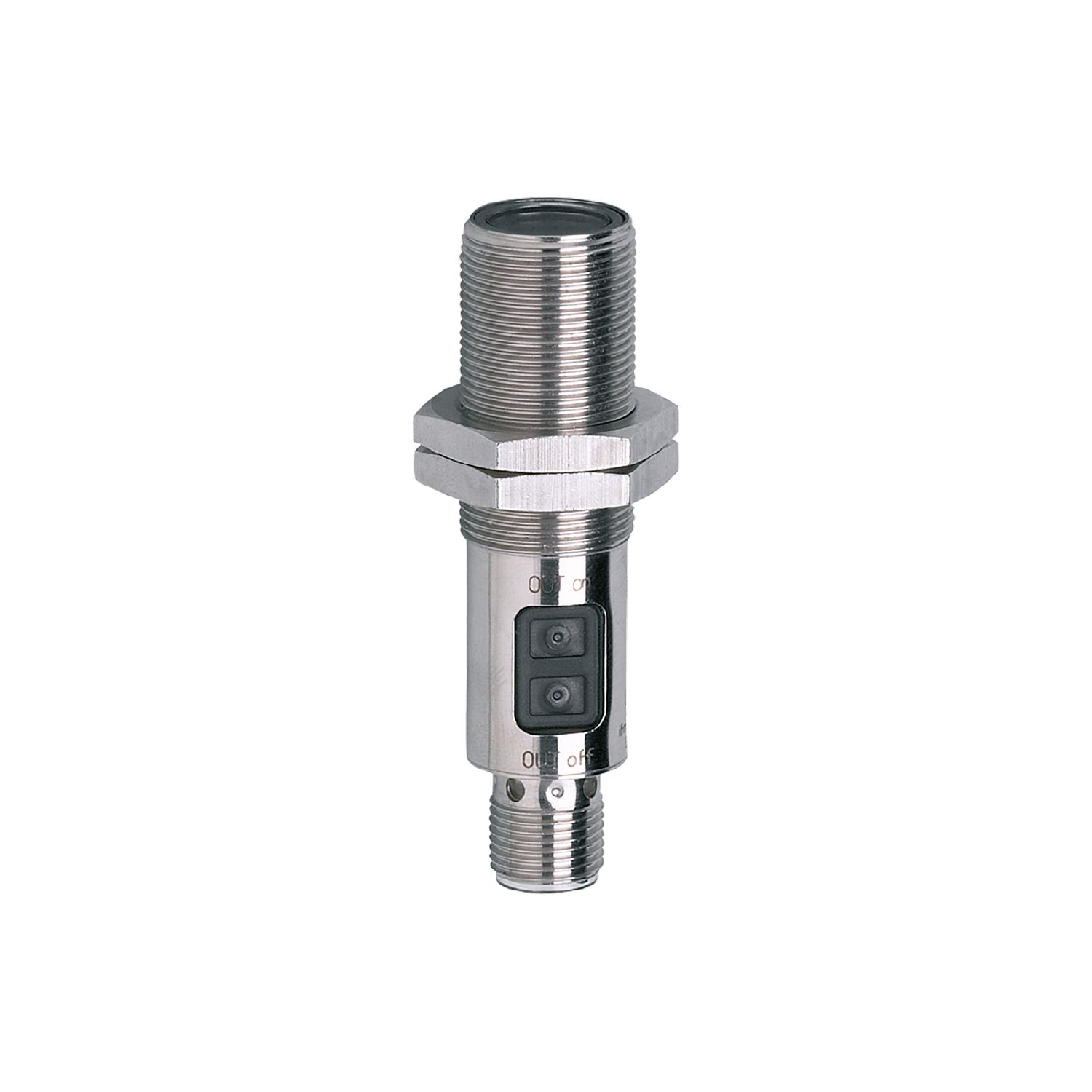

Retro-reflective sensor OGP500
TF:
003717-HW-IFM-O17
Overview
Robust stainless steel housing for use in harsh industrial environments Very long range
| Type of light | red light |
| Housing | threaded type |
Application
| Special feature | polarisation filter |
| Function principle | Retro-reflective sensor |
Electrical data
| Operating voltage[V] | 10...36 DC |
| Current consumption[mA] | 20 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 624 |
Outputs
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 150; (200 (...60 °C)) |
| Switching frequency DC[Hz] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range referred to prismatic reflector[m] | 0.03...5; (Prismatic reflector Ø 80 E20005) | |
| Factory setting |
| |
| Range adjustable | yes | |
| Max. light spot diameter[mm] | 200 | |
| Light spot dimensions refer to | at maximum range | |
| Polarisation filter available | yes |
Operating conditions
| Ambient temperature[°C] | -25...80 |
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||
| MTTF[years] | 431 |
Mechanical data
| Weight[g] | 52.1 | |
| Housing | threaded type | |
| Dimensions[mm] | M18 x 1 / L = 72 | |
| Thread designation | M18 x 1 | |
| Materials | stainless steel (316L/1.4404); PA; LCP; EPDM; TPU | |
| Lens material |
|
Displays / operating elements
| Display |
|
Accessories
| Items supplied |
|
Remarks
| Remarks |
| |
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
Intuitive setting of the sensitivity via pushbutton Wide range of fixing components for quick and easy mounting Programmable light-on/dark-on mode
