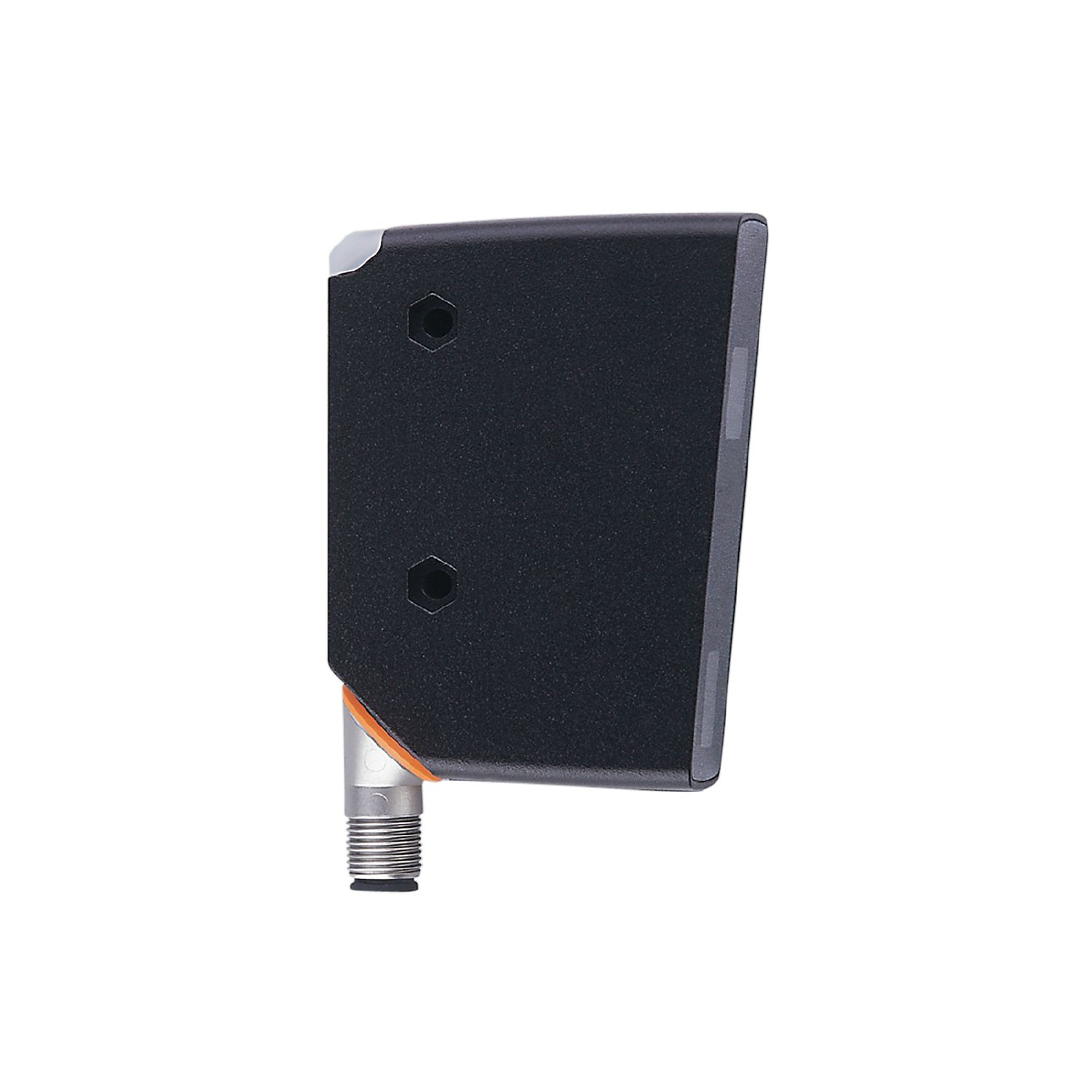

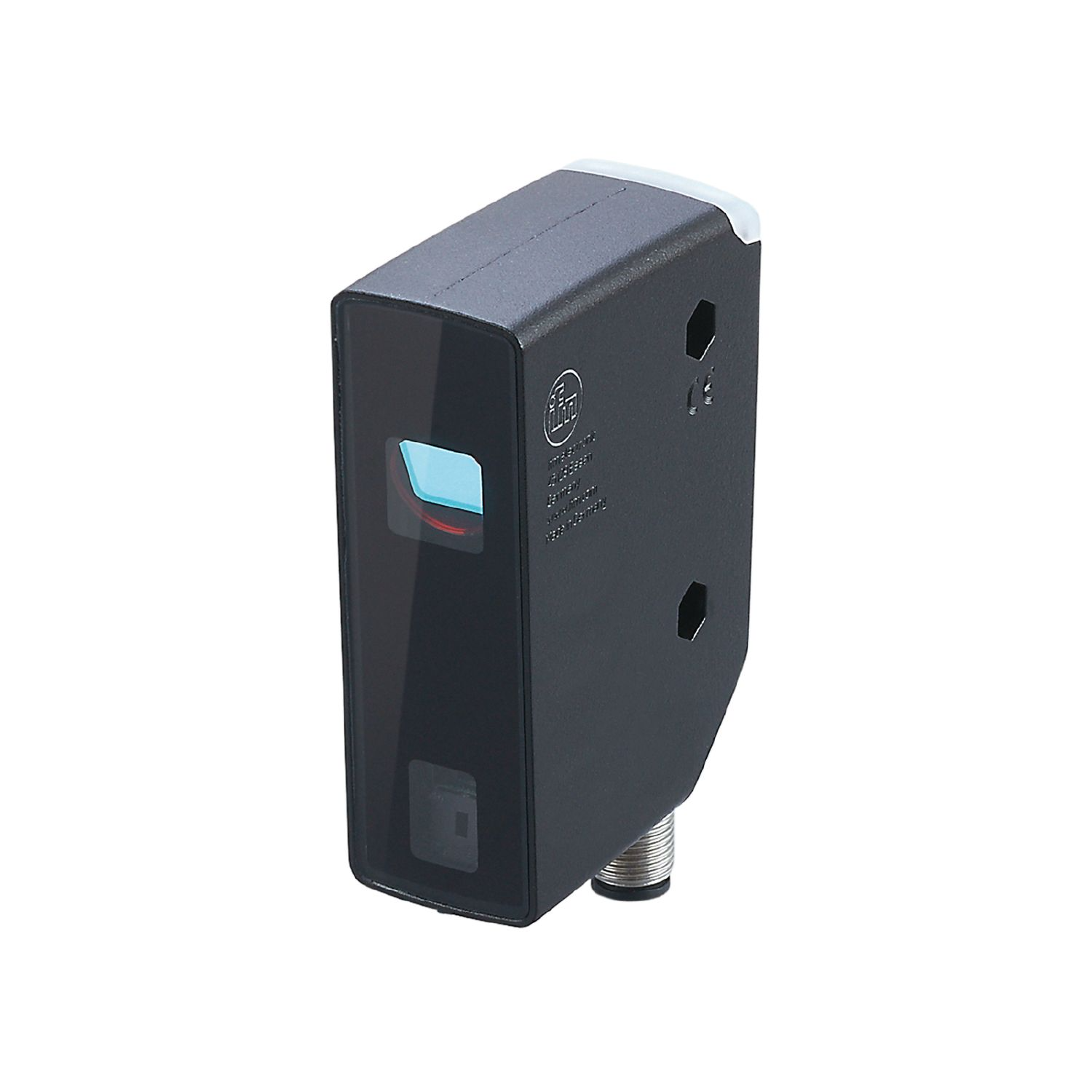

profile sensor OPD100

NG # 003710-HW-IFM-O10

Manufactured by:

This seller generally responds in under 48 hours

PMD Profiler for object profile checking Inline quality control checks to ensure correct assembly of parts Quick set-up without software

Add to favorites | Compare this product

Specification

Type of light	red light
Laser protection class	1
Housing	rectangular

Electrical data

Operating voltage[V]	10...30 DC; ("supply class 2" to cULus)
Current consumption[mA]	< 200; (10 V)
Protection class	III
Reverse polarity protection	yes
Power-on delay time[s]	2
Type of light	red light
Wave length[nm]	650

Inputs / outputs

Number of inputs and outputs

Number of digital inputs: 1; Number of digital outputs: 2

Inputs

Trigger	external
Number of digital inputs	1

Outputs

Electrical design	PNP/NPN; (parameterisable)
Number of digital outputs	2
Output function	2 x normally open / normally closed; (parameterisable)
Max. current load per output[mA]	100
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring distance (Z-direction)[mm]	150...300
Width of the measuring range (X-direction) at min. measuring distance[mm]	45; (distance = 150mm)
Width of the measuring range (X-direction) at max. measuring distance[mm]	90; (distance = 300mm)
Sampling rate[Hz]	5

Accuracy / deviations

Measured value resolution

Z-direction 200 µm

X-direction 250 µm

Accuracy

Z-direction ± 500 µm

X-direction ± 500 µm

background white (90 % remission)

Software / programming

Number of profiles which can be stored	1
Number of regions of interest	1

Interfaces

Communication interface

IO-Link

Transmission type

COM3 (230,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Common - I&D	Identification and Diagnosis
Function	Multiple switching signal
Function	Measurement data, standard resolution

SIO mode

yes

Required master port type

Min. process cycle time[ms]

2.3

IO-Link process data (cyclical)

function	bit length
process value	16
device status	4
binary switching information	1

IO-Link functions (acyclical)

operating hours counter; number of trigger events; ROI setting

Supported DeviceIDs

Type of operation	DeviceID
default	1260

Note

For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature[°C]	-10...55
Storage temperature[°C]	-40...60
Protection	IP 65
Max. immunity to extraneous light[klx]	20

Tests / approvals

EMC

EN 60947-5-2

Laser protection class

Notes on laser protection

Caution:	laser light
laser class:	1
	EN / IEC60825-1:2007
	EN / IEC60825-1:2014
	Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019.

MTTF[years]

155

UL approval

Ta	-10...55 °C
Enclosure type	Type 1
power supply	Class 2
File number UL	E174191

Mechanical data

Weight[g]	535.8
Housing	rectangular
Dimensions[mm]	88 x 28.5 x 65
Materials	housing: diecast zinc; PPSU; ABS; PMMA; PBT / PC; EPDM; front pane: PMMA

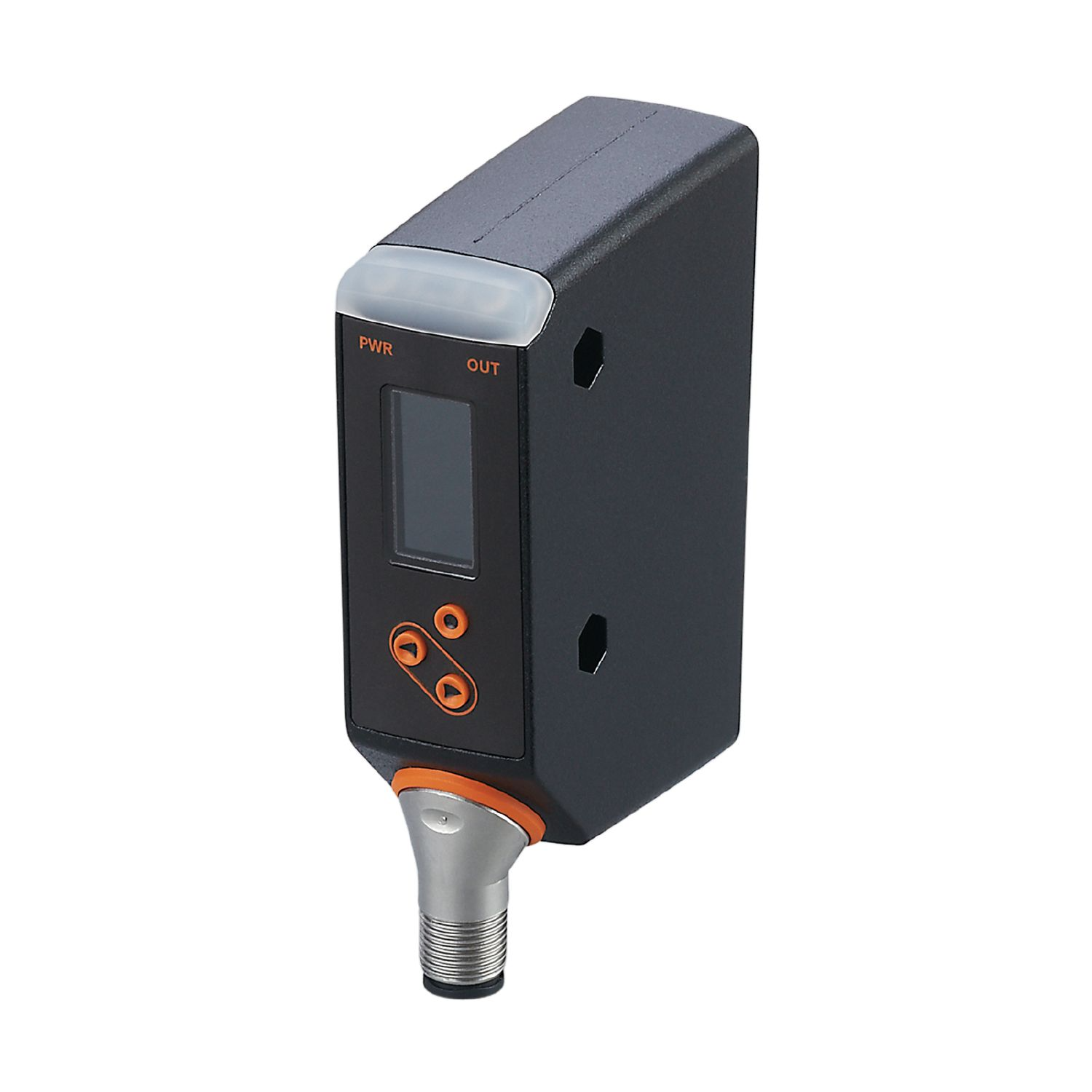

Displays / operating elements

Display

switching status	1 x LED, yellow
Display operation	1 x LED, green
	colour display

Remarks

Pack quantity

1 pcs.

Electrical connection

Connection

Connector: 1 x M12; coding: A

Description

Distance-independent measurement for high tolerance on object positioning Immunity to extraneous light – no screening or external illumination required
