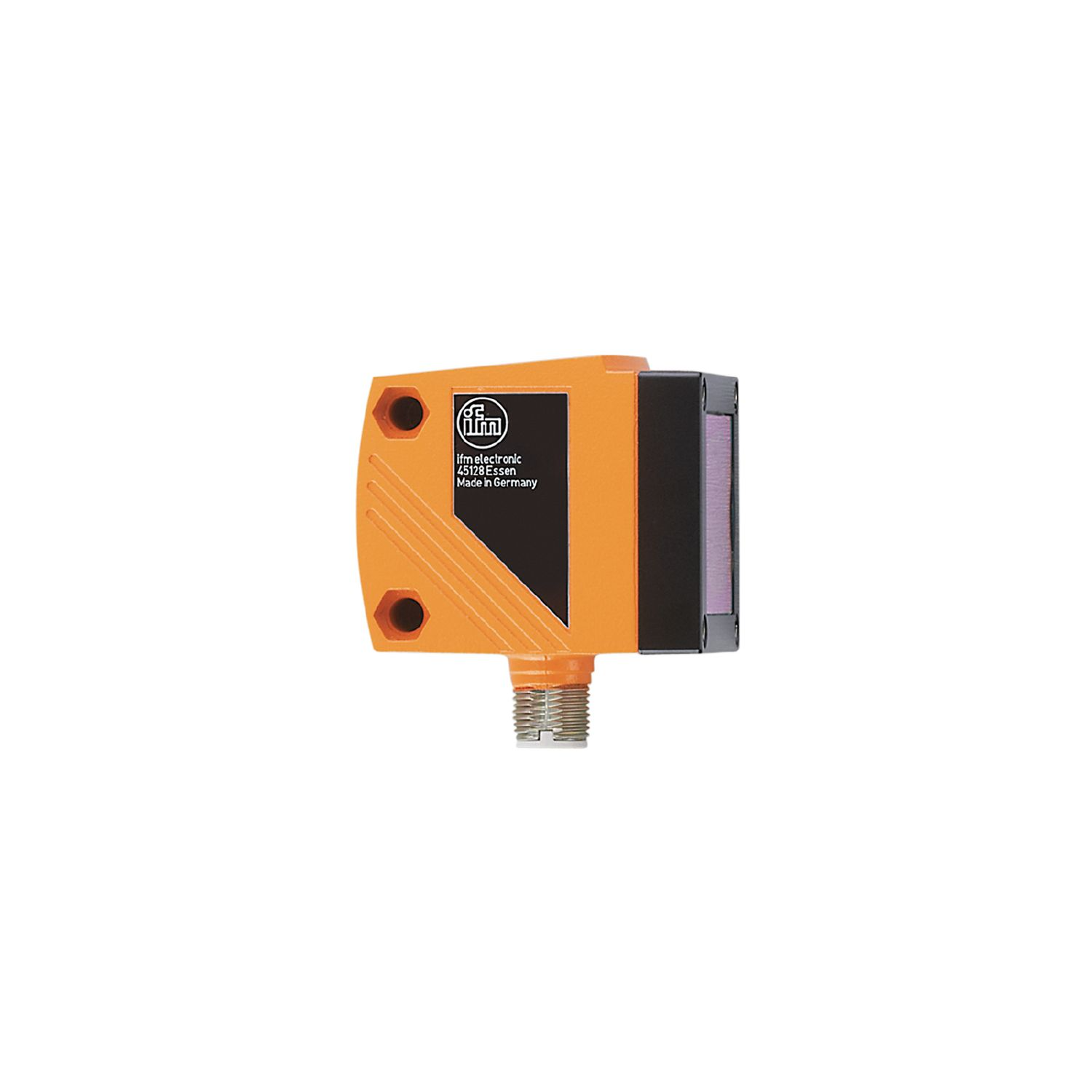

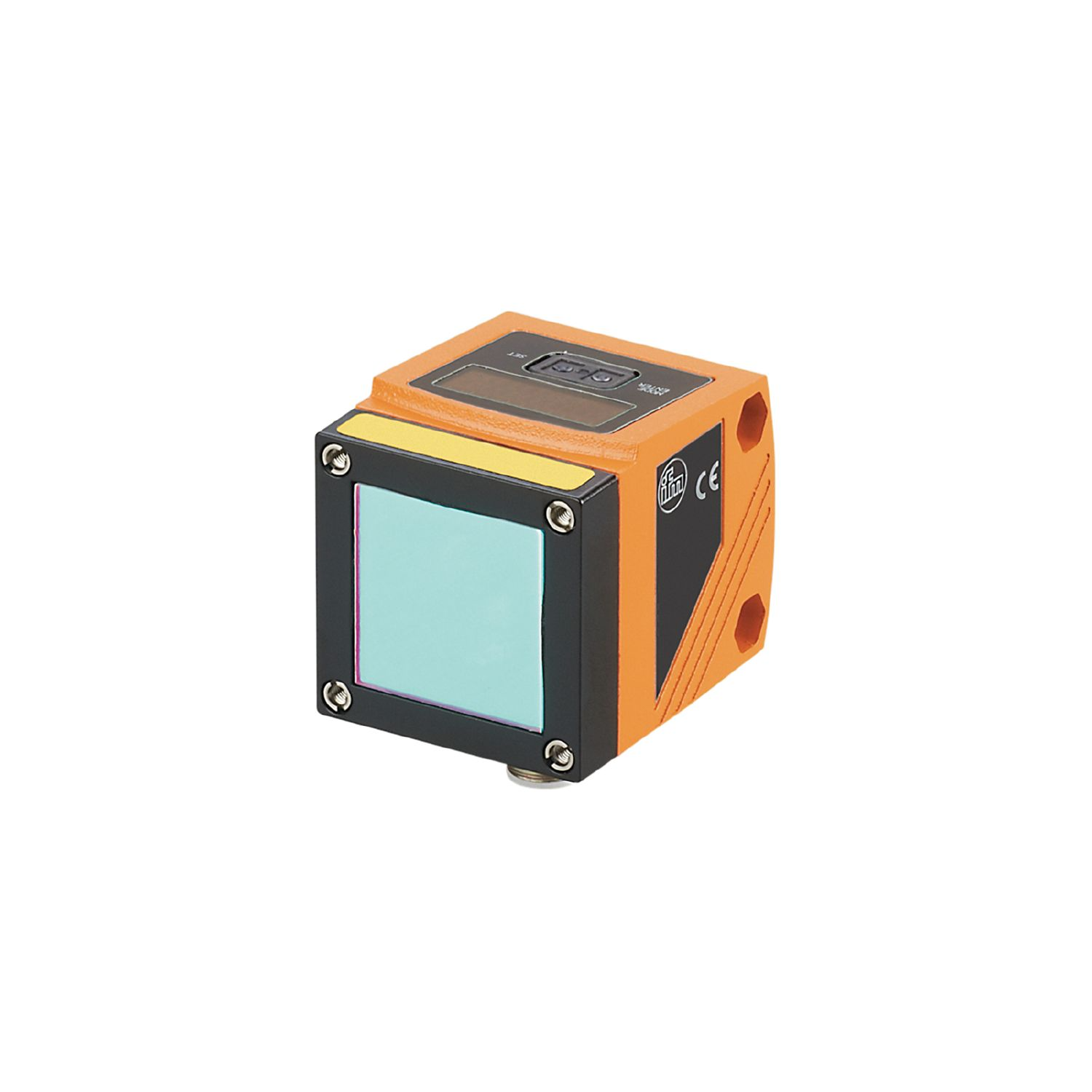

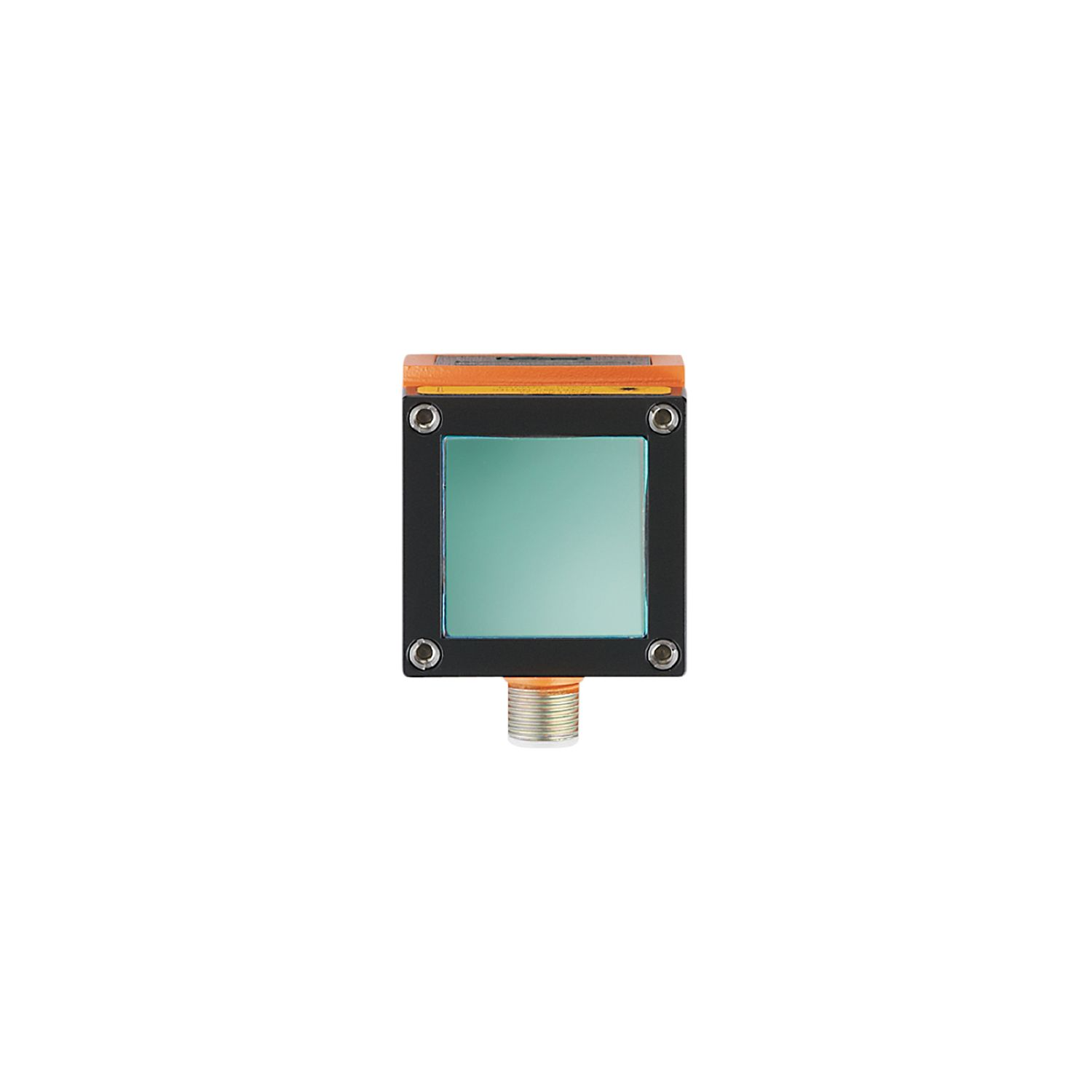

Photoelectric distance sensor O1D109
-
NG # 003719-HW-IFM-O19
Manufactured by:
This
seller generally responds in under 48 hours
Reliable optical distance measurement with high ranges up to 10 m Two switching outputs, one of them programmable as analogue output
Specification
Laser protection class 2 Housing rectangular
Electrical data
| Operating voltage[V] | 18...30 DC; ("supply class 2" to cULus) |
| Current consumption[mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Typ. lifetime[h] | 50000 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
Outputs
| Total number of outputs | 2 |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. current load per output[mA] | 200 |
| Number of analogue outputs | 1 |
| Analogue current output[mA] | 4...20; (IEC 61131-2) |
| Max. load[Ω] | 250 |
| Analogue voltage output[V] | 0...10; (IEC 61131-2) |
| Min. load resistance[Ω] | 5000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Max. light spot width[mm] | 15 |
| Max. light spot height[mm] | 15 |
| Light spot dimensions refer to | 10 m |
| Background suppression[m] | 0...19 |
Measuring/setting range
| Measuring range[m] | 0.2...10; (white paper 200 x 200 mm 90% remission) |
| Sampling rate[Hz] | 1...50 |
Interfaces
| Communication interface | IO-Link | ||||||||||
| Transmission type | COM2 (38,4 kBaud) | ||||||||||
| IO-Link revision | 1.1 | ||||||||||
| SDCI standard | IEC 61131-9 | ||||||||||
| Profiles |
| ||||||||||
| SIO mode | yes | ||||||||||
| Required master port type | A | ||||||||||
| Process data analogue | 2 | ||||||||||
| Process data binary | 3 | ||||||||||
| Min. process cycle time[ms] | 5 | ||||||||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature[°C] | -10...60 |
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||||||||||||||||
| Laser protection class | 2 | ||||||||||||||||||||
| Notes on laser protection |
| ||||||||||||||||||||
| UL approval |
|
Mechanical data
| Weight[g] | 248.8 |
| Housing | rectangular |
| Dimensions[mm] | 59 x 42 x 52 |
| Materials | housing: diecast zinc; front pane: glass; LED window: PC |
| Lens alignment | side lens |
Displays / operating elements
| Display |
|
Accessories
| Accessories (optional) |
|
Remarks
| Remarks |
| |
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
Other data
| Parameter | Setting range | Factory setting |
| Uni | mm, m | mm |
| OU1 | Hno, Hnc, Fno, Fnc | Hno |
| SP1 [mm] | 200...9999 | 1000 |
| nSP1 [mm] | 200...9999 | 800 |
| FSP1 [mm] | 200...9999 | 1200 |
| OU2 | Hno, Hnc, Fno, Fnc, I, U | I |
| SP2 [mm] | 200...9999 | 2000 |
| nSP2 [mm] | 200...9999 | 1800 |
| FSP2 [mm] | 200...9999 | 2200 |
| ASP [mm] | 0...9999 | 0 |
| AEP [mm] | 0...9999 | 9999 |
| rATE [Hz] | 1...50 | 50 |
| dS1 [s] | 0...0.1...5 | 0 |
| dr1 [s] | 0...0.1...5 | 0 |
| dS2 [s] | 0...0.1...5 | 0 |
| dr2 [s] | 0...0.1...5 | 0 |
| dFo [s] | 0...0.1...5 | 0 |
| dIS | d1...3 ; rd1...3; OFF | d3 |
repeatability/accuracy
| distance | repeatability of the measured values | accuracy | ||
| white (90 % remission) | grey (18 % remission) | white (90 % remission) | grey (18 % remission) | |
| 200...1000 mm | ± 5.0 mm | ±7.5 mm | ± 15.0 mm | ± 18.0 mm |
| 1000...2000 mm | ± 5.5 mm | ±10.0 mm | ± 15.0 mm | ± 20.0 mm |
| 2000...4000 mm | ± 17.5 mm | ±22.5 mm | ± 25.0 mm | ± 32.0 mm |
| 4000...6000 mm | ± 27.5 mm | ±40.0 mm | ± 35.0 mm | ± 50.0 mm |
| 6000...10000 mm | ± 60.0 mm | ± 70.0mm |
| Sampling rate | 50 Hz |
| Extraneous light on the object | < 40 klx |
repeatability/accuracy
| distance | repeatability of the measured values | accuracy | ||
| white (90 % remission) | grey (18 % remission) | white (90 % remission) | grey (18 % remission) | |
| 200...1000 mm | ± 16.5 mm | ±16.5 mm | ± 26.5 mm | ± 26.5 mm |
| 1000...2000 mm | ± 16.5 mm | ±16.5 mm | ± 26.5 mm | ± 26.5 mm |
| 2000...4000 mm | ± 30.0 mm | ±37.0 mm | ± 40.0 mm | ± 47.0 mm |
| 4000...6000 mm | ± 37.0 mm | ±57.0 mm | ± 47.0 mm | ± 67.0 mm |
| 6000...10000 mm | ± 75.0 mm | — | ± 85.0mm | — |
| Sampling rate | 50 Hz |
| Extraneous light on the object | 40...100 klx |
repeatability/accuracy
| distance | repeatability of the measured values | accuracy | ||
| white (90 % remission) | grey (18 % remission) | white (90 % remission) | grey (18 % remission) | |
| 200...1000 mm | ± 4.0 mm | ±4.5 mm | ± 14.0 mm | ± 15.0 mm |
| 1000...2000 mm | ± 4.5 mm | ±6.0 mm | ± 14.5 mm | ± 16.0 mm |
| 2000...4000 mm | ± 13.5 mm | ±14.5 mm | ± 23.5 mm | ± 24.0 mm |
| 4000...6000 mm | ± 19.0 mm | ±21.0 mm | ± 29.0 mm | ± 31.0 mm |
| 6000...10000 mm | ± 37.0 mm | – | ± 47.0mm | – |
| Sampling rate | 1 Hz |
| Extraneous light on the object | < 40 klx |
repeatability/accuracy
| distance | repeatability of the measured values | accuracy | ||
| white (90 % remission) | grey (18 % remission) | white (90 % remission) | grey (18 % remission) | |
| 200...1000 mm | ± 10.0 mm | ± 10.0 mm | ± 20.0 mm | ± 20.0 mm |
| 1000...2000 mm | ± 10.0 mm | ± 10.0 mm | ± 20.0 mm | ± 20.0 mm |
| 2000...4000 mm | ± 17.0 mm | ± 18.0 mm | ± 27.0 mm | ± 28.0 mm |
| 4000...6000 mm | ± 22.0 mm | ± 25.0 mm | ± 32.0 mm | ± 35.0 mm |
| 6000...10000 mm | ± 37.0 mm | – | ± 47.0mm | – |
| Sampling rate | 1 Hz |
| Extraneous light on the object | < 40...100 klx |
| Range on black object (6 % remission) | <= 4000 mm |
| The values apply at | |
| Extraneous light on the object | < 100 klx |
| constant ambient conditions | 23 °C / 960 hPa |
| minimum power-on time in minutes | 10 |
Description
Scalable measuring range and window function Use in applications with background suppression Excellent price/performance ratio
