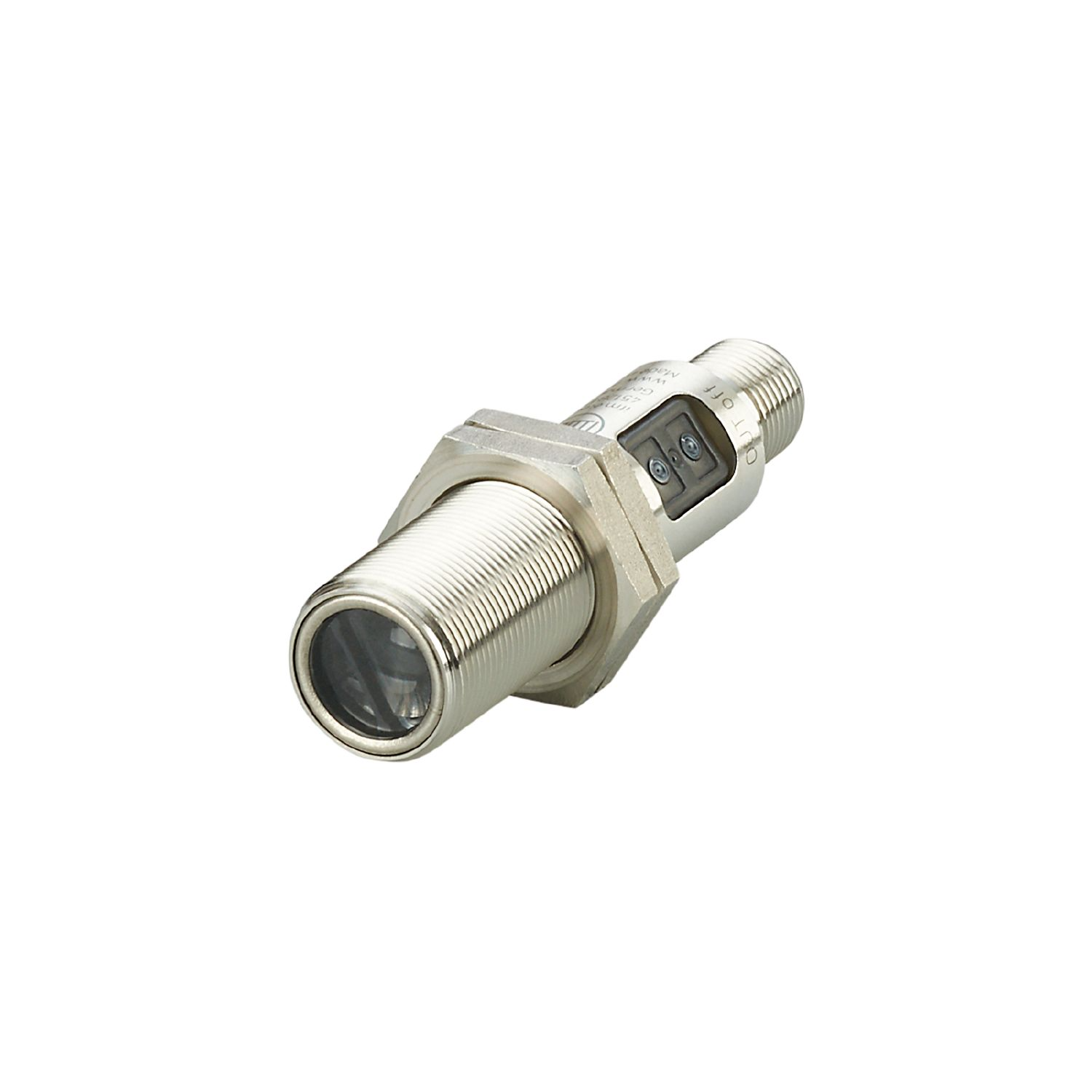

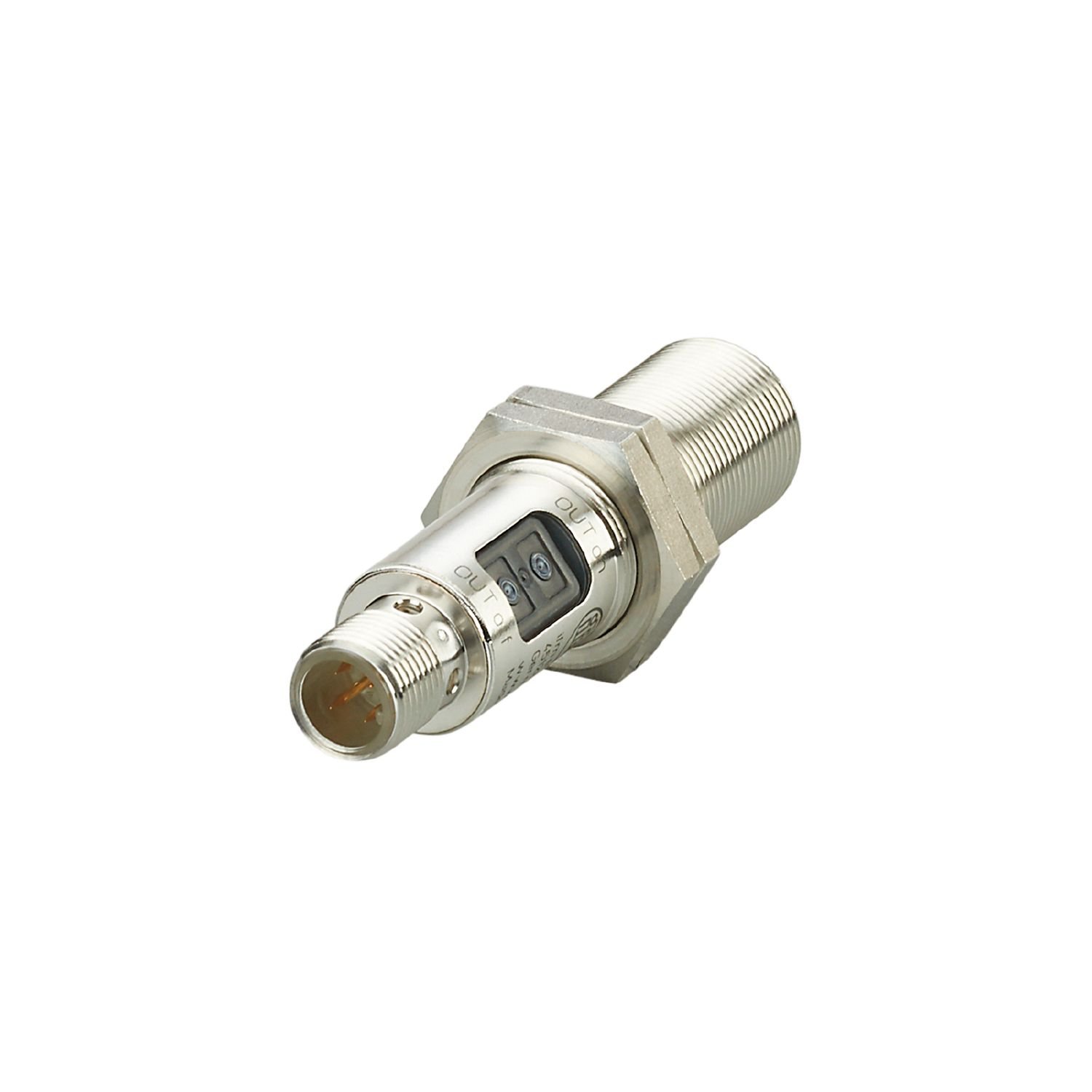

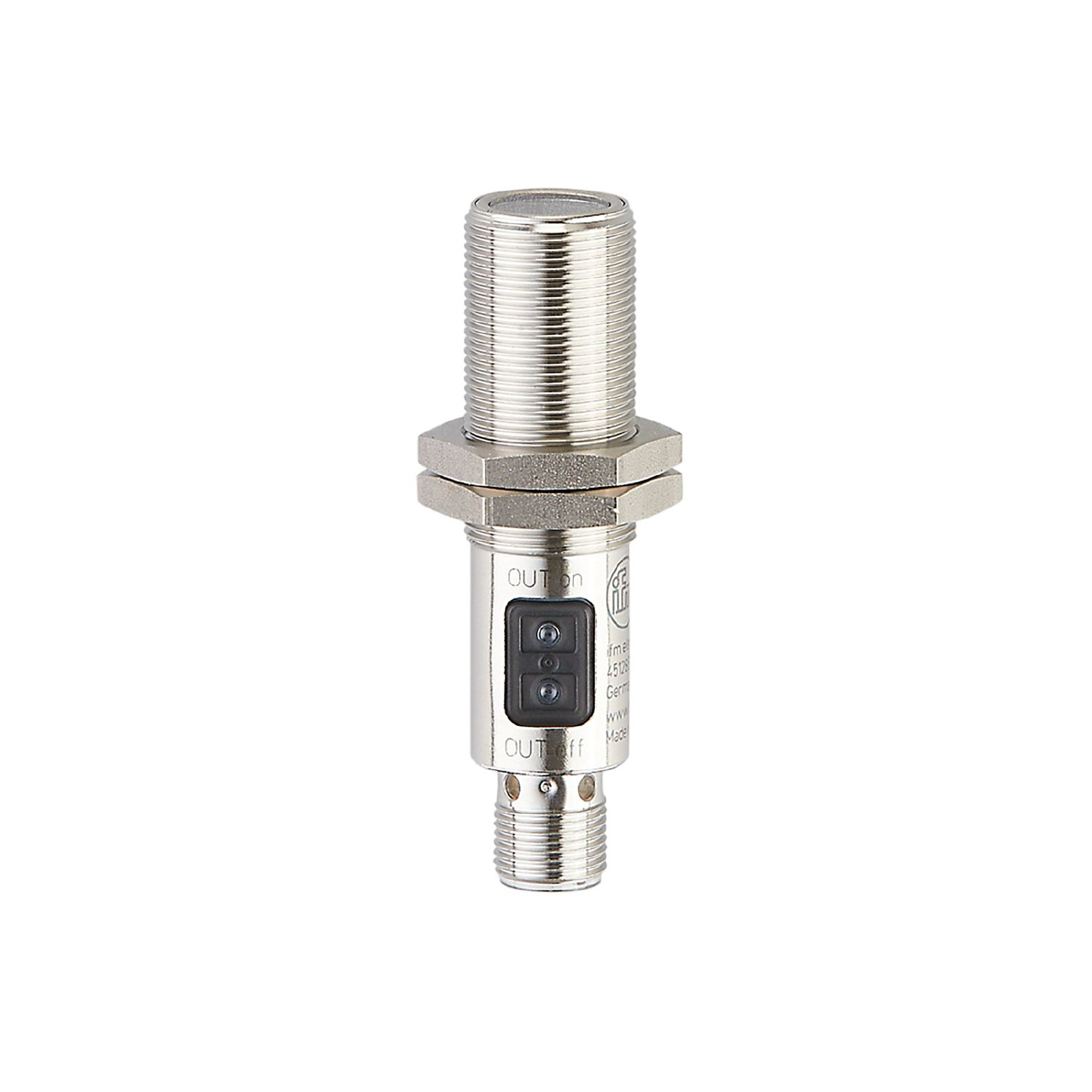

Diffuse reflection sensor with background suppression OGH500
-
NG # 003716-HW-IFM-O16
Manufactured by:
This
seller generally responds in under 48 hours
Robust stainless steel housing for use in harsh industrial environments Precise background suppression
Specification
Type of light red light Housing threaded type
Application
| Special feature | Background suppression |
| Function principle | Diffuse reflection sensor |
Electrical data
| Operating voltage[V] | 10...36 DC |
| Current consumption[mA] | 25 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 624 |
Outputs
| Electrical design | PNP | |
| Output function | light-on/dark-on mode; (programmable) | |
| Max. voltage drop switching output DC[V] | 2.5 | |
| Permanent current rating of switching output DC[mA] | 150; (200 (...60 °C)) | |
| Switching frequency DC[Hz] | 1000 | |
| Factory setting |
| |
| Short-circuit protection | yes | |
| Type of short-circuit protection | pulsed | |
| Overload protection | yes |
Detection zone
| Range[mm] | 15...300; (white paper 200 x 200 mm 90% remission) |
| Range on white object (90 % remission)[mm] | 15...300 |
| Range on grey object (18 % remission)[mm] | 15...290 |
| Range on black object (6 % remission)[mm] | 15...190 |
| Range adjustable | yes |
| Max. light spot diameter[mm] | 25 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
Operating conditions
| Ambient temperature[°C] | -25...80 |
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||
| MTTF[years] | 362 |
Mechanical data
| Weight[g] | 61.1 | |
| Housing | threaded type | |
| Dimensions[mm] | M18 x 1 / L = 72 | |
| Thread designation | M18 x 1 | |
| Materials | stainless steel (316L/1.4404); PA; LCP; EPDM; TPU | |
| Lens material |
|
Displays / operating elements
| Display |
|
Accessories
| Items supplied |
|
Remarks
| Remarks |
| |
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
Description
Intuitive setting of the sensitivity via pushbutton Programmable light-on/dark-on mode
Wide range of fixing components for quick and easy mounting
