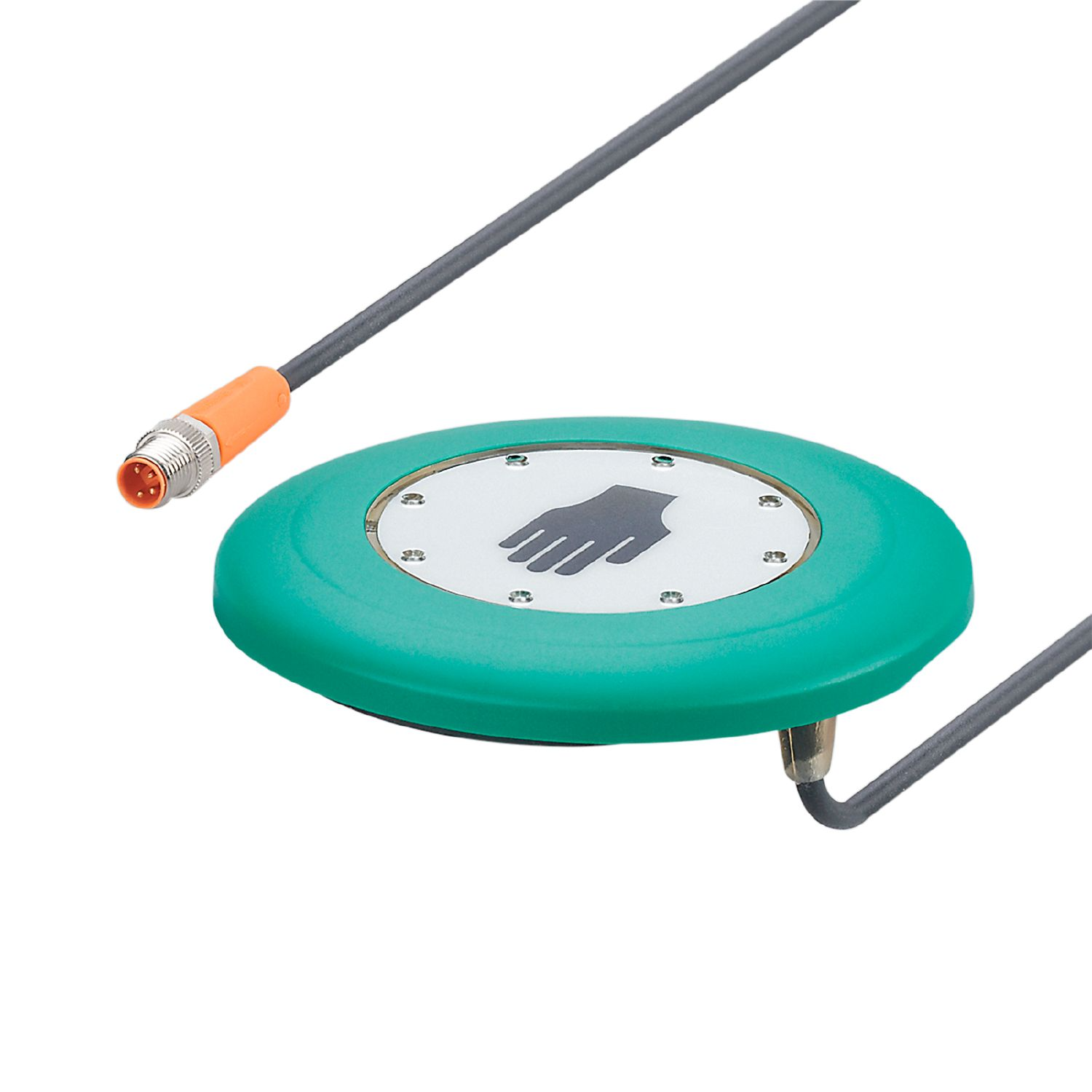

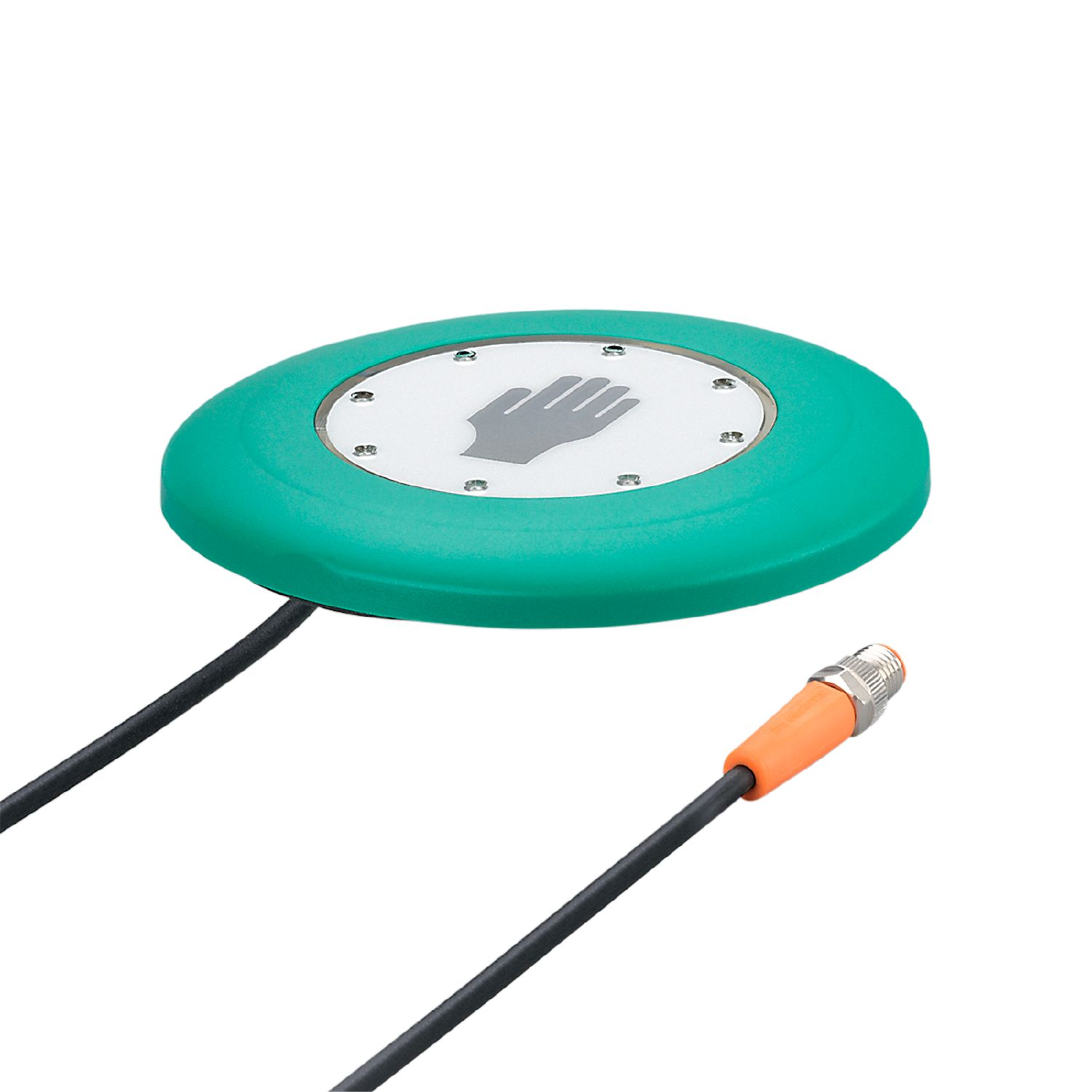

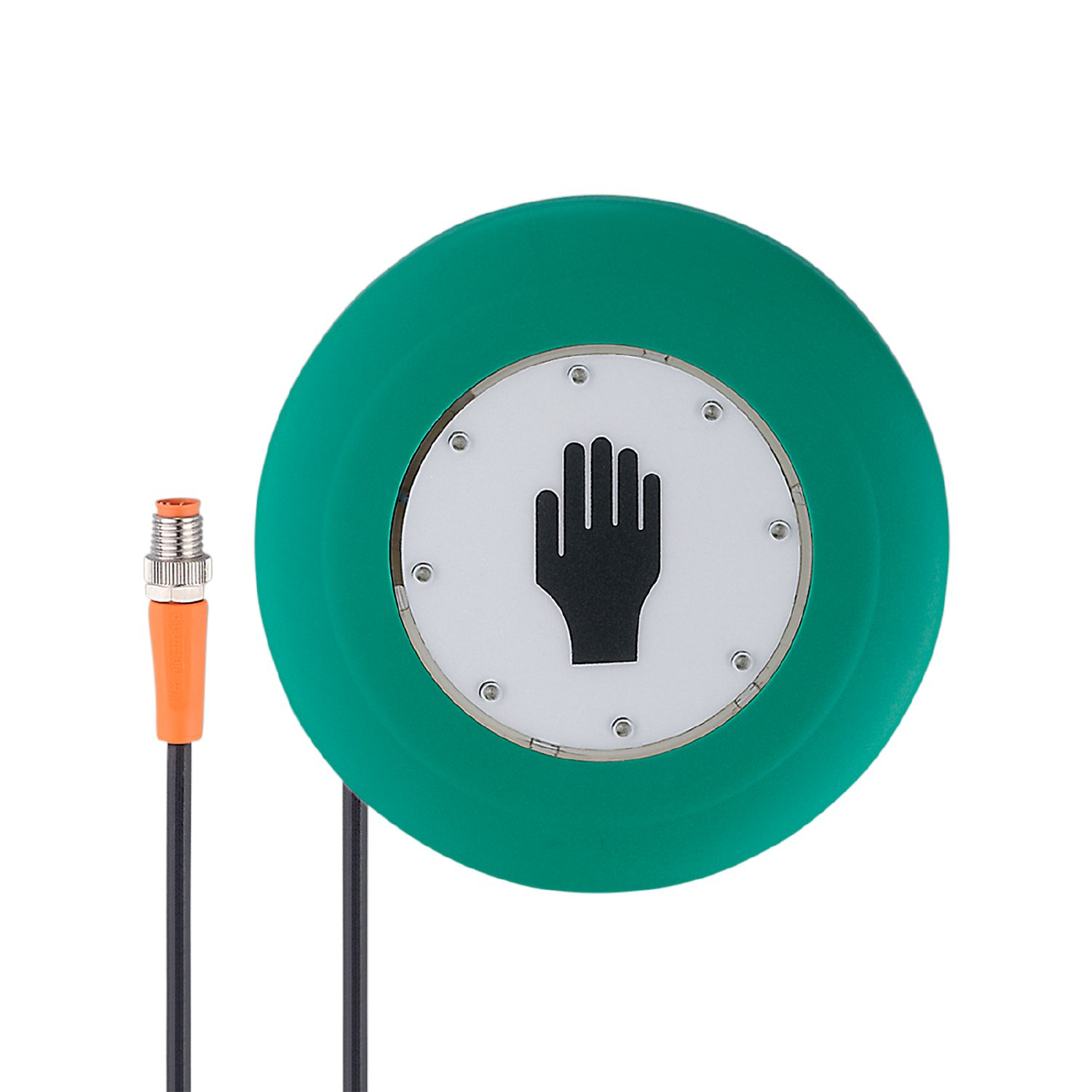

Capacitive touch sensor KT5006
-
NG # 003730-HW-IFM-O30
Manufactured by:
This
seller generally responds in under 48 hours
Non-contact switching without mechanical pressure LEDs for visual feedback oil-resistant, impact and scratch resistant
Specification
Electrical design PNP Output function normally open Housing cylindrical Dimensions[mm] Ø 100 / L = 11
Application
| Operating principle | static |
Electrical data
| Operating voltage[V] | 12...30 DC |
| Current consumption[mA] | 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] | 500 |
Outputs
| Electrical design | PNP |
| Output function | normally open |
| Permanent current rating of switching output DC[mA] | 200 |
| Short-circuit proof | yes |
| Overload protection | yes |
Response times
| Response time[ms] | 35 |
Operating conditions
| Ambient temperature[°C] | -40...85 |
| Protection | IP 67; IP 69K; (on the front) |
Tests / approvals
| MTTF[years] | 394 |
Mechanical data
| Weight[g] | 129.5 |
| Housing | cylindrical |
| Dimensions[mm] | Ø 100 / L = 11 |
| Materials | active face: PA Grilamid TR 90UV transparent; housing: PC/ABS black; Coloured surround: PC/ABS green |
Displays / operating elements
| Display |
|
Accessories
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Cable: 0.3 m, PUR |
| Connection | Connector: 1 x M8; coding: A |
Description
Surround available in different colours Wear-free and maintenance-free
