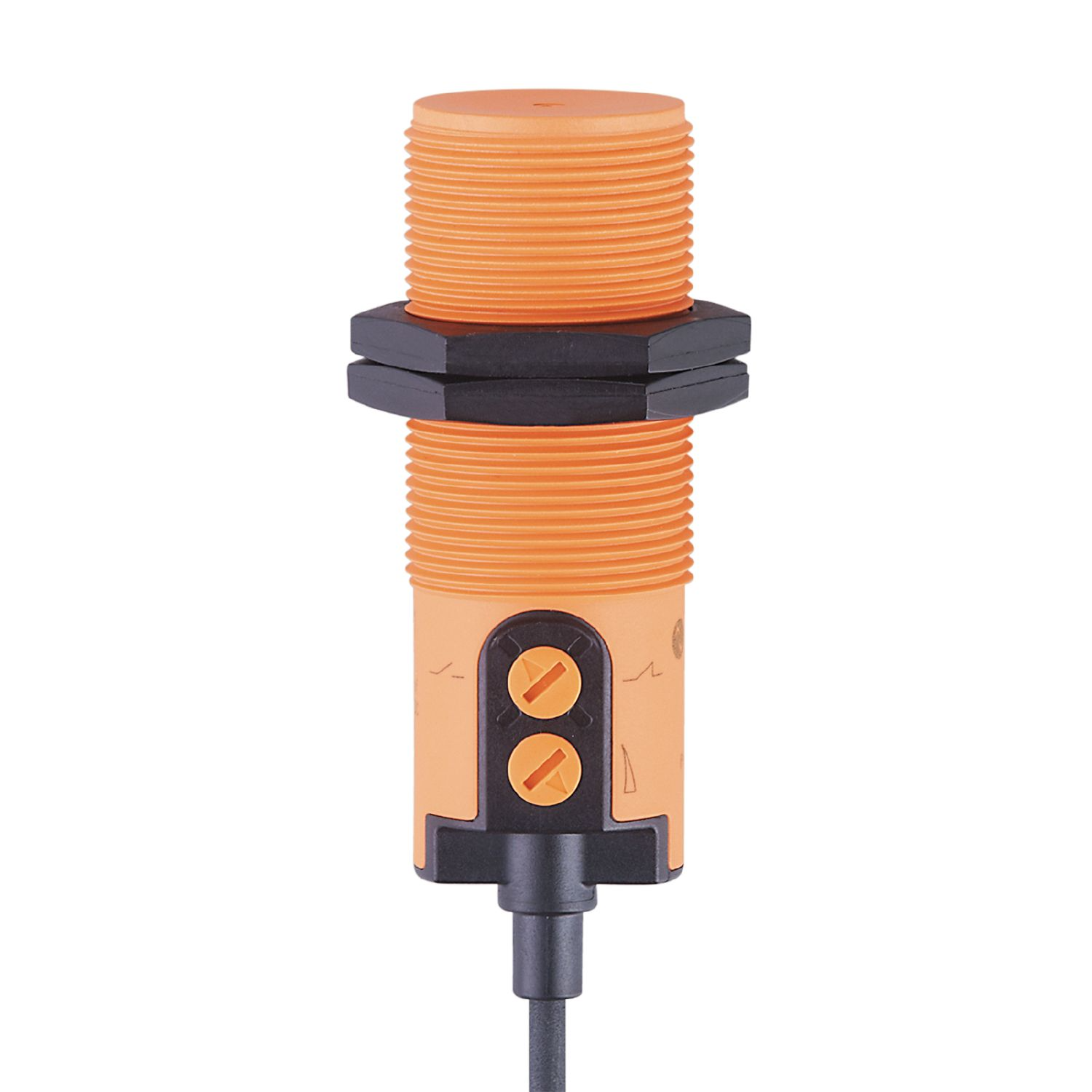

Capacitive sensor KI6001
-
NG # 003723-HW-IFM-O23
Manufactured by:
This
seller generally responds in under 48 hours
Easily adjustable sensing range With signal display for a perfect switch point High protection rating for the requirements of harsh industrial environments
Specification
Electrical design PNP Output function normally open / normally closed; (selectable) Sensing range[mm] 0.5...40 Communication interface IO-Link Housing threaded type Dimensions[mm] M30 x 1.5 / L = 92
Application
| Special feature | Optical setting aid |
| Medium temperature[°C] | -25...110 |
Electrical data
| Operating voltage[V] | 10...30 DC |
| Current consumption[mA] | < 22 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 200 |
| Switching frequency DC[Hz] | 30 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] | 0.5...40 |
| Sensing range adjustable | yes |
| Factory setting sensing range[mm] | 25 |
| Real sensing range Sr[mm] | 25 ± 10 % |
Accuracy / deviations
| Hysteresis[% of Sr] | 1...15 |
| Switch point drift[% of Sr] | -10...10 |
Interfaces
| Communication interface | IO-Link | ||||||||||
| Transmission type | COM2 (38,4 kBaud) | ||||||||||
| IO-Link revision | 1.1 | ||||||||||
| SDCI standard | IEC 61131-9 | ||||||||||
| Profiles |
| ||||||||||
| SIO mode | yes | ||||||||||
| Required master port type | A | ||||||||||
| Min. process cycle time[ms] | 20 | ||||||||||
| IO-Link functions (acyclical) | application specific tag; operating hours counter; normally open / normally closed (configurable); PNP / NPN (parametrierbar); switch point setting; Hysteresis | ||||||||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature[°C] | -25...80 |
| Protection | IP 65; IP 67; IP 69K |
Tests / approvals
| EMC |
| ||||||||||
| Vibration resistance |
| ||||||||||
| Shock resistance |
| ||||||||||
| UL approval |
|
Mechanical data
| Weight[g] | 100.2 |
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] | M30 x 1.5 / L = 92 |
| Thread designation | M30 x 1.5 |
| Materials | PBT; PC; POM |
Displays / operating elements
| Display |
| ||||||
| Optical setting aid | yes |
Accessories
| Items supplied |
|
Remarks
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Cable: 2 m, PUR, Ø 4 mm; 3 x 0.34 mm² |
Description
Use in high medium temperatures For position detection or level monitoring
