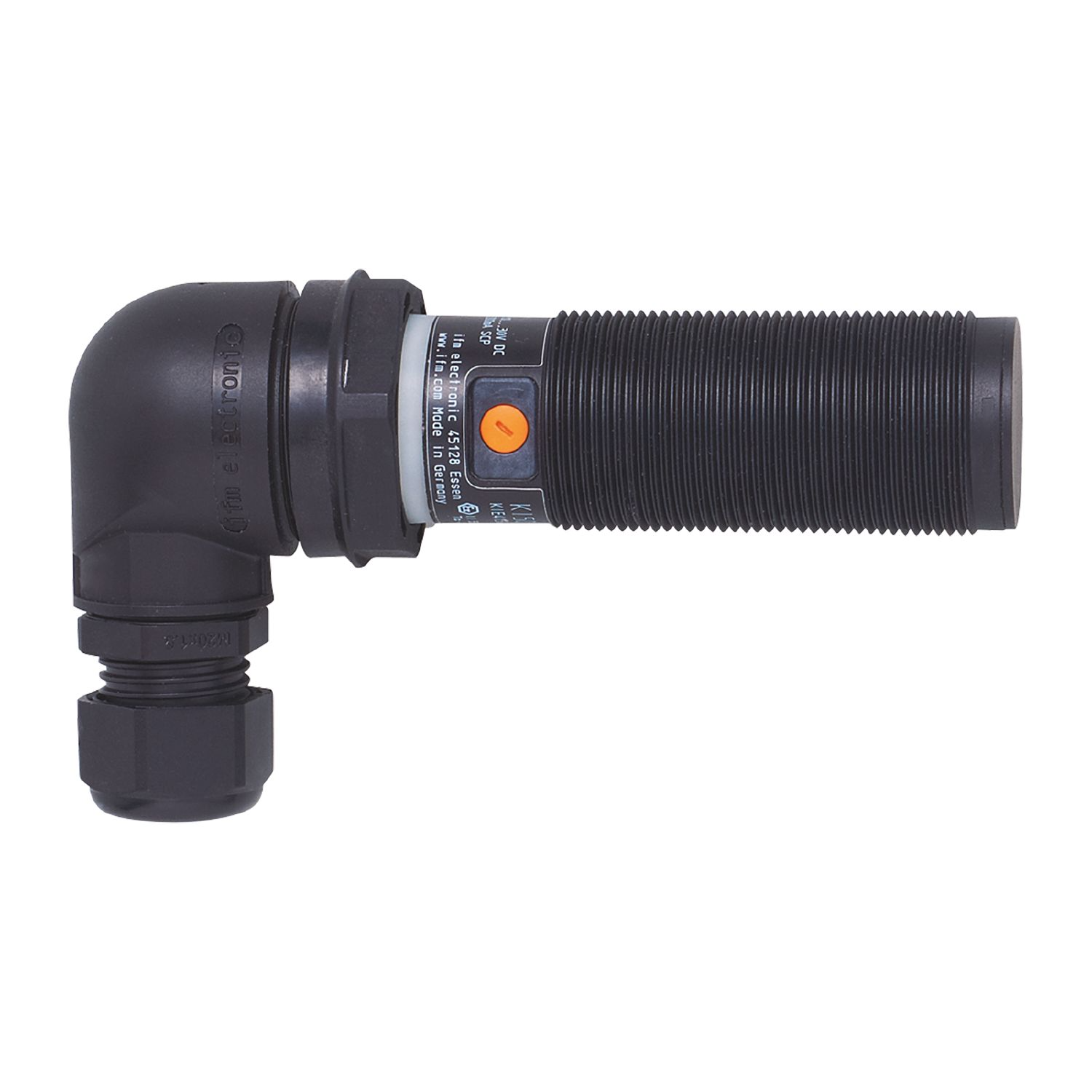

Capacitive sensor KI505A
TF:
003731-HW-IFM-O31
Overview
For applications in hazardous areas Easy setting of the sensing range via potentiometer
Clearly visible indication of the switching status
| Electrical design | PNP |
| Output function | complementary |
| Sensing range[mm] | 15 |
| Housing | threaded type |
| Dimensions[mm] | M30 x 1.5 / L = 125 |
Electrical data
| Operating voltage[V] | 10...30 DC |
| Current consumption[mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
| Measuring principle | capacitive |
Outputs
| Electrical design | PNP |
| Output function | complementary |
| Max. voltage drop switching output DC[V] | 2.5 |
| Max. leakage current[mA] | 0.1 |
| Permanent current rating of switching output DC[mA] | 200 |
| Switching frequency DC[Hz] | 10 |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] | 15 |
| Sensing range adjustable | yes |
| Factory setting sensing range[mm] | 15 |
| Real sensing range Sr[mm] | 15 ± 10 % |
Accuracy / deviations
| Hysteresis[% of Sr] | 1...15 |
| Switch point drift[% of Sr] | -20...20 |
Operating conditions
| Ambient temperature[°C] | -20...60 |
| Protection | IP 65; IP 67 |
Tests / approvals
| ATEX marking | |||||||||||||
| EMC |
| ||||||||||||
| MTTF[years] | 463 |
Mechanical data
| Weight[g] | 155 |
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] | M30 x 1.5 / L = 125 |
| Thread designation | M30 x 1.5 |
| Materials | PBT; PA |
Displays / operating elements
| Display |
|
Accessories
| Items supplied |
|
Remarks
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | terminals: 0.34...1.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5 |
Direct connection to plant control without switching amplifier Complementary output function NO/NC
