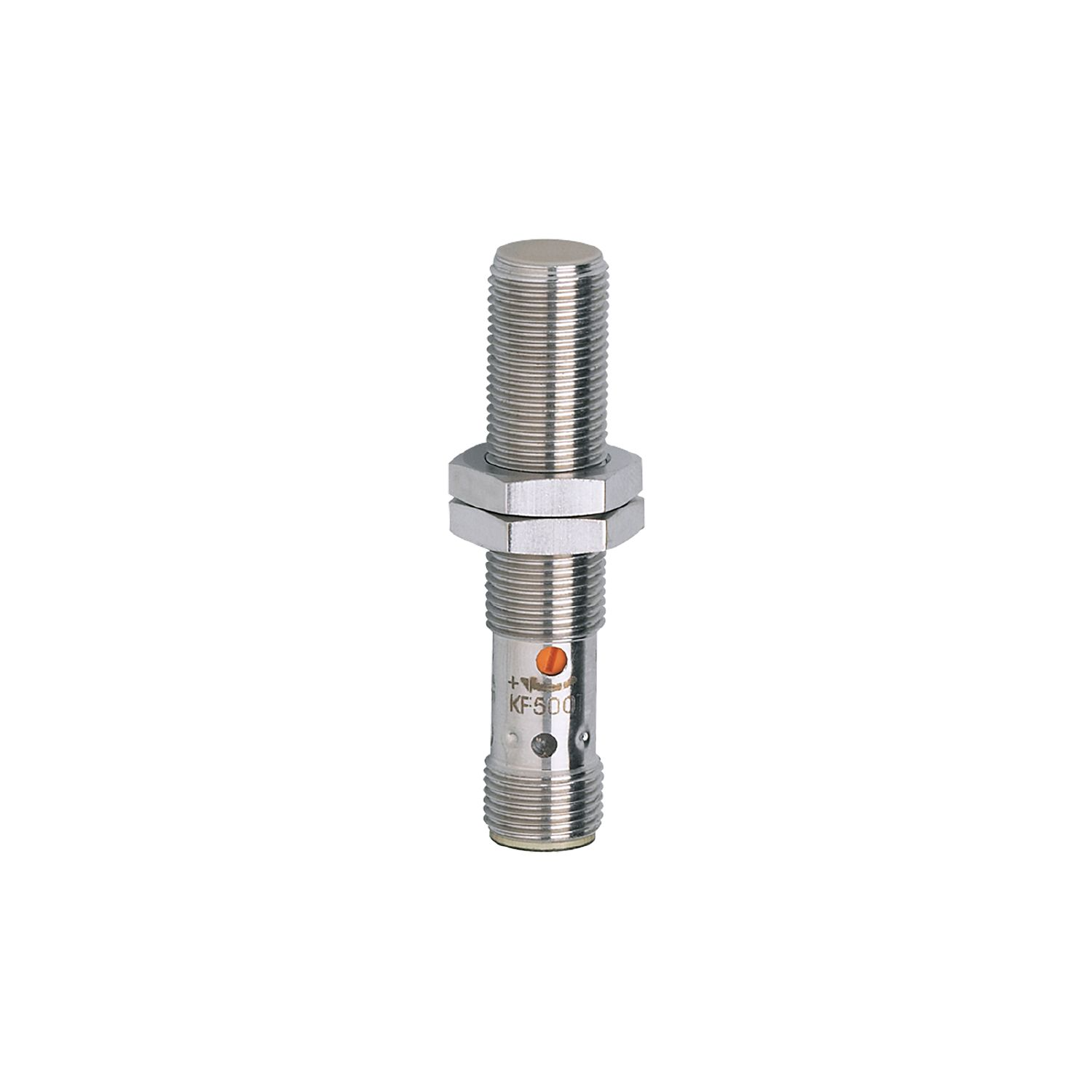

Capacitive sensor KF5001
-
NG # 003727-HW-IFM-O27
Manufactured by:
This
seller generally responds in under 48 hours
Compact and robust stainless steel housing easy setting of the sensing range via potentiometer
Specification
Electrical design PNP Output function normally open Max. voltage drop switching output DC[V] 2.5 Permanent current rating of switching output DC[mA] 100 Switching frequency DC[Hz] 50 Short-circuit proof yes Overload protection yes
Detection zone
| Sensing range[mm] | 1...6 |
| Sensing range adjustable | yes |
| Factory setting sensing range[mm] | 4 |
| Real sensing range Sr[mm] | 4 ± 10 % |
Accuracy / deviations
| Correction factor | glass: 0.6 / water: 1 / ceramics: 0.5 / PVC: 0.4 |
| Hysteresis[% of Sr] | 1...15 |
| Switch point drift[% of Sr] | -20...20 |
Operating conditions
| Ambient temperature[°C] | -25...70 |
| Protection | IP 65 |
| Increased immunity | yes |
Tests / approvals
| EMC |
| ||
| MTTF[years] | 636 |
Mechanical data
| Weight[g] | 39.3 |
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] | M12 x 1 / L = 60 |
| Thread designation | M12 x 1 |
| Materials | stainless steel (316L/1.4404); PEEK |
Displays / operating elements
| Display |
|
Accessories
| Items supplied |
|
Remarks
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A |
Description
Clearly visible indication of the switching status high noise immunity for position detection or level monitoring
