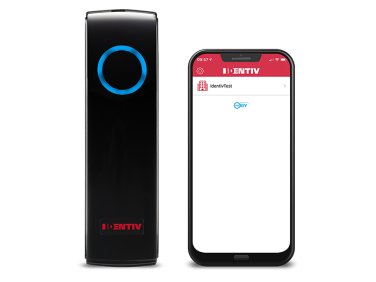

Identiv MobilisID
003201-HW-ABB-001
Overview
Identiv’s MobilisID is a smart mobile physical access control solution that uses the latest in Bluetooth and capacitive technologies to allow frictionless access to a controlled environment without the need to present a credential.
| Technology | 125 kHz HID, AWID, Farpointe Data, CASI-RUSCO |
| Devices Supported | iOS: 11.0 or Later Android: 6.0 or Later supporting BLE Peripheral Mode |
| Mounting | Mullion or U.S single-gang (using included adapter plate) |
| Dimensions | 6 in (15.2 cm) H x 1.7 in (4.3 cm) W x 1.3 in (3.3 cm) D |
| Certifications | FCC, Canada ISED, UL 294, and Bluetooth |
| Indoor/Outdoor Installation | Electronics potted and sealed with tamper-resistant epoxy |
| Current | 75 mA typical at 12VDC 135-155 mA max at 12VDC |
| Voltage | +6V to 16V +12V is recommended |
| Interface | Wiegand 26-37 bit |
| Operating Temperature | -27° F to 150° F (-33° C to 66° C) |
| Color | Black with clear surface |
| Cabling | Wiegand 500 ft (152 m) 18 AWG wire |
| Audio | 5 kHz buzzer |
The MobilisID system is an easy-to-install, cloud-managed physical access solution. By harnessing users’ current smartphones and tablets to transition from conventional physical cards to secure mobile credentials using powerful, multi-tech Bluetooth readers, the MobilisID system creates a secure and effortless way to approach physical access, keeping users on-the-go.
MobilisID allows complete frictionless access, no touching required. The app acts as a physical credential — just keep your mobile device with you, wave your hand near the reader, and the door unlocks. MobilisID can also integrate with ADA-compliant automatic door hardware to form a complete touchless solution.
