Identiv Hirsch Mx-1-ME Controller
-
NG # 003205-HW-IDENTV-005
Manufactured by:

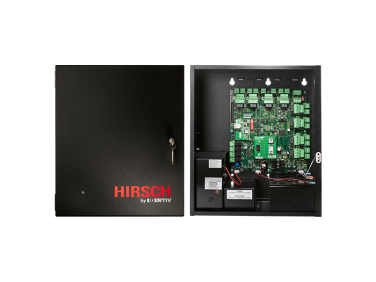

Identiv’s Hirsch Mx-1-ME (Metal Enclosure) Controller manages a single fully supervised door for controlled entry and exit at the edge, and is protected by a metal enclosure with battery backup and power supply.
Specification
Serial Interface Ports
Controller to controller:
• RS-485 multi-drop protocol (X*NET2, X*NET3)
• Up to 4,000 ft (1,200 m) with 22 gauge, 2 pair, stranded, twisted, and shielded
• FIPS AES 256 encrypted communication
OSDP Protocol
Controller to reader:
• Buzzer, LED and security assurance control
• Single port for entry and exit OSDP readers
• Up to 4,000 ft (1,200 m) with 18 gauge, 2 pair, stranded, twisted, and shielded
Wiegand Protocol
Onboard Wiegand:
• Industry standard Wiegand
• Reader ports: 2 (1 entry port and 1 exit port)
• Maximum wiring run: 500 ft (150 m) with 18 gauge, 2 pair, stranded, twisted, overall shield
Command and Control
Module (CCMx)
• Flash upgradeable
• CCM updates all microprocessors
• Time zones: 150
• Door groups: 128
• Control zones: 256
• Daylight savings time adjustment
SNIB3
Flash upgradeable with signed and encrypted firmware
• FIPS 140-2 AES 256 encryption
• 10/100/1000 Ethernet (TCP/IPv4 or v6)
Buffers
Standard: 1,500 events and 1,500 alarms
Users
Up to 500,000 credentials
Memory Protection Battery
10 days for code, setups, clock,and buffers
Security
• Enclosure door tamper switch
• Key lock
Enclosure
NEMA 1 Rated type with conduit knockouts and removable door
Dimensions
4.3 H x 14.3 W x 5.6 D in (36.32 H x 36.32 W x 14.22 D cm)
Weight
24 lbs (11 kg) w/ battery
Expansion Boards (Max 5) 6 H x 4.25 W x .75 D in (15.2 H x 10.8 W x 1.9 D cm)
Operating Temperature
Range
32° to 140°F (0° to 60°C)
Relative Humidity
0 to 90%, non-condensing
OSDP Keypad/Reader Power
(1 Terminal)
750mA at 12V (up to 2 readers), fused and resettable
Wiegand Keypad/Reader
(2 Terminals)
500mA per port @12V, fused and resetable. Note: When the door and AUX relays are configured at
12V/500mA, the max current draw for the Wiegand reader ports combined is limited to 750mA
Power Supply
AC INPUT 110 -240V, 50-60 Hz, fused. Built-in PSU module generates 5A @ 30V DC for the controller
and connected devices
Standby Batteries
2 X 12V, 1.3 AH VRLA connected in series included as standard for 24V back up.
Door Relay
• Dry 2A at 30V, Form C
• Wet 250mA @ 24V / 500mA @ 12V
Auxiliary Relay
Dry 2A at 30V, Form C
• Wet 250mA @ 24V / 500mA @ 12V
Listings and Approvals
• UL 294: Access Control Systems Units
• UL 1076: Proprietary Burglar Alarm Systems
Description
Identiv’s Hirsch Mx and Mx-1 are in good company with Mx-1-ME — the new model adds a metal enclosure, battery backup, and power supply to edge access controller.
