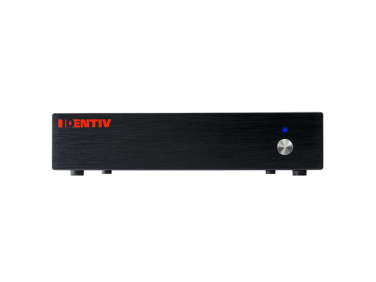

Identiv Enterphoneâ„¢ Cube Visitor Entry and Access Control Server
003202-HW-ABB-002
Overview
Each Enterphone Cube can manage a single panel or can be used as a distributed database appliance working with other Enterphone Cubes, Enterphone telephone entry panels, and Freedom Access Control
| CPU/Motherboard | Intel Dual-Core Celeron J1900AE (2.4GHz) Processor |
| Drive and RAM | 120GB Solid State Drive (SSD), 8GB DDR3 SODIMM |
| Power | DC12V 5A 60W AC Adapter (Fanless) |
| Software | Linux with an open architecture SQL database |
| Dimensions | 1.75 (H) x 8 (W) x 8 (D) in 3.6 lbs |
| Warranty | One (1) year Must be installed in a protected environment |
| Part Number | FR-50-24-MS2 |
The appliances are interconnected via WAN/LAN, can be mounted on
a rack or wall, and feature open interfaces to HR and IT database(s).
Enterphone Cube supports card readers through the addition of an IPbased Freedom Encryption Bridge and allows for unlimited users and cards,
administrative users, and schedules and groups.
Enterphone Cube is a bundled appliance that hosts web-based access control software for facilities requiring up to 16 card readers, elevator control, and telephone entry. Each Enterphone Cube can manage a single panel or can be used as a distributed database appliance working with other Enterphone Cubes, Enterphone telephone entry panels, and Primis access control. Enterphone Cube supports card readers through the addition of an IP-based Primis encryption bridge.
