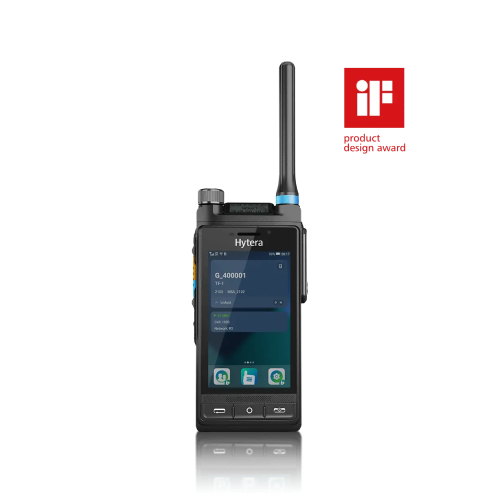

PTC760 Dual-mode Rugged Radio
TF:
001438-HW-Hytera-038
Overview
Combining a mission-critical radio and a smartphone into a single device, the PTC760 is completely TETRA and Android functional for mission-critical communication, photo taking, video and app integrity.
| Wireless Data Communication | |
|---|---|
| Narrow Band | 350-470 MHz;806-870MHz |
| LTE | 3GPP LTE; FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28; TDD-LTE: B38/B39/B40/B41 |
| CDMA | CDMA 1xRTT BC0; CDMA2000 1xEV-DO BC0 |
| WCDMA | B1/B2/B4/B5/B8 |
| GSM | 850/900/1800/1900 MHz |
| WLAN | 802.11 b/g/n, 2.4 GHz |
| NFC | 13.56 MHz (only the model of 350-470MHz is supported) |
| Positioning | GPS/BDS/GLONASS/Galileo/QZSS/A-GPS; Position performance for open zone: Horizontal position accuracy < 10 meters; TTFF(Cold boot)< 1 minute; TTFF(Hot boot)< 10 seconds |
| General | |
| Dimensions(H×W×D) mm | 139.5 mm x 68 mm x 26 mm |
| Weight | 378±5 g |
| Operating System | Android 10.0 |
| Peripheral Interface | 20PIN Accessory/Charging Port |
| Display | Top Screen: 1.0” 128x88 Color: black & white; Main Screen: 4.0" 1024x600, Color depth: 24bit; Capacitive, Touch screen, Gloves Proofed |
| Card Slots | 2x Micro SIM card; 1x Micro SD card; 1x Encryption card for narrowband |
| Camera | Front&Rear: 13MP, auto focus |
| Operating Voltage | 7.6 V (Rated) |
| Battery | 2900 mAh Li-polymer, 7.6V(Rated);4000mAh Smart Li-polymer, 7.6V(Optional) |
| Transceiver | |
| Channel Spacing | 25 kHz |
| TX Power | 1.8 W(Class 3L); 1 W(Class 4) |
| Environmental | |
| ESD | IEC 61000-4-2 Level 3 |
| Dust & Water Protection | IEC 60529-IP67 |
It has a large screen and powerful application adaptability. PTC760 not only ensures the reliability of mission-critical voice communication, but also matches the needs on high speed transmission, e.g. video talk, real-time video streaming and other integrated apps, making the very first move from single voice to multimedia services.
