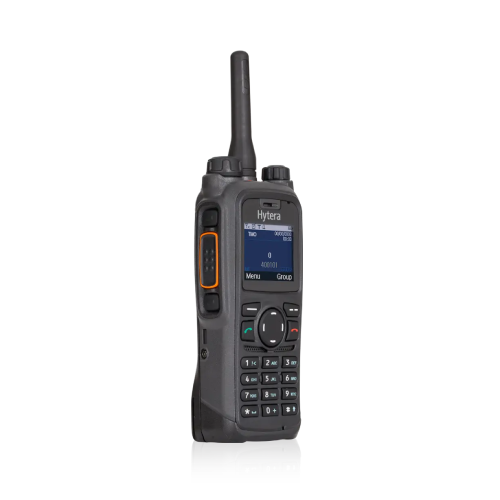

Hytera PT580H Plus UL913 Intrinsically Safe TETRA Portable Radio
TF:
001435-HW-Hytera-035
Overview
PT580H Plus UL913 Intrinsically Safe TETRA Portable Radio, compliant with IS standards of UL 913 and CSA, safely delivers clear voice calls amid noises at industrial sites where there is combustible and explosive dust or gases.
| General | |
|---|---|
| Frequency Range | 380-430 MHz; 405-475 MHz; 806-870 MHz |
| Dimensions(H×W×D) mm | 127.5 mm × 55 mm × 43 mm |
| Weight | 408 g(with 2400 mAh standard battery and antenna) |
| Operating Voltage | 7.4 V |
| Battery | 2400 mAh Li-lon battery |
| Battery Life (TMO 5/5/90 duty cycle) | >24 hours |
| User Interface | |
| Display | 1.8 inch，160*128 pixels，262144 colors |
| Talk Group-TMO | 6000 |
| Talk Group-DMO | 4000 |
| Telephone book | 2000 |
| Inbox | 400 |
| Outbox | 50 |
| Drafts | 50 |
| Folder-TMO | 200 |
| Folder-DMO | 50 |
| State Message | 200 |
| RF Specifications | |
| Channel Bandwidth | 25 kHz |
| RF Power Output | 1 W |
| RF Power Level Accuracy | ±2 dB |
| RF Power Control | 5 dB per step, 4 levels and 3 steps in total |
| Receiver Class | ETSI EN 392-2/396-2 Class A and Class B |
| RX Sensitivity(Static) | 806-870 MHz: ≤-115 dBm(typical-116 dBm); ≤-116 dBm(typical-118 dBm) |
| RX Sensitivity(Dynamic) | 806-870 MHz: ≤-106 dBm(typical-107 dBm); ≤-107 dBm(typical-109 dBm) |
| Audio Power Output | 2 W |
| GPS Specifications | |
| RX Sensitivity | -146 dBm acquisition sensitivity; -165 dBm tracking sensitivity |
| Horizontal Position Accuracy | ≤2.5 m (50% probable -130 dBm) |
| Cold Start (Time to First Fix) | 35 s |
| Hot Start (Time to First Fix) | 1 s |
| Note | Conditions: Open Sky environment, 130 dBm signal strength, 24 H static |
| Environmental | |
| Operating Temperature | -30ºC to +55ºC(hazardous environment); -30°C ~ +60°C (non-hazardous environment) |
| Storage Temperature | -40℃ ~ +85℃ |
| Dust & Water Protection | IP65/66/67/68 Per IEC60529 |
| Humidity | ETS 300-019-1-7 Class 7.3E; MIL-STD-810 G |
| Vibration,Drop&Shock | ETS 300-019-1-7 Class 5M3; MIL-STD-810 G; GJB150A-2009 |
As a heavy-duty radio, it is fully ruggedized to withstand shock, humidity, water or dust ingress, and other challenges. Features such as lone worker, man-down, and SOS alert make the radio an essential workplace safety equipment as well.
