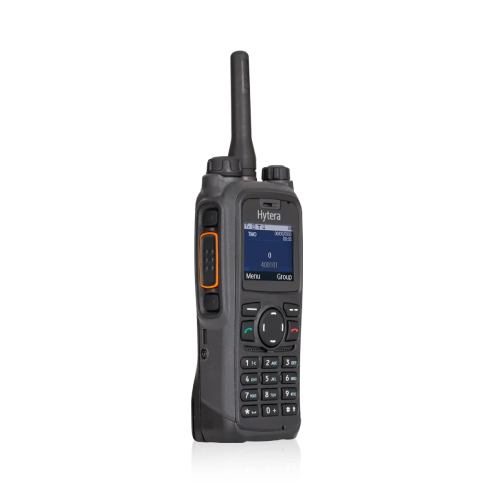

Hytera PT580H Plus Mission Critical TETRA Portable Radio
TF:
001432-HW-Hytera-032
Overview
PT580H Plus Mission Critical TETRA Portable Radio is engineered to facilitate reliable and secured communications from first responders.
| Frequency Range | 320-380 MHz; 380-430 MHz; 405-475 MHz; 806-870 MHz |
| Dimensions(H×W×D) mm | 127.5 mm × 55 mm × 36.5 mm（with 1800 mAh standard battery); 127.5 mm × 55 mm × 39.5 mm (with 2500 mAh option battery) |
| Weight | 368 g （with 1800 mAh standard battery and antenna） |
| Operating Voltage | 7.4 V |
| Battery | Standard: Li-Ion 1800 mAh;Optional: Li-Ion 2500 mAh |
| Battery Life (TMO 5/5/90 duty cycle) | >20 Hours (1800 mAh); >27 Hours (2500 mAh) |
| Display | 1.8 inch，160*128 pixels，262144 colors |
| Talk Group-TMO | 6000 |
| Talk Group-DMO | 4000 |
| Telephone book | 2000 |
The IP68-rated protection makes it weatherproof and users such as firefighters can bring it anywhere anytime. With its advanced noise canceling technology and 3-watt high-power design, PT580H Plus delivers clear voice calls amid noises across a wide range. Both algorithm and hardware encryption are adopted to secure voice and data transmission.
