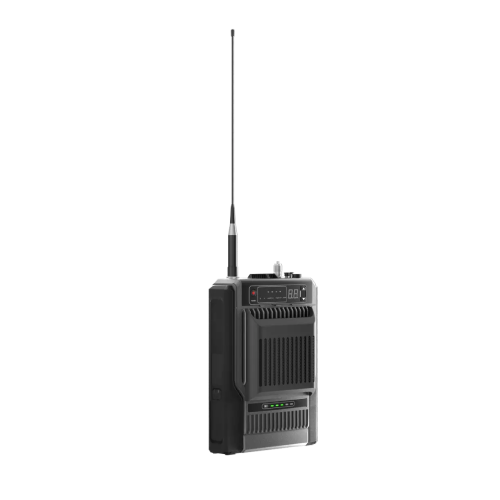

Hytera HR65X Compact DMR Repeater
TF:
001440-HW-Hytera-040
Overview
It is the new generation business-ready digital repeater designed to expand the communication range of your DMR radios.
| General | |
|---|---|
| Frequency Range | UHF: 400-470MHz;VHF: 136-174MHz |
| Channel Capacity | 1024 |
| Operating Voltage | DC: 14.4V±15% |
| Battery | 12.5Ah |
| Battey Life(50%Duty Cycle, High TX Power Transmit) | 25W: 4h 10W: 9h |
| Battery Weight | About 1.3kg |
| Current Drain(Standby) | ≤0.35A |
| Current Drain(transmit) | ≤6A |
| Dimensions(H×W×D) mm | 25W: 201mm x 211mm x 80.6mm ;10W: 201mm x 211mm x 65.8mm |
| Weight | 25W: 2.0kg ;10W: 1.9kg |
| Environmental | |
| Operating Temperature | -30℃ ~ +60℃ |
| Storage Temperature | -40℃~ +85℃ |
High performance and high reliability, the repeater ensures consistent, reliable, seamless voice and data communications your team need most. It is a top pick for hotels, office buildings, supermarkets, industrial parks, and more. Compact and lightweight, the repeater can be flexibly mounted to the wall or carried on the back by tailored accessories, uncompromising with on-site installation conditions. The rugged structure makes the repeater stand up to harsh environments. The repeater allows the communication connection anywhere you need.
