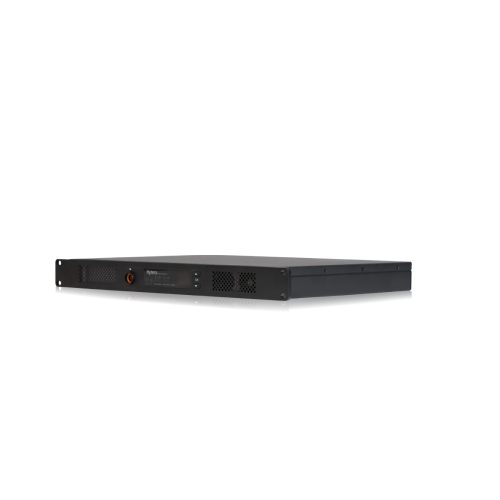

Hytera HR106X Ultra-thin DMR Repeater
TF:
001441-HW-Hytera-041
Overview
The HR106X Ultra-thin DMR Repeater is the next generation in creative style and functionality that elevates the industry standard in professional two-way radios.
| General | |
|---|---|
| Frequency Range | UHF:350-400 MHz 400-470 MHz 450-527 MHz 851MHz～869MHz，935MHz～941MHz (Transmit) 806MHz～824MHz，896MHz～902MHz (Receiver) VHF:136-174 MHz |
| Channel Capacity | 1024 |
| Operating Voltage | DC:13.6 V±15% AC:100-240 V |
| Current Drain(Standby) | DC:≤0.9 A AC:≤0.35 A |
| Current Drain(transmit) | DC:≤12 A AC:≤1.2 A |
| Dimensions(H×W×D) mm | 44 mm x 483 mm x 366 mm |
| Weight | 5.8 kg |
| Environmental | |
| Operating Temperature | -30℃～+60℃ |
| Storage Temperature | -40℃～+85℃ |
The HR106X is the new state-of-the-art in digital radio communications, providing a more efficient experience with loud and clear audio, support for multiple types of radio and communications systems, and extended range. The HR106X features AC and DC auto-switching power, two simultaneous TDMA voice channels, high performance cooling, all in a compact 1U form factor.
