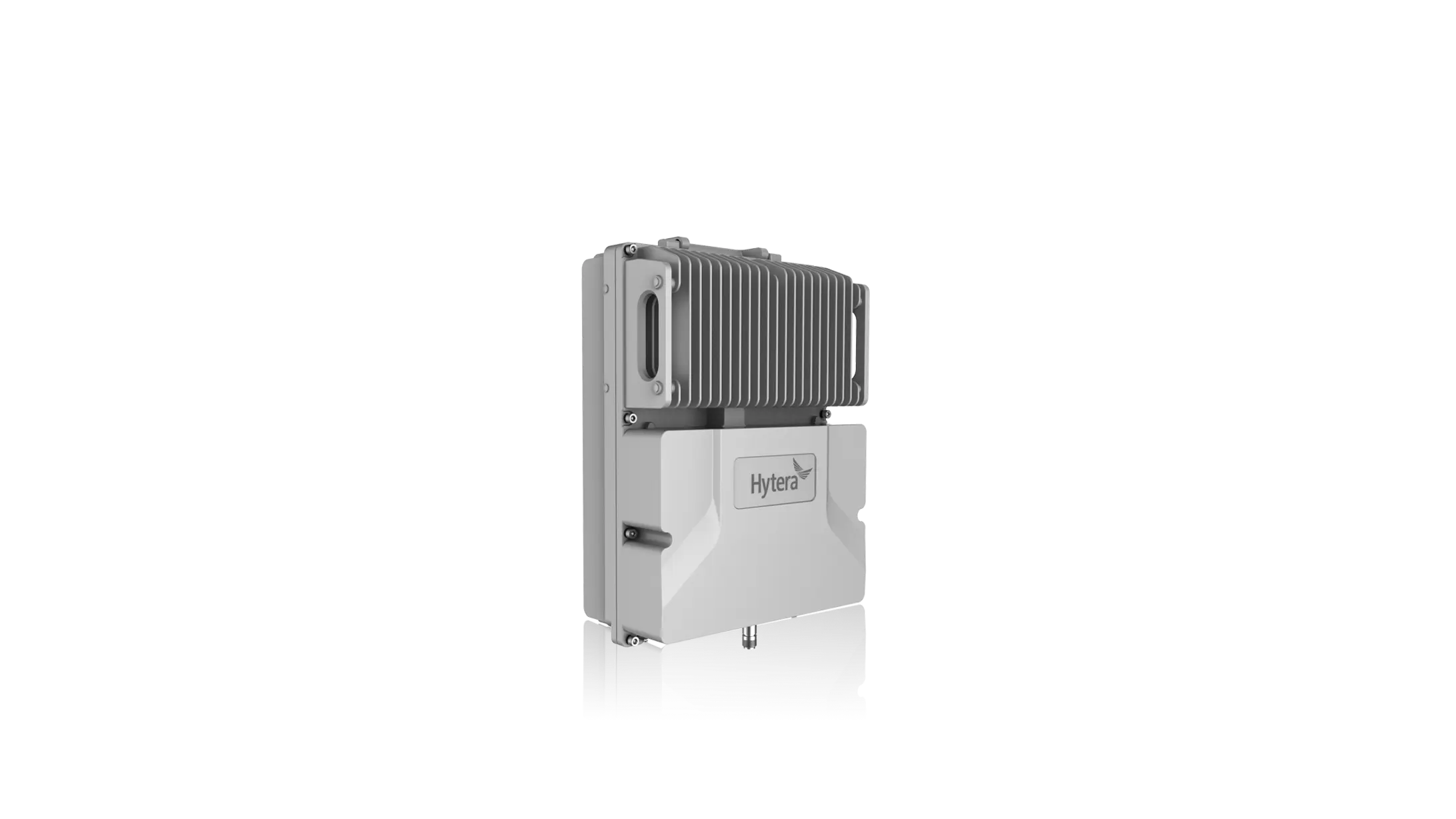

Hytera DS-9300 Bi-Directional Amplifier
-
NG # 001445-HW-Hytera-045
Manufactured by:
BDA (Bi-Directional Amplifier) is used to provide bidirectional communication between radio terminals and the base station in order to fit in any kind of environments.
Specification
Integrated RF BDA Dimensions(L×W×H)mm 188*162*28 Powered Supply Input: AC 220V, 50/60Hz, 0.5A Output: DC 5.0V/2.5A Power Consumption 15W(Max.) RF Connector SMA-F, 50Ω Dust & Water Protection IP40 Frequency Range 350M：361-366MHz(Downlink), 351-356MHz(Uplink) 860M：851-866MHz(Downlink), 806-821MHz(Uplink) Mean Time Between Failures(MTBF) ≥50000h Digital Fiber Optical BDA Dimensions(L×W×H)mm Donor Unit：320*442*44(cable-access),385*300*142( wireless-access) Remote Unit：385*300*142 Powered Supply AC 100~240V±10%,50±5Hz Power Consumption Remote Unit：≤100W Donor Unit：≤30W(cable-access),≤100W(wireless-access) RF Connector N/F, 50Ω Dust & Water Protection Donor Unit：IP20 Remote Unit：IP65 (And wireless-access donor unit ) Frequency Range 350-400MHz 400-470MHz 5MHz Working bandwidth Channel Capacity 1～16 Mean Time Between Failures(MTBF) 100000h
Description
It can be used outdoors to extend the coverage range of base station, making communication services available in areas with no or weak signals. Additionally, it can be used indoors as the signal source to improve signal strength. With a multichannel selecting unit, BDA can selectively amplify the signals, ensuring the frequency purity of repeated signals and the stability of output power.
