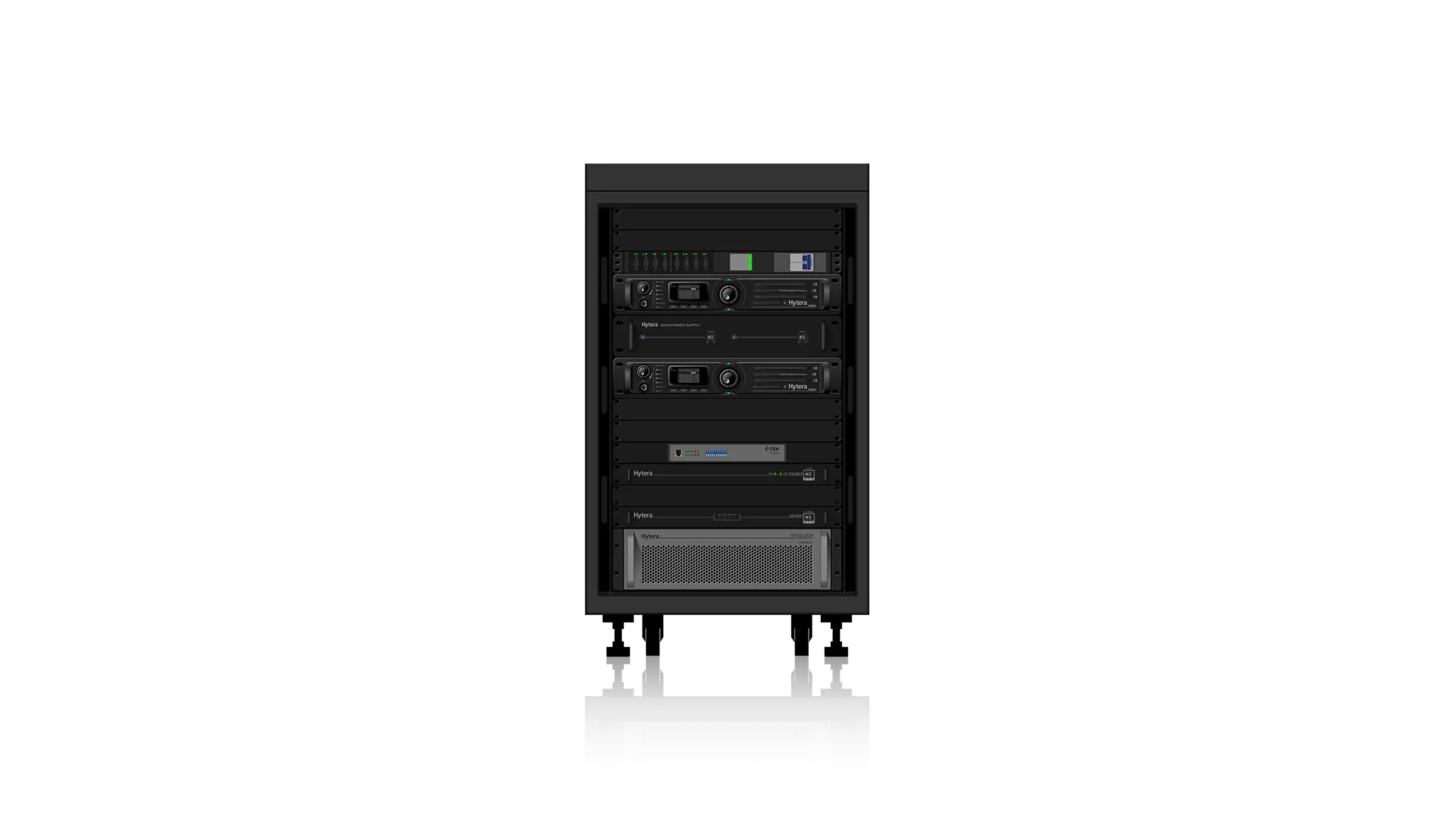

Hytera DS-6310 DMR Simulcast System
TF:
001444-HW-Hytera-044
Overview
Hytera DMR Simulcast System (DS-6310) is developed on the basis of the Digital Mobile Radio (DMR) Tier II standard, by following a set of principles such as simultaneous broadcasting, large coverage and smooth analog-to-digital migration.
| System Performance | |
|---|---|
| Max. BS Capacity | 512 |
| Number of Carrier Frequency | 500 |
| Subnet Capacity | 99 |
| Certification | CE/FCC/IC |
| BS Specificaition | |
| Standard Compliance | DMR |
| Frequency Range | UHF3：330-400MHz; Wireless BS; VHF：136-174MHz; UHF1：400-470MHz; Wired BS: |
| Carrier Capacity | 500 |
| Dimensions(H×W×D) mm | Wired BS:; Single-carrierDual-carrier BS (VHF): 1,200 mm × 600 mm × 600 mm; Wireless BS: 900 mm × 600 mm × 600 mm; Dual-carrier BS (UHF): 900 mm × 600 mm × 600 mm; Single-carrier BS (UHF): 355 mm × |
| Weight | Single-carrier BS (UHF): ≤50 kg; Dual-carrier BS (UHF)/Single-carrier BS (VHF)/Dual-carrier BS (VHF): ≤400 W; Wired BS; Wireless BS：≤110 kg |
| Operating Temperature | Extreme: -30 °C to +60 °C; Normal: +15 °C to +35 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 20% to 90% RH (non-condensing) |
| Receiver | |
| RX Sensitivity(Static) | Wired BS：; Dual-carrier BS (UHF): -118 dBm@BER5%; Wireless BS: -118 dBm@BER5%; Single-carrier BS (VHF): -115.96 dBm@BER5%; Dual-carrier BS (VHF): -120.9 dBm@BER5%; Single-carrier BS (UHF): -116 dBm@BE |
| Transmitter | |
| Adjust Power Range | 5 to 50 W (CHU) |
It can fully meet the requirements of the users who need an easy to set up, easy to use and reliable communication network with even one pair of frequency over a wide area.
