Hytera DS-6211 DMR Trunking Lite Base Station
TF:
001443-HW-Hytera-043
Overview

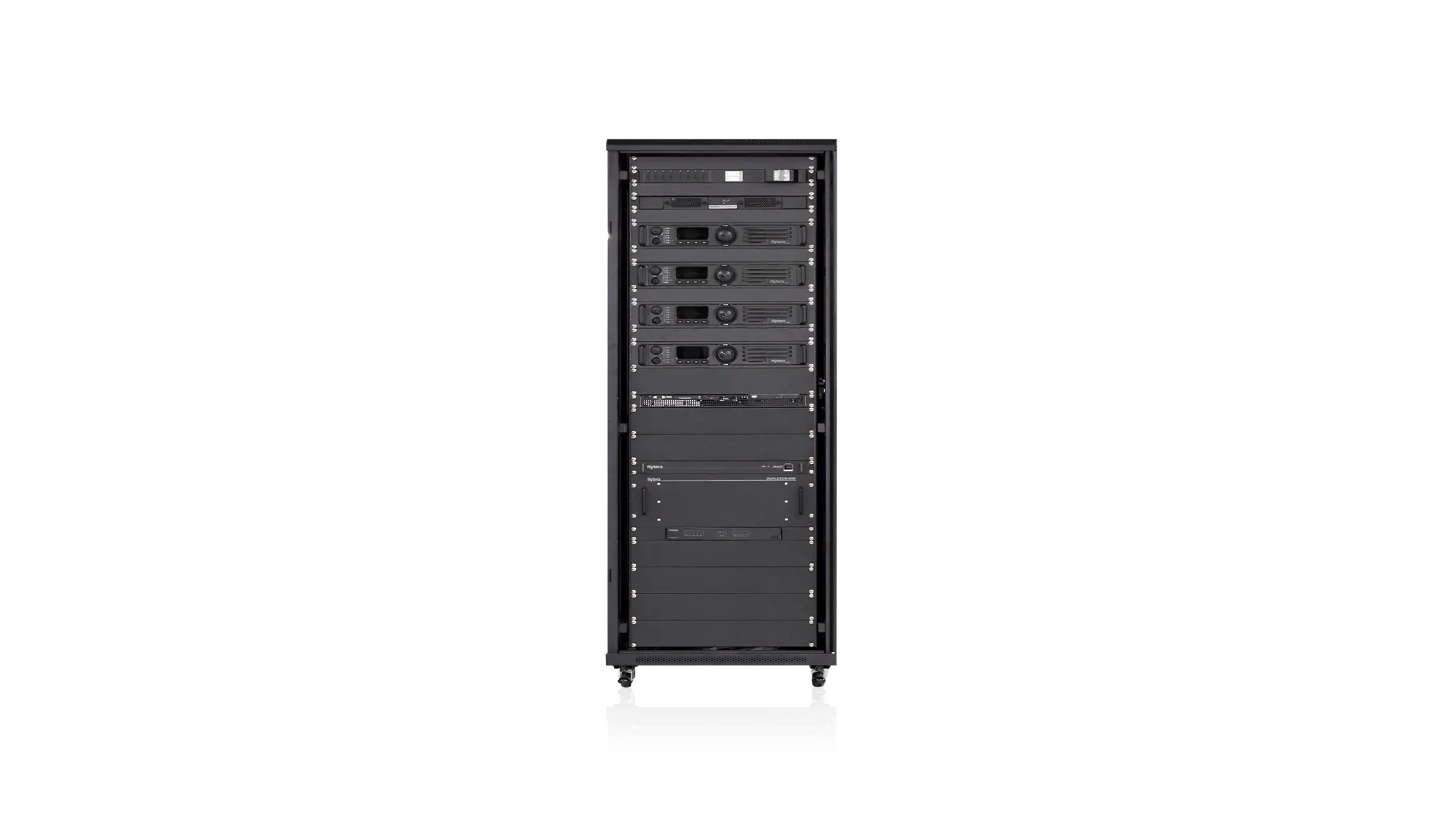

Hytera DS-6211 DMR Trunking Lite Base Station is a digital trunking base station based on ETSI open standard DMR Tier 3.The focus is on transportation, energy resource, public utilities, public safety, etc.
| System Performance | |
|---|---|
| Subscriber Capacity per MSO | 10000 |
| Max. Number of Memberships | 1000000 |
| Max. Number of Interconnected MSOs | ≤128 |
| MS Capacity per BS | 500 |
| BS Specificaition | |
| Standard Compliance | PDT/DMR |
| Frequency Range | UHF1：400-470MHz;UHF2：450-520MHz;UHF3：330-400MHz;VHF：136-174MHz |
| Carrier Capacity | 1-8 carriers（Maximum up to 24 carriers） |
| Power Supply | DC 48V; AC 220V |
| Clock Synchronization | GPS/PTP |
| Operating Temperature | Extreme: –30 to +60°C; Normal: 15 to 35°C |
| Storage Temperature | –40°C to +85°C |
| Receiver | |
| RX Sensitivity(Static) | -118dBm@BER≤5% |
| Transmitter | |
| Adjust Power Range | 5W - 100 W |
With advanced design, Hytera DMR Trunking Lite Base Station is provided with special features such as smooth migration, flexible networking and rich functionalities.
