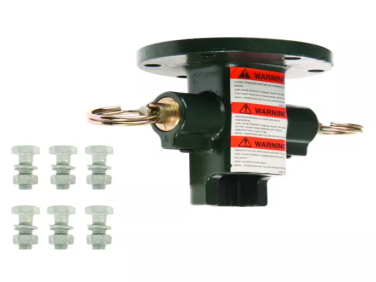

Hubbell Anchor, Tool, SS5/SS150/RR Drive Wrench with integral pins
-
NG # 2563-HW-HUBBELL-011
-
MF # C3031650
Manufactured by:
Specification
General
Application: Anchor/Pile Installation
Attachment Style: Kelly Bar Adapter
Bolt Grade: 5
Catalog Number: C3031650
Coating: Painted
Drive Wrench Anchor Type: SS5 Anchor, SS150 Anchor, RR Anchor
EU RoHS Indicator: No
Number of Bolt Holes: 6
Torque Rating: 7000 ft-lbs
Type: Anchor/Pile Installation Tools
UPC: 096359531258
Dimensions
Anchor Installation Hole Size: 0.5 in
Diameter - Bolt: 0.5 in
Diameter - Bolt Circle: 5.25 in
Weight: 10 lb
Logistics
Standard Package Quantity: 1
Description
SS5/SS150/RR Drive Tool for use with 5 1/4" (133.5 mm) bolt circle Kelly Bar Adapter with Integral Pins.
Ensure your crews are ready to properly and safely install anchors by selecting CHANCE anchors and installation tooling.
- These tools include our proprietary Alignment Window that helps reduce chance of finger pinch when anchor is inserted into tool.
- These drive tools require the appropriate Kelly bar adapter, sold separately
- Each comes with bolts, nuts and lockwashers.
- Each of these drive tools includes an integral set of locking dogs that attach the drive tool to the anchor.
