Hubbell Anchor, Tool, Locking Dog Assembly, 10,000 ft-lb rating
-
NG # 2557-HW-HUBBELL-005
-
MF # C3030069HD
Manufactured by:
Specification
General Information
Application:
Designed for use in anchor and pile installation tasks, this tool is suitable for high-torque operations involving bolt anchoring systems.
Type:
Anchor/Pile Installation Tool
Catalog Number:
C3030069HD
Bolt Grade:
Grade 5
Coating:
Painted for corrosion resistance and added durability in harsh environments.
EU RoHS Compliance:
No
Number of Bolt Holes:
6
Torque Rating:
10,000 ft-lbs
UPC Code:
096359014867
Physical Dimensions
Anchor Installation Hole Size:
0.5 in
Bolt Diameter:
0.5 in
Bolt Circle Diameter:
5.25 in
Overall Dimensions:
9.000 in (L) x 9.000 in (W) x 6.000 in (H)
Length:
9 in
Width:
9 in
Height:
6 in
Weight:
20.58 lb
Certifications & Compliance
Buy American Compliant:
Contact Manufacturer for Compliance Confirmation
Logistics & Packaging
Standard Package Quantity:
1 unit per package
Pallet Quantity:
80 units per pallet
Description

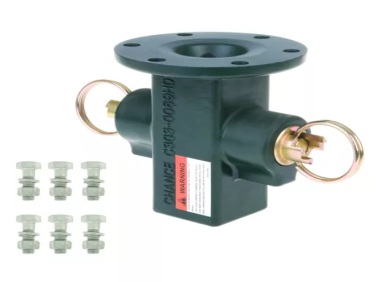

Complete Standard Locking Dog Assembly.
Ensure your crews are ready to properly and safely install anchors by selecting CHANCE anchors and installation tooling.
- Locking Dog Assembly bolts to Kelly Bar Adapter and attaches to Anchor Drive Wrench
- STANDARD Locking Dog Assembly has six holes for 1/2" bolts on a 5-1/4" bolt circle, comes with six 1/2" Grade 5 bolts, nuts and lock washers.
