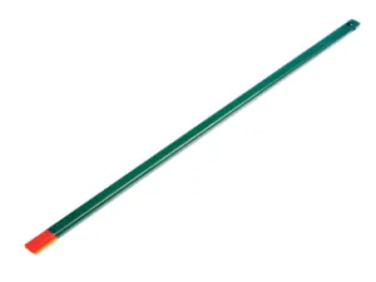

Hubbell Anchor, Tool, Drive End Wrench, Red Band, rated 15,000 ft-lbs, 7ft long
-
NG # 2554-HW-HUBBELL-002
-
MF # C3030983
Manufactured by:
Specification
General Information
Product Type: Anchor/Pile Installation Tool
Application: Designed specifically for anchor and pile installation operations
Catalog Number: C3030983
Coating: Painted finish for added durability
Color Code: Red
Torque Rating: Up to 15,000 ft-lbs
Drive Wrench Anchor Type Compatibility:
15,000 ft-lb Tough One (Large Hub)
10,000 ft-lb Tough One (Large Hub)
6,000 ft-lb Pisa 6
7,000 ft-lb Pisa 8
EU RoHS Compliance: No
Type: Heavy-duty installation tool designed for high-torque anchor/pile applications
UPC: 096359015420
Physical Dimensions
Length: 84.00 inches
Width: 2.50 inches
Height: 2.50 inches
Inside Dimension: 1.54 inches
Outside Dimension: 2.44 inches
Weight: 67.62 lbs
Certifications & Compliance
Buy American Act Compliant: Contact manufacturer for confirmation
Packaging & Logistics
Standard Package Quantity: 1 unit per package
Description
15K 7' Drive End Wrench.
Ensure your crews are ready to properly and safely install anchors by selecting CHANCE anchors and installation tooling.
- The Anchor Drive End Wrench transmits the torque from the Kelly bar of the digger to the hub of the Power-Installed Screw Anchor
- A complete tool system consists of: kelly bar adapter, torque indicator, locking dog assembly and drive end wrench.
