Hubbell Anchor, Tool, Drive End Wrench, Orange Band, rated 10,000 ft-lbs, 7ft long
-
NG # 2553-HW-HUBBELL-001
-
MF # C1021583
Manufactured by:
This
seller generally responds in under 48 hours
Specification
General Information
- Product Type: Earth Anchor Tool
- Application: Anchor / Pile Installation
- Catalog Number: C1021583
- Coating: Painted
- Color Code: Orange
- Drive Wrench Anchor Type:
- 10,000 Ft-Lbs Tough One (Small Hub)
- 6,000 Ft-Lbs Mid-Strength
- Torque Rating: 10,000 ft-lbs
- EU RoHS Indicator: No
- UPC: 096359008439
Dimensions & Weight
- Overall Dimensions (L x W x H): 84.000 in x 2.250 in x 2.250 in
- Length: 84 in
- Width: 2.25 in
- Height: 2.25 in
- Outside Dimension: 2.16 in
- Inside Dimension: 1.46 in
- Weight: 55.86 lb
Certifications & Compliance
- Buy American Compliant: Contact Manufacturer for Details
Packaging & Logistics
- Standard Package Quantity: 1
Description

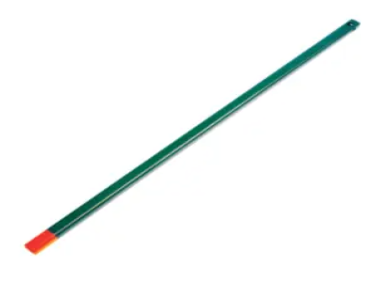

1 3/8" X 7' Drive End Wrench.
Ensure your crews are ready to properly and safely install anchors by selecting CHANCE anchors and installation tooling.
- The Anchor Drive End Wrench transmits the torque from the Kelly bar of the digger to the hub of the Power-Installed Screw Anchor
- A complete tool system consists of: kelly bar adapter, torque indicator, locking dog assembly and drive end wrench.
