Getac X600 Server
TF:
003222-HW-Getac-022
Overview
Getac X600 Server, Your Fully-Rugged Mobile Command Server With data exchange, storage, and management capabilities in a fully-rugged notebook, X600 Server enables mobile command and control.
| Operating System | Windows Server 2022 |
| Mobile Computing Platform | Intel® Xeon® W-11865MRE vPro® Processor Max. 4.7GHz with Intel® Turbo Boost Technology - 24MB Intel® Smart Cache |
| Graphics | Intel® UHD Graphics |
| Display | 15.6" TFT LCD FHD (1920 x 1080) Protection film 1,000 nits LumiBond display with Getac sunlight readable technology Optional: Capacitive multi-touch screen |
| Storage & Memory | 32GB DDR4 Optional: 64GB / 128GB DDR4 1TB Enterprise PCIe SSD Optional: 2TB Enterprise PCIe SSD Optional: 2nd Storage: 1TB / 2TB Enterprise PCIe SSD Optional: 3rd Storage: 1TB / 2TB Enterprise PCIe SSD Disk management: RAID 5 i |
| Keyboard | LED backlit membrane keyboard with integrated numeric keypad |
| Pointing Device | Touchscreen - Optional: Capacitive multi-touch screen Touchpad - Touchpad with two buttons |
| Expansion Slot | Smart card reader Optional: ExpressCard 54 + PCMCIA Type II ii Optional: 2nd ExpressCard 54 or 2nd PCMCIA Type II iii Optional: SD card reader |
| Multimedia Bay | Optional: DVD super multi drive ii, iv or Blu-Ray super multi drive iv |
| X Bay | Optional: Enterprise SATA SSD 4TB (1TB x 4) maximum expandable to 16TB (2TB x 8) Disk management: RAID 0, RAID 1, RAID 5 |
| I/O Interface | 5MP webcam x 1 Thunderbolt™ 4 Type C x 1 xvii USB 3.2 Gen 2 Type-A x 4 LAN (RJ-45) x 2 Audio in/out combo x 1 DC in Jack x 1 HDMI 2.0 x 1 Display port x 1 Serial port (9-pin; D-sub) x 1 External VGA (15-pin; D-sub) x1 or 2nd serial port (9-pin; D-sub) x 1 v Optional: 3rd Serial port (9-pin; D-sub) x 1 ii |
| Communication Interface | 2.5GBASE-T Ethernet |
| Security Feature | TPM 2.0 Kensington lock Smart card reader Intel ® vPro ® Technology Getac Disk Wipe xvi Optional: Absolute Persistence® |
| Power | AC adapter (230W, 100-240VAC, 50/60Hz) Battery (10.8V, typical 6900mAh; min. 6600mAh) x 2 Optional: Battery (10.8V, typical 6900mAh; min. 6600mAh) x 2 ii |

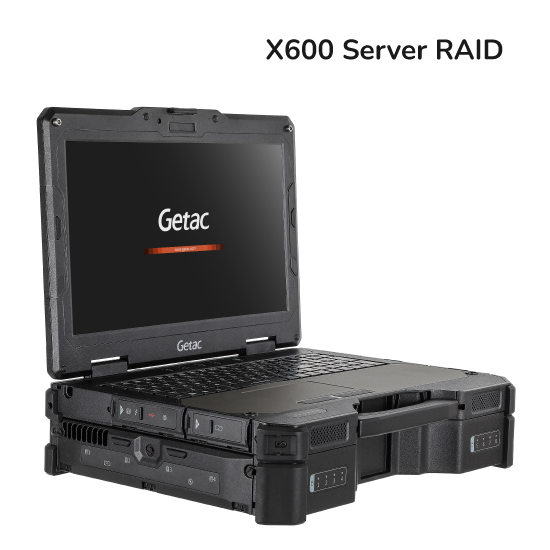

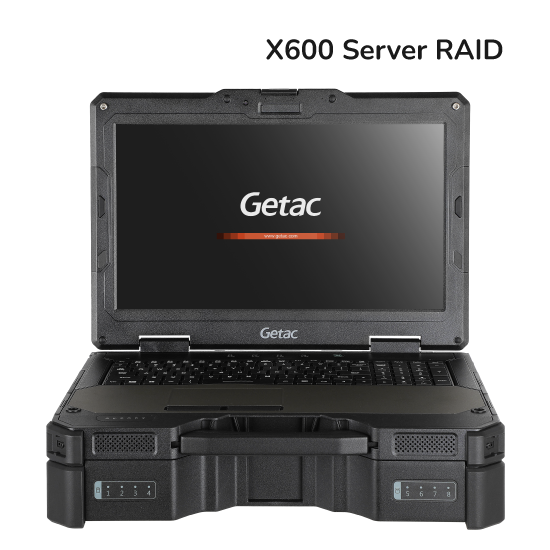

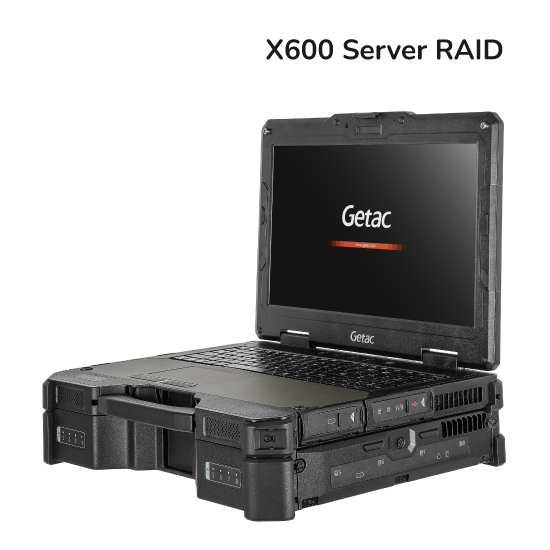

| Dimension (W x D x H) & Weight | X600 Server: 412 x 322 x 52.5mm (16.22" x 12.68" x 2.07") vii 4.41kg (9.72lbs) vi, vii X600 Server RAID: 412 x 322 x 108.8mm (16.22" x 12.68 x 4.28") viii 8.51kg (18.76lbs) vi, viii |
| Rugged Feature | MIL-STD-810H certified IP66 certified MIL-STD-461G certified ix Vibration and 3ft (0.9m) drop resistant x |
| Environmental Specification | Temperature xi : - Operating: -29°C to 63°C / -20°F to 145°F - Storage: -51°C to 71°C / -60°F to 160°F Humidity: - 95% RH, non-condensing |
| Pre-installed Software | Getac Utility Optional: Absolute Secure Endpoint Optional: Absolute Secure Access |
| Accessories | Battery (10.8V, typical 6900mAh; min. 6600mAh) x 2 xii AC adapter (150W, 100-240VAC, 50/60Hz) xii Capacitive stylus with tether Optional: Backpack Battery (10.8V, typical 6900mAh; min. 6600mAh) Multi-Bay charger (Dual-Bay) Multimedia bay DVD super multi drive ii, iv Multimedia bay Blu-Ray super multi drive iv AC adapter (150W, 100-240VAC, 50/60Hz) xiii AC adapter (230W, 100-240VAC, 50/60Hz) MIL-STD-461 AC adapter (230W, 100-240VAC) ix Capacitive stylus with tether Protection film Spare SSD kit xiv X-Bay SSD kit xv |
| Bumper-to-Bumper Warranty | Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime. That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs. Bumper-toBumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days. Standard 3 years Bumper-to-Bumper |
A fully-functional commercial off-the-shelf (COTS) mobile server that folds to a slim portable profile, X600 Server is designed for field agility while retaining comprehensive server capability. It is a fully-rugged and highly-versatile laptop that delivers the capabilities of a cabinet-housed mobile server, deployable in mobile command-and-control scenarios at a moment's notice.
