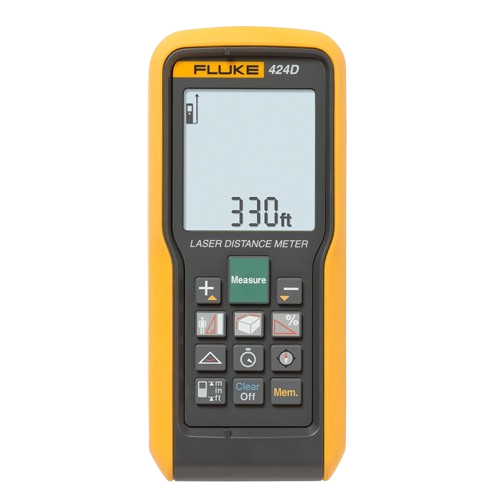

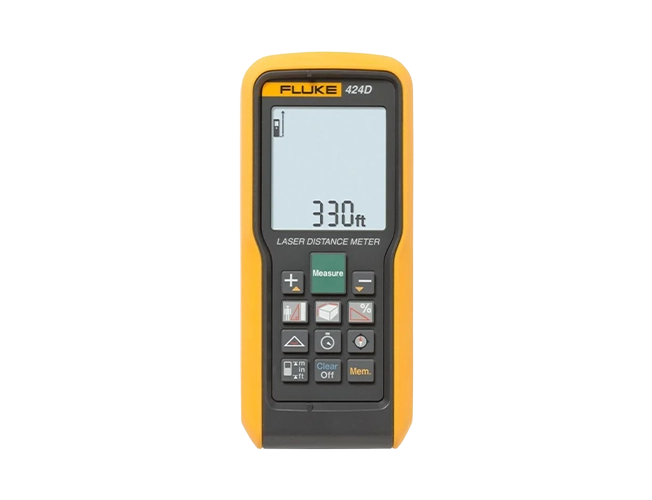

Laser distance meter Fluke 4D series
-
NG # 00220-HW-FLUKE-021
Manufactured by:
This professional-grade laser distance meter is fast and easy to use improving accuracy and reducing measurement errors.
Specification
| Distance Measurement | Typical measuring tolerance: ±1 mm Maximum measuring tolerance: ±2 mm 3 Range at Leica target plate: 330' (100 m) Typical range: 260' (80 m) Range at unfavorable condition: 195' (60 m) Smallest unit displayed: 6/30/60 mm (10/50/100 m) Diameter laser point at distances: 6/30/60 mm (10/50/100 m) |
| Tilt Measurement | Measuring tolerance to laser beam: ±0.2° Measuring tolerance to housing: ±0.2° Range: 360° |
| Laser | Class: 2 Type: 635 nm, <1 mW Automatic laser off: After 90 seconds |
| Calibration Cycle | Tilt and compass |
| Environmental | Operating temperature: 14 to 122°F (-10 to 50°C) Storage temperature: -13 to 158°F (-25 to 70°C) Maximum relative humidity: 85% at 20 to 120°F (-7 to 50°C) Maximum altitude: 9842.52' (3000 m) Protection class: IP54 |
| Safety | IEC Standard No. 61010-1:2001 EN60825-1:2007 (Class II) |
| EMC | EN 55022:2010 EN 61000-4-3:2010 EN 61000-4-8:2010 |
| Power | Battery type: 2 x AAA 1.5 V NEDA 24A/IEC LR03 Battery life: Up to 5000 measurements |
| Dimensions | 5 x 2.2 x 1.3" (127 x 56 x 33 mm) |
| Weight | 5.57 oz (158 g) with batteries |
Description
Trade your heavy tape measure for Fluke laser measuring tools, which let you simply take measurements with one hand. No matter your job, the laser distance meter will help you measure farther, with greater accuracy and in more situations, saving you time and money.
•Instantly measure up to 100 meters (330 ft) - Just point, click and you're done.
•Measure accurately up to +/- 1 mm. No scales to interpret or misread.
•Do the work of two people on your own. Easily measure hard-to-access areas, such as high ceilings, without climbing a ladder.
•Reduce estimating errors - let the laser meter do the math.
