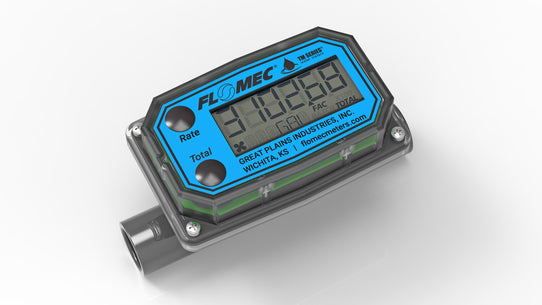

Flomec TM Series Water Flow Meter
002702-HW-FLOMEC-002
Overview
FLOMEC® (GPI) TM Series Water Meters are durable, lightweight, and economical turbine-style meters designed for water processing, irrigation, and sub-metering, featuring Sch 80 PVC construction. Available in 1/2 to 4-inch sizes, they offer ±3% accuracy, low-profile digital displays for rate/total, and various fittings (NPT, BSP, Spigot, Flange).
- Features highly visible Q9, battery-powered, LCD display; 2-year battery life
- 11 pre-programmed engineering units plus 1 custom option: gallon, litre, imperial gallon, quart, ounce, acre-foot, millilitre, cubic foot, cubic centimetre, cubic metre, barrel
- Easy to install
- Modular design allows for use with output modules, sensors, and remote display kits; plug and play
- Displays in gallons, litres and cubic feet
- Indicates Batch, Cumulative Totals and Rate of Flow
- Available in NPT, BSPP, Spigot
- Non-volatile totals means amounts are retained when batteries are replaced or power is lost
- Technology: Turbine
- Flow Range: 3.8 - 760 L/min (Size Dependant)
- Accuracy: ± 3%
- Pressure Rating: 10.3 bar (150 psi)
- Operating Temperature Range: 0° C - 60° C
TM Series Water Meters indicate batch, cumulative totals, and rate of flow measured in gallons, litres or cubic feet. They are easy to install with Spigot, NPT, BSP, 150# ANSI flange, or DIN flange fittings. The alkaline battery lasts for two years, and the non-volatile totals mean amounts are retained when batteries are replaced or power is lost. TM Series meters are available with either a computer for local electronic display, or one of three versions of output modules to provide a digital signal to customer interfacing equipment.
