Flomec RT14 Series Flow Rate Totaliser
002721-HW-FLOMEC-021
Overview
The EB40 single-stage batch controller combines user-friendly installation and operation with rugged durability, making it the perfect solution for a wide range of applications.
Just pair it with a Flomec meter for precise and efficient control of your process resulting in consistent product every time. Take control with our intuitive 4-button interface.
- Instrument Type: Batch Controller
- Mounting Type: Meter and Stem Mount, Wall, Pipe or Panel mount
- Operating Temperature Range: -30°C - 80°C
- Engineering Units: Litres, Cubic Metres, US Gallons, Imperial Gallons, Millilitres (Cubic Centimetres), Quarts, Fluid Ounces, Cubic Feet, Barrels, Kilograms, Pounds, or Custom.
- Display & Totals: Large dual line LCD with 6 characters 17mm high on top line, 8 characters 7mm high on bottom line. Backlit (external power)
- Control Option: Single Stage
- Input Types & Frequency: Reed Switch – (120Hz), NPN (hall effect sensor) – (2kHz), Variable Reluctance Coils (Turbine Flowmeters) – (2kHz), Weigand Sensors (voltage pulse signals) – (2kHz), Coil (15mV pk-pk min.)
- Control Outputs: NPN (open collector, sinking) output, 30Vdc / 1A maximum
- Enclosure: Glass reinforced Nylon (PA6) with a Polycarbonate lens, Santoprene gasket, polyester decal. Enclosure provides an IP rating of IP65 Optional powder coated Aluminium enclosure
- Power Requirements: Regulated 12V ~ 30V DC

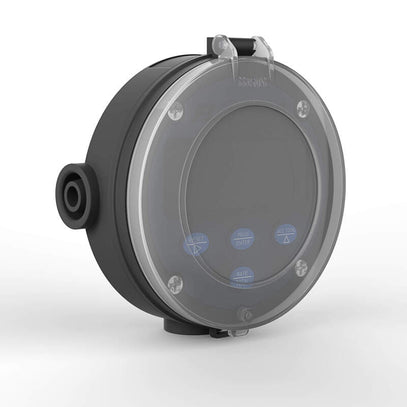

Easily program your desired batch volume and let the controller do the rest. The bright, backlit 6-digit display provides clear visibility, even in challenging
environments.
With a weather-resistant IP66/67 and NEMA4X enclosure, you can trust the EB40 Batch controller to perform reliably, indoors or out. Retain your settings, ensuring consistent operation even after a power loss.
