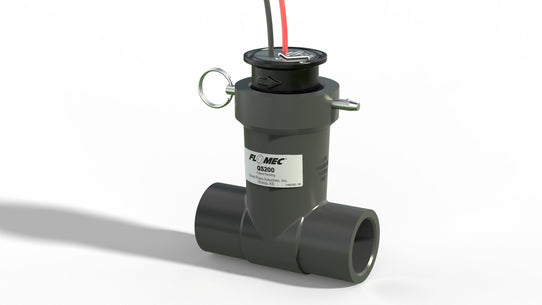

Flomec QS200 Ultrasonic Irrigation Flow Sensor
TF:
002703-HW-FLOMEC-003
Overview
The QS200 Insertion Ultrasonic Flowmeter provides an accurate reading of liquid flow rate and accumulated flow. Designed to support commercial irrigation applications, the QS200 is available in five pipe sizes, ranging from 1 to 4 inches, and is available with a PVC tee or "insert retrofit" for replacement of existing paddlewheel flow sensors.
- Extended leak detection down to 0.03 m/s
- No moving mechanical parts for low maintenance and superior low flow detection
- High accuracy: ± 2.0% of reading (compared to full-scale accuracy)
- Low cost, effective and easy installation
- Available in 5 pipe sizes, ranging from 1 in. – 4 in.
- Available with a PVC tee or as an “insert retrofit” for replacement of some existing paddle wheel flow sensors
- Technology: Ultrasonic
- Flow Range: 0.03 to 4.6 m/s
- Accuracy: ± 2%
- Pressure Rating: 14 bar (203 psi)
- Operating Temperature Range: 0° C - 60° C
- Output Frequency: 0 to 100 Hz
- Power: Supply Voltage: 7.5V (dc) min. to 36V (dc) max Quiescent Current: 200 μA (typical)
The QS200's patented Transit Time Technology means there are no moving parts to wear out and low maintenance. Long-term stability and a high-resolution measurement range make it possible not only to measure water usage but also to monitor leak detection across your irrigation system.
