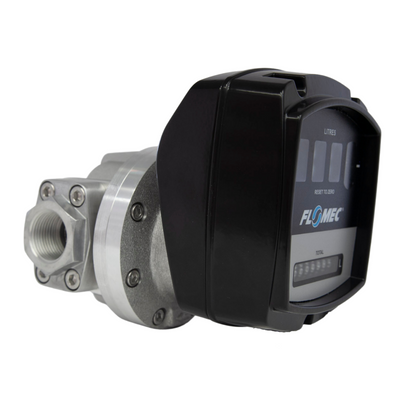

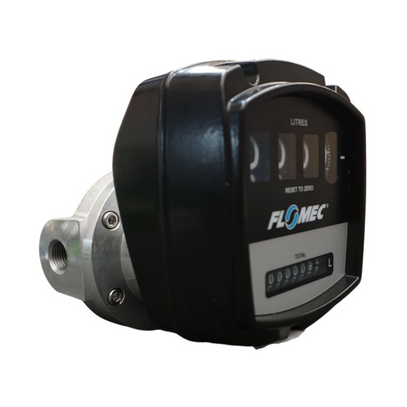

Flomec OM Series Flow Meter with Mechanical Display | 3" - 4" (35 L/min - 1500 L/min)
002717-HW-FLOMEC-017
Overview
The FLOMEC® Large Capacity OM Series Mechanical Meters excel at accurately measuring fuels and lubricants, ensuring reliable performance with clean liquids of various viscosities.
The medium-capacity OM Series stands out for its low pressure drop, making it an ideal choice for a wide range of liquid transfer or dispensing applications, whether the flow is pumped or gravity-fed.
- Accuracy ± 1% of reading
- Repeatability typically ± 0.03% of reading
- Flows from 35 L/min. – 1500L/min
- Sizes 3” – 4” (80mm-100mm) Pipe Sizes
- High accuracy and repeatability, direct volumetric reading
- No requirement for flow conditioning (straight pipe runs)
- Only two moving parts means less maintenance and better reliability
- Factory calibrated
- Technology: Oval Gear
- Flow Range: 35 - 1500 L/min (Size Dependant)
- Accuracy: ± 1%
- Repeatability: ± 0.03%
- Pressure Rating: 10 - 12 bar (145 - 175 psi) Size Depedant
- Operating Temperature Range: -15° C - 80° C
Benefiting from simple yet proven positive displacement technology, the OM Series meters eliminate the need for flow conditioning (straight pipe runs), making them suitable for compact installations. This technology ensures trouble-free operation without compromising accuracy.
With a rugged mechanical display, these meters offer the advantages of easy installation and usability in remote areas or locations without power.
