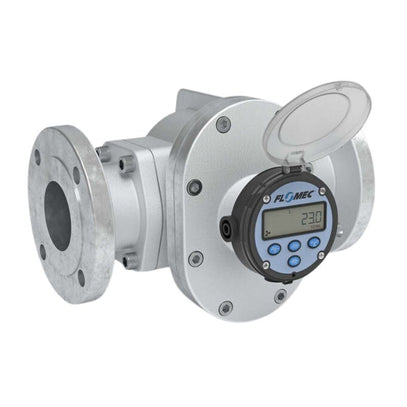

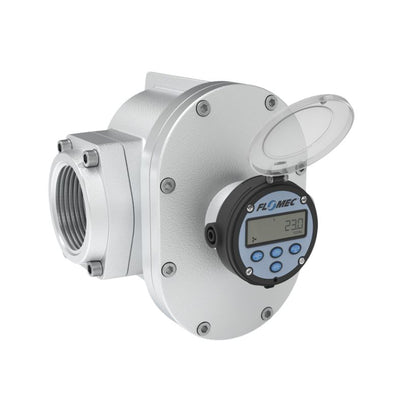

Flomec OM Series Flow Meter with Display and Outputs | 3" - 4" (35 L/min - 2500 L/min)
002719-HW-FLOMEC-019
Overview
Introducing the Large Capacity OM Series Flow Meter with Display—a rugged and reliable solution designed for precision liquid measurement in diverse applications. This robust meter excels in scenarios requiring exceptional accuracy, boasting a flow range from 35 L/min to 2500 L/min with an impressive ± 0.2% reading precision. Whether you're handling bulk diesel fuel transfers or lubricating oils and greases, the OM Series ensures consistent and reliable measurements, providing a solid foundation for decision-making.
- Accuracy of ± 0.2% of reading
- Repeatability typically ± 0.03% of reading
- Flows from 35 L/min. – 2500L/min
- Sizes 3” – 4” (80mm-100mm) Pipe Sizes
- High accuracy and repeatability, direct volumetric reading
- No requirement for flow conditioning (straight pipe runs)
- Only two moving parts means less maintenance and better reliability
- Factory calibrated
- Technology: Oval Gear
- Flow Range: 35 - 2500 L/min (Size Dependant)
- Accuracy: ± 0.2%
- Repeatability: ± 0.03%
- Pressure Rating: 10 - 12 bar (145 - 175 psi) Size Depedant
- Operating Temperature Range: -40° C - 80° C
The OM Series Flow Meter Pulse Out stands out for its impressive accuracy, with an outstanding ±0.2% reading accuracy. This precision guarantees the reliability of each measurement, enhancing the efficiency and success of your processes. The OM is equipped with an RT14 flow rate totaliser, capable of connecting with external control and monitoring devices (PLC, SCADA, DCS) through scaled pulse, 4–20 mA (loop-powered) output, or flow alarms.
Our OM Series flow meters for fuels and oils are constructed with aluminium body material, PPS rotors (Aluminium in the OM100E), and Viton O-rings and are engineered to endure the rigors of industrial use, ensuring consistent and accurate measurements over time. This robust construction minimises downtime, instilling confidence in operations that demand precision and dependability.
