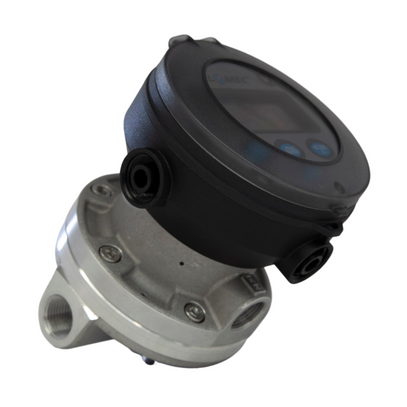

Flomec OM Series Flow Meter with Display and Outputs | 1/2" - 2" (1 L/min - 450 L/min)
002715-HW-FLOMEC-015
Overview
Introducing the OM Series Flow Meter Medium Capacity with display and outputs, a versatile solution for liquid transfer and dispensing applications. With a flow range from 1 L/min to 450 L/min, these precision-engineered meters offer accurate measurements across a spectrum of flow rates. Exceptional accuracy at ± 0.2% of reading ensures confidence in critical applications, preventing financial loss and maintaining product quality.
- Accuracy of ± 0.2% of reading
- Repeatability typically ± 0.03% of reading
- Flows from 1 L/min. – 450L/min.
- Sizes 1/2” – 2” (15mm-50mm) Pipe Sizes
- High accuracy and repeatability, direct volumetric reading
- No requirement for flow conditioning (straight pipe runs)
- Only two moving parts means less maintenance and better reliability
- Factory calibrated
- Technology: Oval Gear
- Flow Range: 1 - 450 L/min (Size Dependant)
- Accuracy: ± 0.2%
- Repeatability: ± 0.03%
- Pressure Rating: 20 - 68 bar (285 - 990 psi) Size Depedant
- Operating Temperature Range: -40° C - 80° C (max 80°c with display)
Engineered for adaptability, the OM Series handles high-viscosity fluids with ease, making it ideal for substances like lubricating oils and grease. Its low-pressure drop design ensures efficient liquid transfer without compromising overall system performance. The meter's robust construction ensures durability in demanding environments, providing a reliable, long-term solution for various industries.
Crafted with an aluminum body, PPS rotors, and Viton O-rings, the OM Series ensures durability and performance. Going beyond basic measurement, the meter is equipped with an RT14 flow rate totaliser that seamlessly interfaces with external control and monitoring equipment like PLCs, SCADA, and DCS. This is achieved through versatile outputs, including scaled pulse, 4-20mA (Loop Powered) Output, or flow alarms.
