Flomec 01N Series Water Flow Meter
TF:
002701-HW-FLOMEC-001
Overview

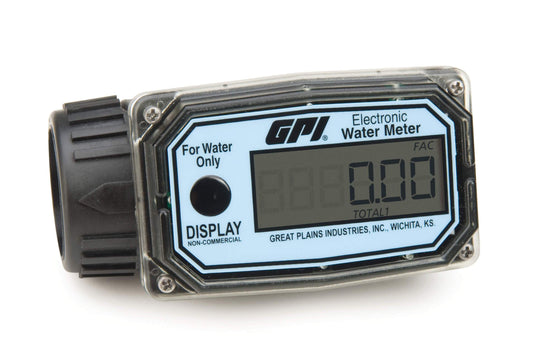

The in-line design of the 01N Series water flow meter allows for simple mounting on the end of a hose or pipe and comes complete with a turbine assembly, microprocessor, and LCD readout. The simple, small, and sturdy water flow meter is constructed with a rugged nylon housing, making it the economical choice.
- Turbine technology means accurate measurement for low viscosity liquids, ideal for water flow measurement.
- Nylon construction makes this water flow meter a rugged and economical choice.
- 1 inch / 25mm water flow meter size allows for connection with commonly found fittings and application equipment, in particular domestic water metering.
- 10-100 LPM flow range is versatile enough for any installation and allows for gravity fed applications.
- Accuracy ±5.0%
- Technology: Turbine
- Flowrate: 11 - 113 L/min
- Accuracy: ± 5.0%
- Repeatability: ± 0.5%
- Pressure Rating: 10.3 bar (150 psi)
- Operating Temperature Range: -10° C - 54° C
The GPI/Flomec 01N Series is a lightweight, durable 1-inch nylon turbine meter designed for accurate (5% or 2.5%) monitoring of water, light chemicals, and AdBlue. It features an LCD display with factory calibration for liters or gallons, designed for in-line or end-of-hose, 10–100 LPM (3–30 GPM) applications.
