Epson DS-790WN - document scanner - desktop - USB 3.0, Gigabit LAN, USB 2.0 (Host)
-
NG # 2400-HW-HW-Epson-002
-
MF # B11B265201
Manufactured by:
Specification
General
Type
Document scanner - desktop
Interface Type
USB 3.0, Gigabit LAN, USB 2.0 (Host)
Max Supported Document Size
8.5 in x 240 in
Scanner
Input Type
Color
Grayscale Depth
30-bit color
Grayscale Depth (External)
24-bit (16.7 million colors)
Optical Resolution
600 dpi x 600 dpi
Interpolated Resolution
1200 dpi x 1200 dpi
Scan Mode
Single-pass
Automatic Duplexing
Yes
Scanning Sensor Type
Contact Image Sensor (CIS)
Lamp / Light Source Type
3-color RGB LED
Max Document Scan Speed B/W
45 ppm
Max Document Scan Speed Color
45 ppm
Duty Cycle
7000 scans per day
Scanner Speed Details
45 ppm - black&white - 300 dpi ¦ 45 ppm - color - 300 dpi
Scanner Features
4.3" touch screen LCD display
Compliant Standards
TWAIN, ISIS
Media Handling
Supported Document Type
Plain paper, plastic card
Document Feeder Type
Automatic
Feeder Capacity
100 sheets
Expansion / Connectivity
Interfaces Details
USB 3.0 ¦ Gigabit LAN ¦ USB 2.0 (Host)
Miscellaneous
Cables Included
1 x SuperSpeed USB cable
Compliant Standards
RoHS
Environmental Standards
ENERGY STAR Certified
Yes
Power
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50 - 60 Hz)
Power Consumption Operational (Standby)
15 Watt
Power Consumption Stand by
5.3 Watt
Power Consumption Sleep
1.6 Watt
Software / System Requirements
Software Included
EPSON Document Capture Pro, EPSON Scan 2, OpenText Captiva ISIS
OS Required
Microsoft Windows Server 2008 R2, Microsoft Windows 2003 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2003 SP2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Apple macOS 10.12.x, Apple MacOS X 10.9.5 or later, Microsoft Windows 7 / 8 / 8.1 / 10 / 11
Dimensions & Weight
Width
11.6 in
Depth
6.6 in
Height
6.5 in
Weight
8.16 lbs
Dimensions & Weight (Shipping)
Shipping Width
14.7 in
Shipping Depth
10.6 in
Shipping Height
12.9 in
Shipping Weight
10.58 lbs
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
41 °F
Max Operating Temperature
95 °F
Humidity Range Operating
10 - 80% (non-condensing)
Description
Fast, versatile and powerful, the DS-790WN combines network connectivity, enhanced security features and PC-free scanning so you can manage your business solutions with confidence. Designed for reliability plus ease of use, the DS-790WN delivers high-quality scans up to 45 ppm/90 ipm with a peak daily duty cycle up to 7,000 sheets, one-pass duplex scanning and a high-volume 100-page ADF that accommodates business and ID cards as well as extra-long pages up to 240 inches. The intuitive 4.3-inch color LCD touchscreen allows you to access multiple jobs and email or scan to a USB drive, your network or cloud storage services without the need for a computer. Gain full control of your documents with individual user authentication via the touchscreen or an optional card reader, including customizable scan settings and access to personal usage records.

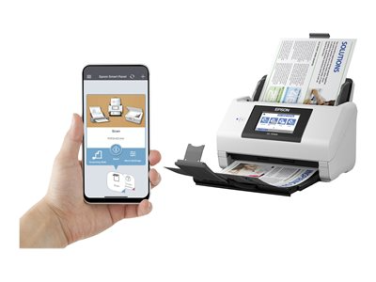

The DS-790WN enables efficient document management and integration to optimize your business - it includes both TWAIN and ISIS drivers for seamless integration with most existing enterprise software. With included OCR software, you can generate searchable PDF files as well as editable Office documents. Built-in LAN and Wi-Fi network connectivity allows for easy scanning, and you can scan with your mobile device using the Epson Smart Panel app on iOS or Android.
