POE-0402AG-60 Switch, Uplink Ports
-
NG # 006002-HW-ENS-002
Manufactured by:
This
seller generally responds in under 48 hours
Specification
| Description | Specification |
|---|---|
| Model | POE-0402AG-60 |
| Interface | 4×1Gbps PoE ports, 1×1Gbps RJ45 port, 1×1Gbps SFP port |
| Port Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x |
| Switching Bandwidth | 12Gbps |
| Packet Forwarding Rate | 8.928Mpps |
| Packet Buffer | 1Mbit |
| MAC Address Table | 2K |
| Transmission Method | Store and Forward |
| PoE Standard | IEEE802.3af (15.4W), IEEE802.3at (30W) |
| PoE Port Output Voltage | DC 44–57V |
| PoE Ports | Port 1: HiPoE 60W; Ports 2–4: <30W |
| PoE Power Budget | 60W |
| Power Supply | AC 100–240V 50/60Hz; DC 52V 1.25A |
| Mainboard Power Consumption | 3.7W |
| Product Dimensions | 200×118×44mm |
| Packaging Dimensions | 245×190×60mm |
| Product Net Weight | 0.63kg |
| Product Gross Weight | 0.93kg |
| Carton Dimensions | 520×320×400mm |
| Packing Quantity | 20pcs |
| Packing Weight | 19.6kg |
| Package Contents | Switch ×1, Power Cord ×1, Manual ×1, Certificate of Inspection ×1 |
| Fan Quantity | 0 |
| Installation | Desktop |
| Surge Protection | Port Surge: Common mode 4KV |
| Electrostatic Protection (ESD) | Air: 8KV, Contact: 6KV |
| Operating Temperature | 0–40°C |
| Storage Temperature | -40–70°C |
| Operating Humidity | 10%–90% (non-condensing) |
| Storage Humidity | 5%–95% (non-condensing) |
| LED Indicators | PWR (Green): On – Power on, Off – Power offMode (Green): On – VLAN, Flashing – Extend, Off – DefaultPorts 1–6 (Green): On – Link normal, Flashing – Data transmitting, Off – Link blocked |
| Modes | VLAN: Ports 1–4 isolated, communicate with Ports 5–6, PoE watchdog activeDefault: All ports communicate, 100m range, PoE watchdog offExtend: Ports 3–4 10Mbps, 250m range, PoE watchdog active |
Description

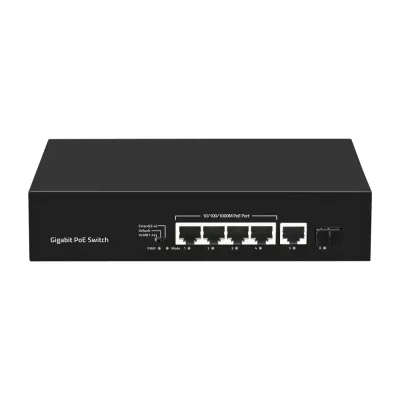

The POE-0402AG-60 is a 6-port Gigabit PoE switch featuring 4 PoE ports, 1 RJ45 uplink, and 1 SFP uplink. It supports IEEE 802.3af/at standards with a 60 W total PoE budget and 60 W Hi-PoE on Port 1. Compact, fanless, and reliable, it offers VLAN, Default, and Extend modes for flexible, long-distance, and stable network performance.
