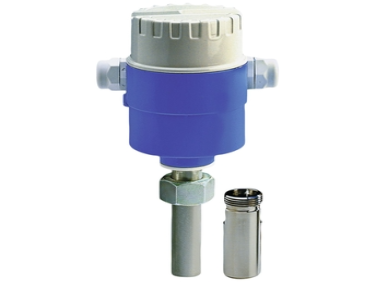

Endress+Hauser Magphant electromagnetic flowmeter
007114-HW-ENDRESS-014
Overview
The Magphant is a compact and cost-effective magnetic limit switch designed specifically for reliable flow monitoring in water and utility applications. With high repeatability and stable performance, it ensures dependable flow information that supports safe and efficient plant operations. Built without moving parts and requiring no maintenance, it provides long-lasting functionality while eliminating pressure loss thanks to its unobstructed measuring section. Simple full-scale adjustment via potentiometer and integrated electronic self-testing make the device easy to operate and highly trustworthy in daily use.
Measuring principle
Electromagnetic
Product headline
.
Sensor features
High plant availability – reliable flow information. Energy-saving flow measurement – no pressure loss due to cross section constriction. Maintenance-free – no moving parts. Compact, space-saving design. Nominal diameter: DN 15 to 2000 (½ to 80").
Transmitter features
Process safety – device self-monitoring and reliable monitoring even with empty piping. Product safety – integrated testing to check correct functioning of the electronics. Easy operation – potentiometer setting of full-scale value. Switch point setting via rotary switch. Current output and relay output.
Nominal diameter range
DN15 to DN2000
1/2" to 80"
Wetted materials
1.4435/316L
Measured variables
Volume flow
Max. measurement error
2%
Measuring range
0 to 56'550 m3/h
Max. process pressure
0 to 16 bar abs
Medium temperature range
-20 to +120°C
(-4 to +248°F)
Ambient temperature range
-20...60 °C (-4 to 140°F)
Sensor housing material
Die-cast aluminium, epoxy powder coated
Degree of protection
IP 66 / NEMA 4X / Type 4X
Display/Operation
Test function
Outputs
4 to 20 mA
Relay
Inputs
None
Power supply
24 V DC (20...30 V DC)
Hazardous area approvals
FM
CSA
Product safety
CE, EAC
Engineered for utilities and general water processes, the Magphant delivers accurate and energy-efficient flow measurement suitable for a wide range of installations. Its robust self-monitoring concept ensures process safety, including secure operation even when piping runs empty. The device enhances plant availability through reliable flow detection while minimizing operational expenses due to its maintenance-free design. With straightforward configuration and proven magnetic-inductive measurement, the Magphant provides a universal, user-friendly, and dependable flow monitoring solution for essential water applications.
