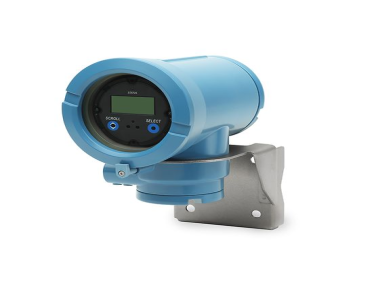

Micro Motion 1700 and 2700 Field and Integral Mount Transmitter
-
NG # 01212-HW-EMA-012
-
MF # 01212-HW-EMA-012
Manufactured by:
Specification
Housing
Polyurethane-paintedcast aluminum or stainless steel; NEMA 4X (IP66)
Weight
Painted aluminum, 4-wire remote:
- with display: 8 lb (4 kg)
- without display: 7 lb (3kg)
Painted aluminum, 9-wire remote:
- with display: 14 lb (6 kg)
- without display: 13 lb (6 kg)
Stainless steel, 4-wire remote:
- with display: 21 lb (10 kg)
- without display: 20 lb (9 kg)
View product data sheet for full details.
Mounting
Integralor remote mounting options (stainless steel versions are remote mount only)Maybe remotely connected to any 4-wire or 9-wire Micro Motion sensorView product data sheet for full details.
Available Outputs
1700: mA w/ Bell 202 HART FO/DO RS485 HART and Modbus
2700:
Analog: mA w/ Bell 202 HART FO/DO RS485 HART and Modbus
Configurable I/O: mA w/Bell 202 HART configurable to mA, FO, or DO (default mA)configurable to FO, DO, orDI (default FO)
View product data sheet for full details.
Description
Powered by MVD Technology, these versatile field-mount transmitters are built with an advanced architecture and provide a wide variety of I / O and application flexibilities, making them the top choice for compact integral mounting.
